Northern Radiator Radiator 205087

Brand: Northern Radiator Northern Radiator
  • Have a product question? Ask us
  • Part Number: 205087
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 24
Retail: $733.94
Price: $698.99
You Save: $34.95
Color
Silver
Core Depth (IN)
2-1/4 Inch
Core Height (IN)
20-1/2 Inch
Core Length (IN)
17-3/8 Inch
Core Material
Aluminum
Core Rows
2 Rows Of 1 Inch Tubes
Flow Direction
Downflow
Includes Fittings
No
Includes Mounting Hardware
No
Inlet Hose Location
OEM
Inlet Size (IN)
1-1/4 Inch
Share this page

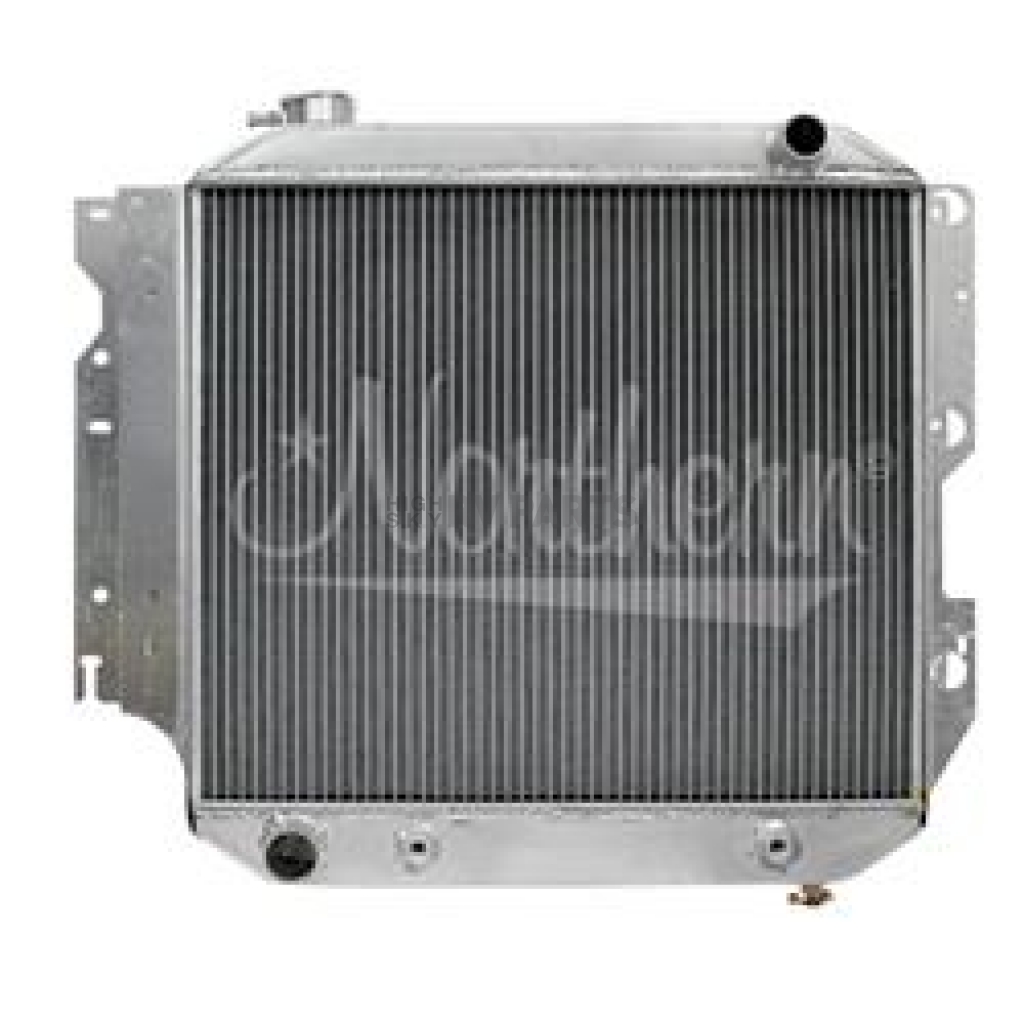

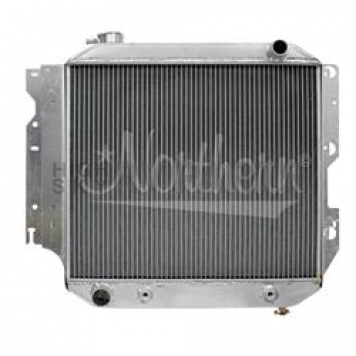

Northern Radiator Radiator

Radiator; Muscle Car; Overall Dimensions 21 Inch Width x 21 Inch Height x 3-1/8 Inch Depth; Core Dimensions 17-3/8 Inch Width x 20-1/2 Inch Height x 2-1/4 Inch Depth; 2 Rows Of 1 Inch Tubes; Downflow; Aluminum; 1-1/4 Inch Inlet x 1-1/2 Inch Outlet; With 7 Plate Aluminum Transmission Cooler With 5/16 Inch Inverted Flare Fittings

MPN: 205087

When you want quality and dependability, you want Northern Radiator! From hobby and restoration to high performance racing, Northern Radiator has you covered. The most complete all makes/all models program in the industry.
Flow Direction: Downflow
Overall Length (IN): 21 Inch
Overall Height (IN): 21 Inch
Overall Depth (IN): 3-1/8 Inch
Core Rows: 2 Rows Of 1 Inch Tubes
Core Length (IN): 17-3/8 Inch
Core Height (IN): 20-1/2 Inch
Core Depth (IN): 2-1/4 Inch
Core Material: Aluminum
Inlet Hose Location: OEM
Inlet Size (IN): 1-1/4 Inch
Outlet Hose Location: OEM
Outlet Size (IN): 1-1/2 Inch
Color: Silver
Tank Material: Aluminum
With Radiator Cap: No
With Transmission Cooler: Yes
With Engine Oil Cooler: No
Includes Fittings: No
Includes Mounting Hardware: No

Please refer the Technical Bulletins attached to the Product Manual tab

Features

  • Core Has 2 Rows Of 1 Inch Tubes
  • Features 7 Plate Aluminum High Performance Transmission Cooler
  • Machined Billet Aluminum SAE Compliant Filler Neck
  • Features Northern Radiator Cooling Technology
  • Lighter Than Copper Or Brass, But Provides Up To 75 Percent More Cooling Capacity
  • Thick Hose Connection For Durable, No Leak Plumbing
  • Application(Vehicle) Specific Design For Maximum Cooling
  • All Welded Construction
  • 75+ Models Cover Hundreds Of Truck And Passenger Application
  • Limited 1 Year Warranty
Specifications of Northern Radiator Radiator 205087
Color Silver
Core Depth (IN) 2-1/4 Inch
Core Height (IN) 20-1/2 Inch
Core Length (IN) 17-3/8 Inch
Core Material Aluminum
Core Rows 2 Rows Of 1 Inch Tubes
Flow Direction Downflow
Includes Fittings No
Includes Mounting Hardware No
Inlet Hose Location OEM
Inlet Size (IN) 1-1/4 Inch
Outlet Hose Location OEM
Outlet Size (IN) 1-1/2 Inch
Overall Depth (IN) 3-1/8 Inch
Overall Height (IN) 21 Inch
Overall Length (IN) 21 Inch
Tank Material Aluminum
With Engine Oil Cooler No
With Radiator Cap No
With Transmission Cooler Yes

1997 Jeep Wrangler TJ
1998 Jeep Wrangler TJ
1999 Jeep Wrangler TJ
2000 Jeep Wrangler TJ
2001 Jeep Wrangler TJ
2002 Jeep Wrangler TJ
2003 Jeep Wrangler TJ
2004 Jeep Wrangler TJ
2005 Jeep Wrangler TJ
2006 Jeep Wrangler TJ

1992 Jeep Wrangler YJ
1993 Jeep Wrangler YJ
1994 Jeep Wrangler YJ
1995 Jeep Wrangler YJ
