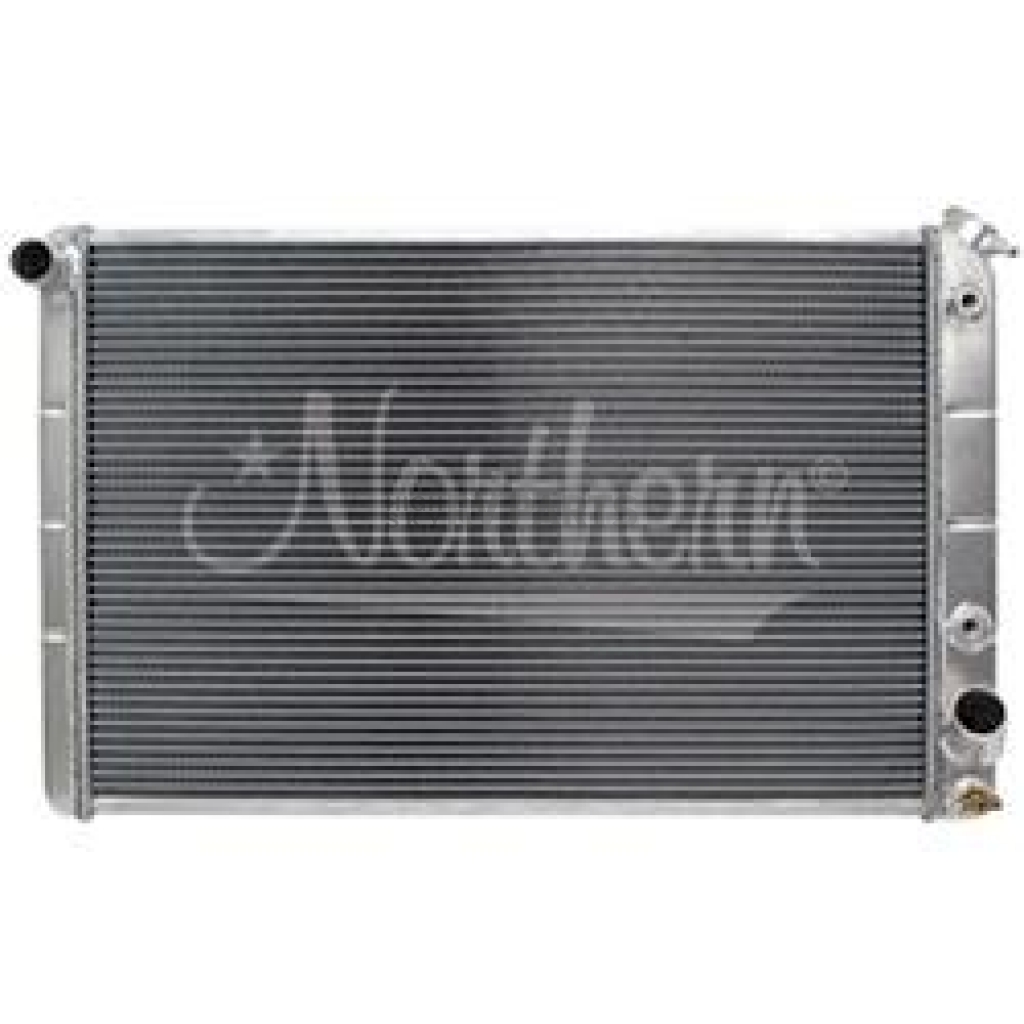

Northern Radiator Radiator 205066
Northern Radiator Radiator
Radiator; Muscle Car; Overall Dimensions 29-7/8 Inch Width x 18-1/2 Inch Height x 3-1/8 Inch Depth; Core Dimensions 26 Inch Width x 17-1/4 Inch Height x 2-1/4 Inch Depth; 2 Rows Of 1 Inch Tubes; Crossflow; Aluminum; 1-1/4 Inch Inlet x 1-1/2 Inch Outlet; With 7 Plate Aluminum Transmission Cooler With 5/16 Inch Inverted Flare Fittings
MPN: 205066
Please refer the Technical Bulletins attached to the Product Manual tab
Features
- Core Has 2 Rows Of 1 Inch Tubes
- Features 7 Plate Aluminum High Performance Transmission Cooler
- Machined Billet Aluminum SAE Compliant Filler Neck
- Features Northern Radiator Cooling Technology
- Lighter Than Copper Or Brass, But Provides Up To 75 Percent More Cooling Capacity
- Thick Hose Connection For Durable, No Leak Plumbing
- Application(Vehicle) Specific Design For Maximum Cooling
- All Welded Construction
- 75+ Models Cover Hundreds Of Truck And Passenger Application
- Limited 1 Year Warranty
Specifications of Northern Radiator Radiator 205066 | |
Color | Silver |
Core Depth (IN) | 2-1/4 Inch |
Core Height (IN) | 17-1/4 Inch |
Core Length (IN) | 26 Inch |
Core Material | Aluminum |
Core Rows | 2 Rows Of 1 Inch Tubes |
Flow Direction | Crossflow |
Includes Fittings | No |
Includes Mounting Hardware | No |
Inlet Hose Location | OEM |
Inlet Size (IN) | 1-1/4 Inch |
Outlet Hose Location | OEM |
Outlet Size (IN) | 1-1/2 Inch |
Overall Depth (IN) | 3-1/8 Inch |
Overall Height (IN) | 18-1/2 Inch |
Overall Length (IN) | 29-7/8 Inch |
Tank Material | Aluminum |
With Engine Oil Cooler | No |
With Radiator Cap | No |
With Transmission Cooler | Yes |
1978 Chevrolet Corvette
1979 Chevrolet Corvette
1980 Chevrolet Corvette
1981 Chevrolet Corvette
1982 Chevrolet Corvette
