Northern Radiator Radiator 205062

Authorized Dealer
Brand: Northern Radiator Northern Radiator
0 reviews
  • Have a product question? Ask us
  • Part Number: 205062
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 24
Retail: $622.64
Price: $592.99
You Save: $29.65
Color
Silver
Core Depth (IN)
2-1/4 Inch
Core Height (IN)
17-3/8 Inch
Core Length (IN)
26-1/8 Inch
Core Material
Aluminum
Core Rows
2 Rows Of 1 Inch Tubes
Flow Direction
Crossflow
Includes Fittings
No
Includes Mounting Hardware
No
Inlet Hose Location
OEM
Inlet Size (IN)
1-5/16 Inch And 1-1/2 Inch
Share this page

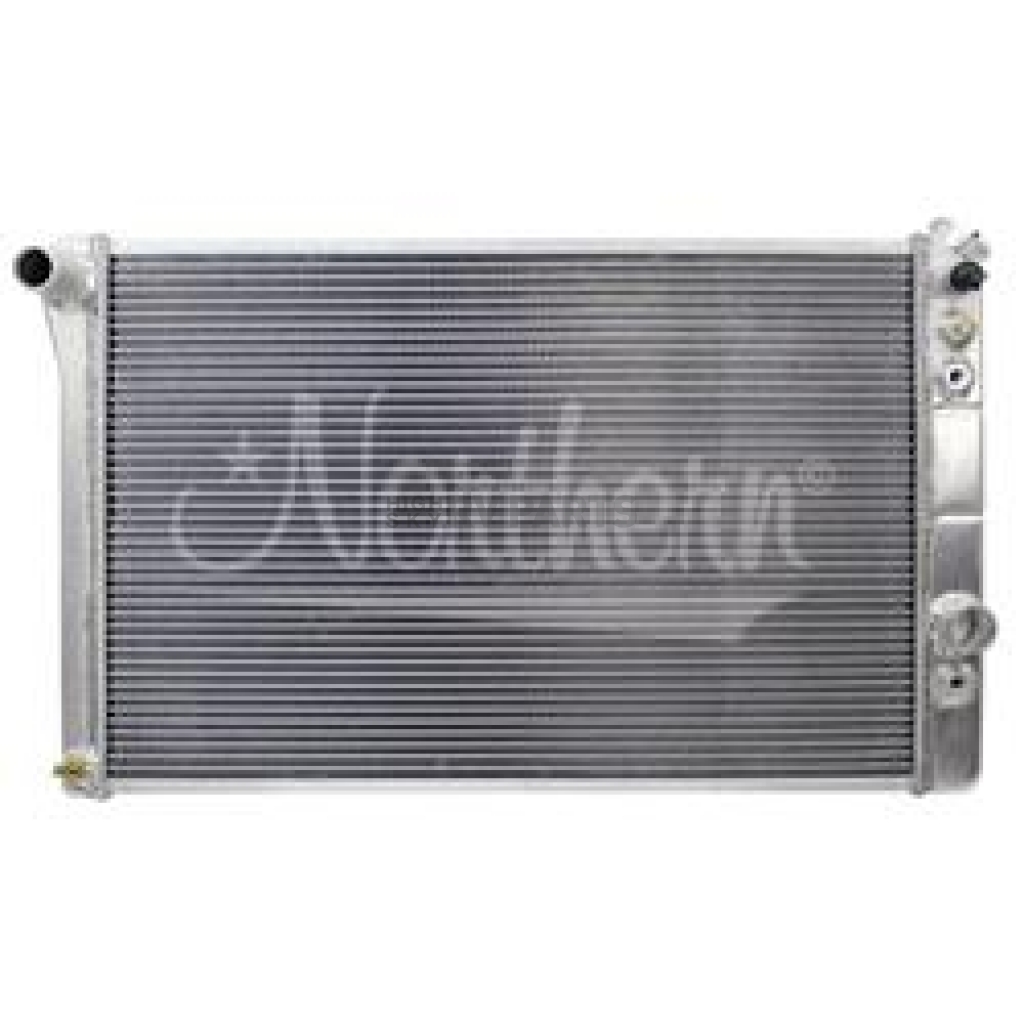

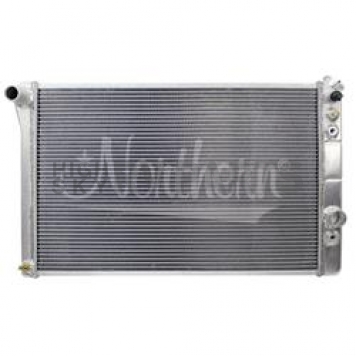

Northern Radiator Radiator

Radiator; Muscle Car; Overall Dimensions 30-5/8 Inch Width x 18-1/2 Inch Height x 3-1/8 Inch Depth; Core Dimensions 26-1/8 Inch Width x 17-3/8 Inch Height x 2-1/4 Inch Depth; 2 Rows Of 1 Inch Tubes; Crossflow; Aluminum; 1-5/16 Inch Inlet And 1-1/2 Inch Inlet x 1-1/2 Inch Outlet; With 7 Plate Aluminum Transmission Cooler With 5/16 Inch Inverted Flare Fittings

MPN: 205062

When you want quality and dependability, you want Northern Radiator! From hobby and restoration to high performance racing, Northern Radiator has you covered. The most complete all makes/all models program in the industry.
Flow Direction: Crossflow
Overall Length (IN): 30-5/8 Inch
Overall Height (IN): 18-1/2 Inch
Overall Depth (IN): 3-1/8 Inch
Core Rows: 2 Rows Of 1 Inch Tubes
Core Length (IN): 26-1/8 Inch
Core Height (IN): 17-3/8 Inch
Core Depth (IN): 2-1/4 Inch
Core Material: Aluminum
Inlet Hose Location: OEM
Inlet Size (IN): 1-5/16 Inch And 1-1/2 Inch
Outlet Hose Location: OEM
Outlet Size (IN): 1-1/2 Inch
Color: Silver
Tank Material: Aluminum
With Radiator Cap: No
With Transmission Cooler: Yes
With Engine Oil Cooler: No
Includes Fittings: No
Includes Mounting Hardware: No

Please refer the Technical Bulletins attached to the Product Manual tab

Features

  • Core Has 2 Rows Of 1 Inch Tubes
  • Features 7 Plate Aluminum High Performance Transmission Cooler
  • Machined Billet Aluminum SAE Compliant Filler Neck
  • Features Northern Radiator Cooling Technology
  • Lighter Than Copper Or Brass, But Provides Up To 75 Percent More Cooling Capacity
  • Thick Hose Connection For Durable, No Leak Plumbing
  • Application(Vehicle) Specific Design For Maximum Cooling
  • All Welded Construction
  • 75+ Models Cover Hundreds Of Truck And Passenger Application
  • Limited 1 Year Warranty
Specifications of Northern Radiator Radiator 205062
Color Silver
Core Depth (IN) 2-1/4 Inch
Core Height (IN) 17-3/8 Inch
Core Length (IN) 26-1/8 Inch
Core Material Aluminum
Core Rows 2 Rows Of 1 Inch Tubes
Flow Direction Crossflow
Includes Fittings No
Includes Mounting Hardware No
Inlet Hose Location OEM
Inlet Size (IN) 1-5/16 Inch And 1-1/2 Inch
Outlet Hose Location OEM
Outlet Size (IN) 1-1/2 Inch
Overall Depth (IN) 3-1/8 Inch
Overall Height (IN) 18-1/2 Inch
Overall Length (IN) 30-5/8 Inch
Tank Material Aluminum
With Engine Oil Cooler No
With Radiator Cap No
With Transmission Cooler Yes

1982 Chevrolet Camaro
1983 Chevrolet Camaro
1984 Chevrolet Camaro
1985 Chevrolet Camaro
1986 Chevrolet Camaro
1987 Chevrolet Camaro
1988 Chevrolet Camaro
1989 Chevrolet Camaro
1990 Chevrolet Camaro
1991 Chevrolet Camaro
1992 Chevrolet Camaro

1989 Chevrolet P20

1989 Chevrolet P30
1990 Chevrolet P30

1989 GMC P2500

1989 GMC P3500
1990 GMC P3500

1982 Pontiac Firebird
1983 Pontiac Firebird
1984 Pontiac Firebird
1985 Pontiac Firebird
1986 Pontiac Firebird
1987 Pontiac Firebird
1988 Pontiac Firebird
1989 Pontiac Firebird
1990 Pontiac Firebird
1991 Pontiac Firebird
1992 Pontiac Firebird
