MSD Ignition Spark Plug Wire Set 32813
Assembled
Yes
Color
Black
Conductor Type
Copper Alloy With Ferro Magnetic Impregnated Center Core
Diameter (MM)
8.5 Millimeter
Distributor Boot Material
Silicone and Synthetic
Distributor Terminal Ends
45 Degree LS1
Number Of Wires
8
RFI Suppression
No
Spark Plug Boot Ends
Straight
Spark Plug Boot Material
Silicone and Synthetic
Wire Material
Silicone and Synthetic
Share this page

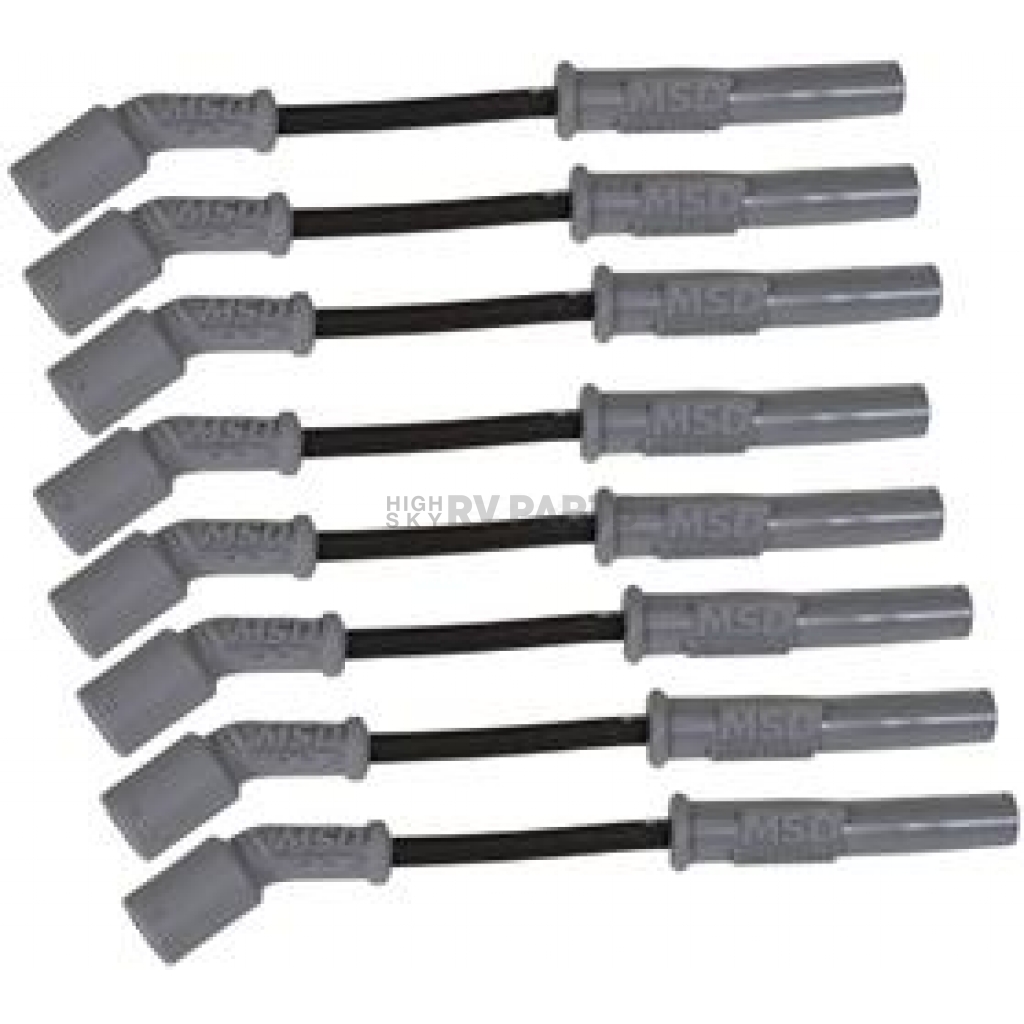

MSD Ignition Spark Plug Wire Set
Spark Plug Wire Set; Super Conductor; Pre Assembled; Black; 8-1/2 Millimeter; Silicone and Synthetic; Helically Wound Copper Alloy Conductor With Ferro-Magnetic Impregnated Center Core; Straight Spark Plug Boots; 45 Degree LS1 Coil Boot; 40 - 50 Ohms Per Foot Resistance
MPN: 32813
The MSD 8.5 Millimeter Super Conductor® is the ultimate performance wire! Its extremely low resistance combined with the ability to suppress electro magnetic interference is a combination that defies the common laws of physics. Less resistance means more energy is going to make it to the spark plug to ignite the air/fuel mixture. The super conductor uses a copper alloy conductor resulting in less than 50 Ohms per Foot of wire! This ensures that the most energy possible makes it to the spark plug. This combination is encased in a heavy duty sleeve that will withstand abrasion and high temperatures. Cap off each end with our dual crimp terminals and you have the best wire available!
Assembled: Yes
Diameter (MM): 8.5 Millimeter
Wire Material: Silicone and Synthetic
Color: Black
Number Of Wires: 8
Distributor Boot Material: Silicone and Synthetic
Distributor Terminal Ends: 45 Degree LS1
Spark Plug Boot Material: Silicone and Synthetic
Spark Plug Boot Ends: Straight
Conductor Type: Copper Alloy With Ferro Magnetic Impregnated Center Core
Wire Resistance: 40 To 50 Ohms Per Feet Resistance
RFI Suppression: No
Features
- Copper Alloy Conductor Has A Resistance Value Of Less Than 50 Ohm Per Foot For Superior Spark
- Ferro Magnetic Impregnated Core Creates An Effective EMI Choke
- Forty Feet Of Conductor Is Wound Into A Single Foot Of Wire For High EMI Suppression
- Conductor Core Features DuPont Kevlar Material For Increased Tensile Strength
- Durable Outer Sleeve Is A Proprietary Compound For Resistance To High Heat Or Abrasion
- Limited 1 Year Warranty
| Specifications of MSD Ignition Spark Plug Wire Set 32813 | |
| Assembled | Yes |
| Color | Black |
| Conductor Type | Copper Alloy With Ferro Magnetic Impregnated Center Core |
| Diameter (MM) | 8.5 Millimeter |
| Distributor Boot Material | Silicone and Synthetic |
| Distributor Terminal Ends | 45 Degree LS1 |
| Number Of Wires | 8 |
| RFI Suppression | No |
| Spark Plug Boot Ends | Straight |
| Spark Plug Boot Material | Silicone and Synthetic |
| Wire Material | Silicone and Synthetic |
| Wire Resistance | 40 To 50 Ohms Per Feet Resistance |
1998 Chevrolet Camaro
1999 Chevrolet Camaro
2000 Chevrolet Camaro
2001 Chevrolet Camaro
2002 Chevrolet Camaro
1999 Chevrolet Camaro
2000 Chevrolet Camaro
2001 Chevrolet Camaro
2002 Chevrolet Camaro
1997 Chevrolet Corvette
1998 Chevrolet Corvette
1999 Chevrolet Corvette
2000 Chevrolet Corvette
2001 Chevrolet Corvette
2002 Chevrolet Corvette
2003 Chevrolet Corvette
2004 Chevrolet Corvette
1998 Chevrolet Corvette
1999 Chevrolet Corvette
2000 Chevrolet Corvette
2001 Chevrolet Corvette
2002 Chevrolet Corvette
2003 Chevrolet Corvette
2004 Chevrolet Corvette
2004 Pontiac GTO
