MSD Ignition Ignition Timing Controller 8975
Adjustment Style
Rotary Dial
Circuit Type
Digital
Compatibility
MSD Ignition Controls
Controller Activation Type
Programmable
Includes Wiring Harness
No
Maximum Timing Retard
20 Degree
Number Of Timing Retard Stages
4
With Engine Start Timing Retard
Yes
Share this page
MSD Ignition Ignition Timing Controller
Ignition Timing Controller; For Use With MSD Ignition Controls; With 5/10/15/20 Degree Engine Start Timing Retard; 4 Stage Timing Retard
MPN: 8975

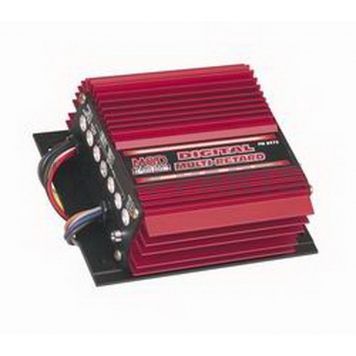

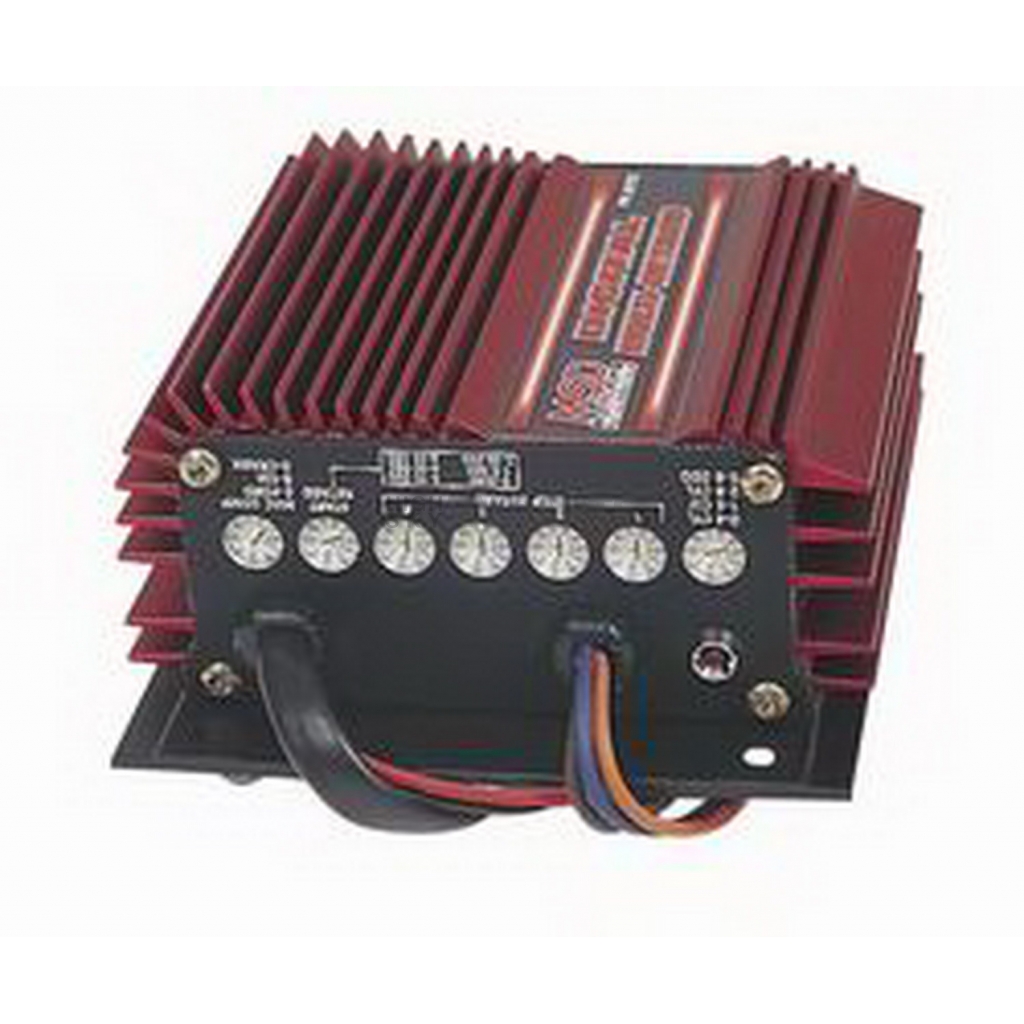

The digital multi retard provides four different stages of retard along with an adjustable start retard feature all of this with no modules! The MSD multi retard uses a high speed RISC microcontroller to direct the timing functions. This controller can make extremely quick compensations to the timing while maintaining accuracy to within 1 Degree. There is also an innovative magnetic pickup compensation circuit built-in to allow for rock steady timing with a variety of different mag pickups. There are four separate retard stages that can be activated independently or together for a total sum of retards. Each stage is adjustable from 0 Degree to 9 Degree and a maximum of 20 Degree of retard can be pulled out. On top of these great features, there is also an optional start retard circuit that can be programmed to retard the timing 5 Degree, 10 Degree, 15 Degree or 20 Degree during cranking. The digital multi retard can be used on 4, 6 or 8-cylinder engines and must be used with an MSD Ignition Control.
Compatibility: MSD Ignition Controls
Circuit Type: Digital
Controller Activation Type: Programmable
Adjustment Style: Rotary Dial
Maximum Timing Retard: 20 Degree
Number Of Timing Retard Stages: 4
With Engine Start Timing Retard: Yes
Includes Wiring Harness: No
Features
- Four Stages Of Retard
- Magnetic Pickup Compensation Circuit
- Adjustable Start Retard
- Limited 1 Year Warranty
| Specifications of MSD Ignition Ignition Timing Controller 8975 | |
| Adjustment Style | Rotary Dial |
| Circuit Type | Digital |
| Compatibility | MSD Ignition Controls |
| Controller Activation Type | Programmable |
| Includes Wiring Harness | No |
| Maximum Timing Retard | 20 Degree |
| Number Of Timing Retard Stages | 4 |
| With Engine Start Timing Retard | Yes |
