MSD Ignition Ignition Timing Controller 8970
Adjustment Style
Pills
Circuit Type
Analog
Compatibility
MSD 6/ 7/ 8/ 10 Series Ignition Controls
Controller Activation Type
Programmable
Includes Wiring Harness
No
Number Of Timing Retard Stages
3
With Engine Start Timing Retard
Yes
Share this page

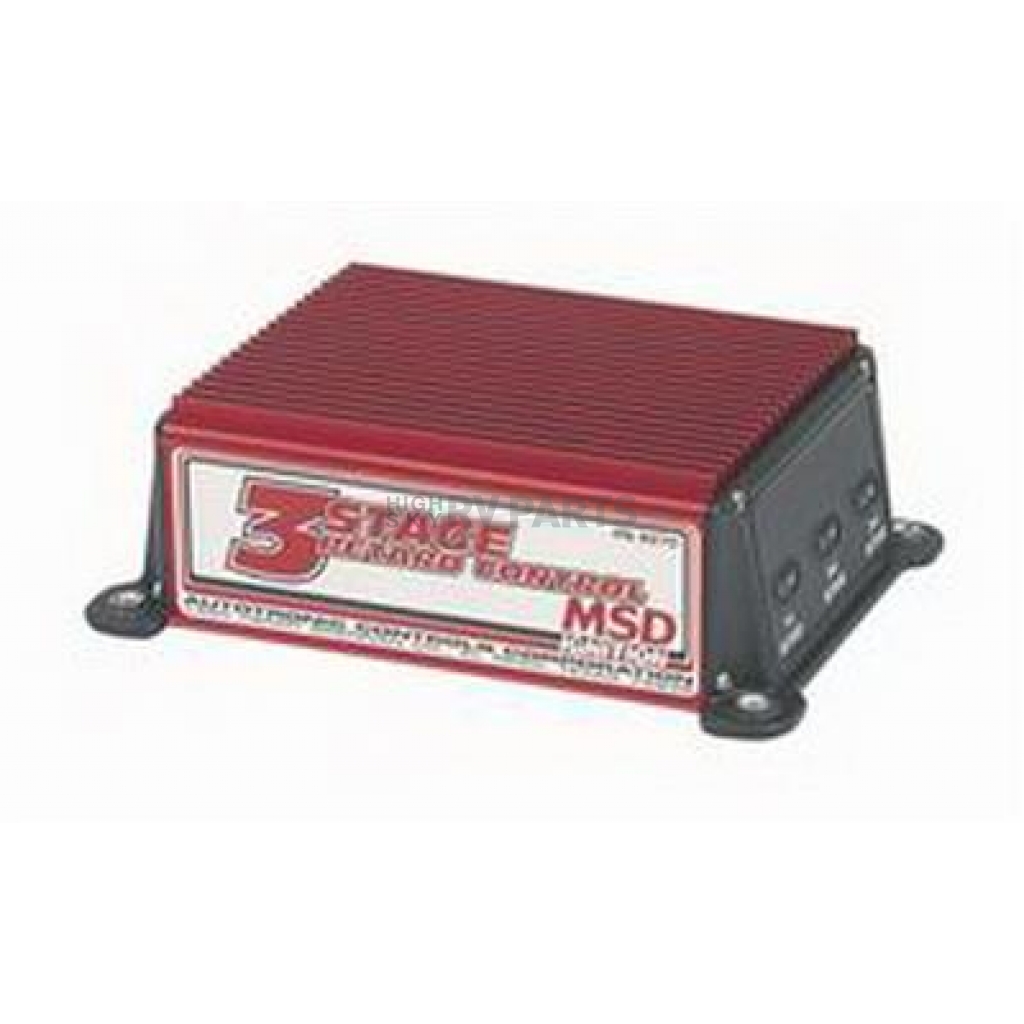

MSD Ignition Ignition Timing Controller
Ignition Timing Controller; For Use With MSD 6/7/8/10 Series Ignition Controls; With 10/25 Degree Engine Start Timing Retard; 3 Stage Timing Retard
MPN: 8970
The three stage retard control allows you to retard your ignition timing in three different stages. You can activate one retard for a nitrous stage and another at top end in high gear for more Miles Per Hour and still have another module left over for dual stage nitrous systems. When activated together, the retard amounts are cumulative so you get the total of the three. For example, if you pull 2 Degree, then 4 Degree on the second stage and another 2 Degree at top end, the total retard is 8 Degree. In addition to the individual retard stages, the three stage retard control has an optional start retard function that retards the timing 10 Degree or 25 Degree while cranking the engine. The three stage retard control connects easily to your MSD ignition and can be triggered from points, electronic ignitions, crank triggers or magnetic pickup distributors. It is supplied with a 2 Degree, 3 Degree and 4 Degree module and must be used with an MSD 6, SCI, 7, 8 or 10 series ignition.
Compatibility: MSD 6/ 7/ 8/ 10 Series Ignition Controls
Circuit Type: Analog
Controller Activation Type: Programmable
Adjustment Style: Pills
Number Of Timing Retard Stages: 3
With Engine Start Timing Retard: Yes
Includes Wiring Harness: No
Features
- Three Separate Retards
- Twenty Degree Start Retard
- Limited 1 Year Warranty
| Specifications of MSD Ignition Ignition Timing Controller 8970 | |
| Adjustment Style | Pills |
| Circuit Type | Analog |
| Compatibility | MSD 6/ 7/ 8/ 10 Series Ignition Controls |
| Controller Activation Type | Programmable |
| Includes Wiring Harness | No |
| Number Of Timing Retard Stages | 3 |
| With Engine Start Timing Retard | Yes |
