MSD Ignition Ignition Module
Ignition Module; Black
MPN: 77643

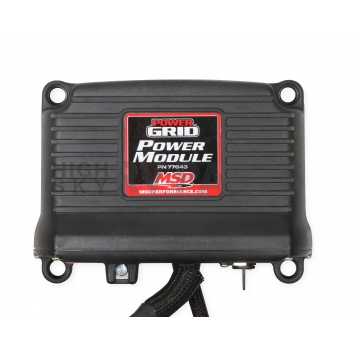

The MSD Power Module is a fully programmable, four stage solid state relay that can handle up to 20 Ampere of current per channel. The Power Module eliminates the need for electromechanical relays, fuses and timers. Outputs can be controlled independently or simultaneously, giving great flexibility. It can be configured as a digital output (i.e. ON And OFF) or as a Pulse Width Modulated output (i.e. PWM) with user-programmable frequencies up to 10 Kilohertz. Outputs can use Time, RPM or temperature to control fans, pumps, nitrous systems and much more.
Compatibility: MSD 7730 Power Grid
Features
- Takes The Place Of 4 Electromechanical Relays
- Built-In Overcurrent Protection, No Fuses Needed
- 80 Ampere Capacity, 4 Channels Rated Up To 20 Ampere Each
- Each Channel Is Controlled Via Input Wires Or As Programmed In The MSDView Software
- Can Be Used Stand Alone Or With MSD Power Grid PN 7730
- Limited 1 Year Warranty
| Specifications of MSD Ignition Ignition Module 77643 | |
| Compatibility | MSD 7730 Power Grid |
