MSD Ignition Ignition Control Module Tuner 77303
Circuit Type
Digital
Compatibility
MSD Ignition Controls/ MSD Pro Mag
Controller Activation Type
Programmable
Includes Wiring Harness
Yes
Number Of Timing Retard Stages
5
With Engine Start Timing Retard
Yes
Share this page

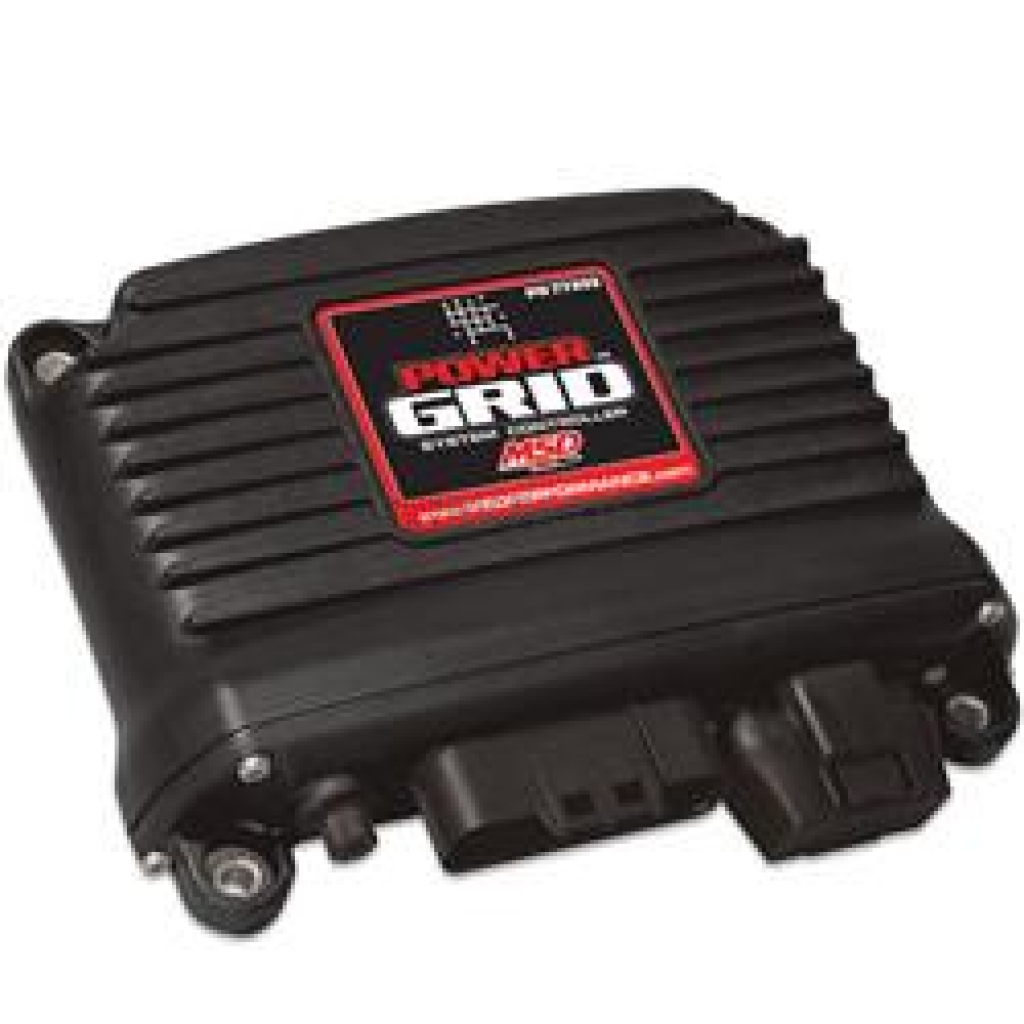

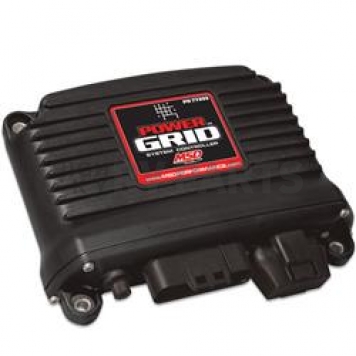

MSD Ignition Ignition Control Module Tuner
Ignition Control Module Tuner; Power Grid; For Use With MSD Ignition Controls/MSD Pro Mag; Black
MPN: 77303
The Power Grid Ignition System is the next evolution of our Programmable 7-Series Ignition Controls. The Grid incorporates an efficient 32 bit microcontroller and an all new software program, called MSD View, and is USB compatible. The Windows based software is designed with tabs to help racers easily select different programming windows and parameters. Also, the data acquisition files of the ignition are now captured on a micro SD card for ease of storage and reviewing. The Power Grid Ignition incorporates CAN-Bus technology which reduces the amount of wiring and simplifies the addition of accessory modules. The CAN-Bus is a common harness that accessory controls are connected to and easily brought into the programming library of the View Software. With this technology, racers can connect the Power Grid system directly into their Racepak Data Recorder and other Racepak products. The Power Grid Controller is the brains behind the entire system and can be used with any MSD Ignition or the Pro Mag to provide advance ignition tuning capabilities. While it is compatible with all MSD boxes, the new Power Grid System Controller has been specially designed to mount to the Power Grid-7 box. Also, this new Ignition packs higher output than the current programmable units!.
Compatibility: MSD Ignition Controls/ MSD Pro Mag
Controller Activation Type: Programmable
Circuit Type: Digital
Number Of Timing Retard Stages: 5
With Engine Start Timing Retard: Yes
Includes Wiring Harness: Yes
Features
- USB Connection For Ease Of Programming
- Timing Based On Engine RPM And Gear Value
- Advanced Individual Cylinder Timing Based On Gear Or Time
- Five Retard Stages For Nitrous
- Four Steps Of RPM Limits For Burnout, Spool, Launch And Overrev
- Output Switch Set On RPM, Pressure Or Time
- Shift Light Settings For Each Gear
- Ignition Data Acquisition Accepts Multiple Runs
- Limited 1 Year Warranty
| Specifications of MSD Ignition Ignition Control Module Tuner 77303 | |
| Circuit Type | Digital |
| Compatibility | MSD Ignition Controls/ MSD Pro Mag |
| Controller Activation Type | Programmable |
| Includes Wiring Harness | Yes |
| Number Of Timing Retard Stages | 5 |
| With Engine Start Timing Retard | Yes |
