MSD Ignition Ignition Control Module
Ignition Control Module; 7 Series; Drag Racing Use; Analog; 0-14000 RPM; With 2 Step Rev Limiter; Multiple Spark Discharge; Without Boost Retard; Not Compatible With Distributorless Systems; Black
MPN: 72223

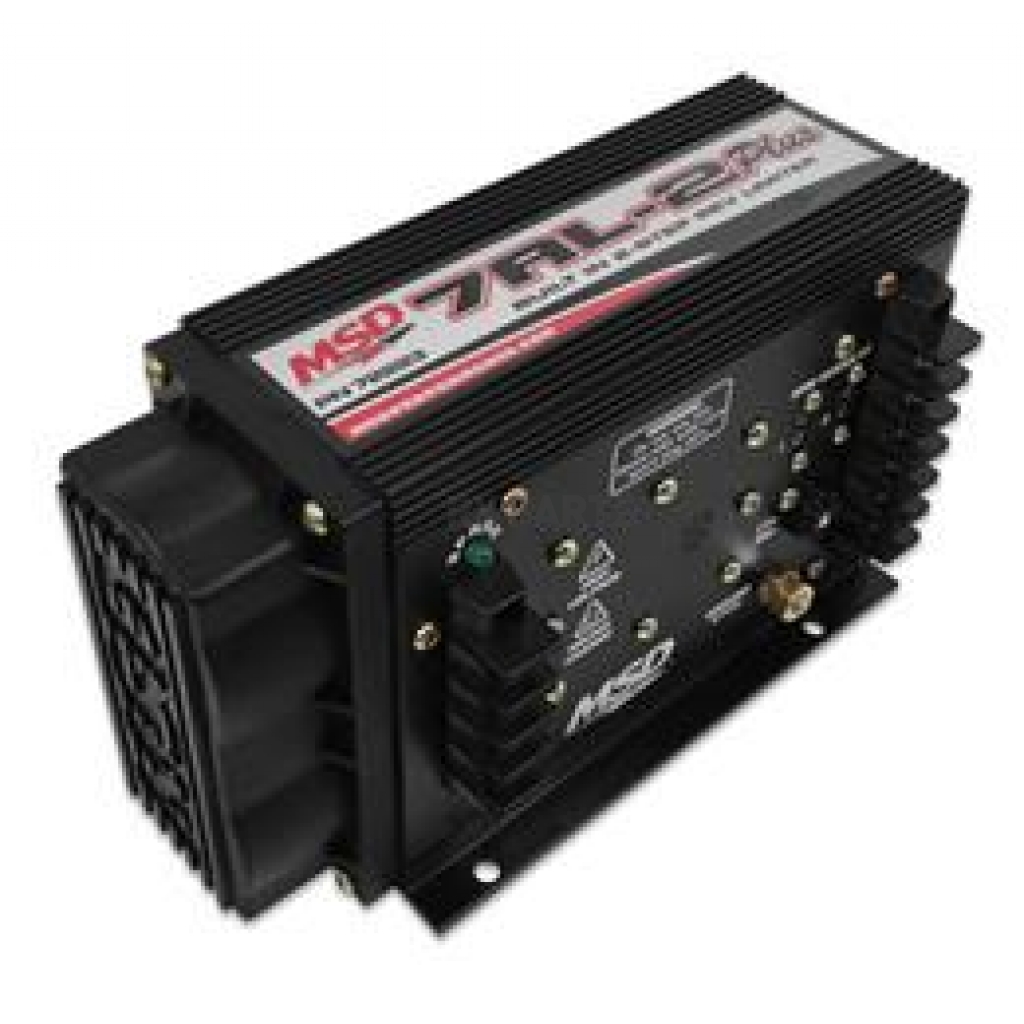

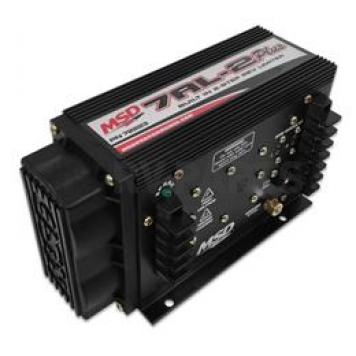

You’ll recognize the 7AL-2 Plus Ignition Control now in Black! As its predecessor is the most popular ignition control used in drag racing. The “Plus” model updates the original 7AL-2 with improved internal components plus our engineers added a 2-Step Rev Control and a useful diagnostic LED. Racers will be happy to see that the updated components up the voltage output and spark energy! Over 40 Percent more spark energy in fact! Visually, you’ll notice the two terminal strips that allow for easier wiring in your race car. The LED over the power connections will come in handy for troubleshooting as it flashes only when the coil fires. That way you know that the coil, the trigger source and ignition are all functioning properly. The mounting pattern is the same as the 7AL-2 and is supplied with vibration mounts and a few RPM modules.
Recommended Use: Drag Racing
Color: Black
Circuitry: Analog
Spark Output (Millijoules): 160 Millijoules Per Spark
Maximum Operating Voltage: 18 Volt
Minimum Operating Voltage: 12 Volt
Current Draw: 6 Amp Per 6000 RPM And 12 Amp Per 12000 RPM
CD Voltage Output To Coil (V): 570 Volt
REV Limiter: Yes
Includes Coil: No
Features
- Built-In 2-Step Rev Control
- Operates On 4, 6 Or 8 Cylinder Engines
- Diagnostic Troubleshooting LED
- Terminal Strips For Convenient Hook-Up
- Limited 1 Year Warranty
Specifications of MSD Ignition Ignition Control Module 72223 |
CD Voltage Output To Coil (V) |
570 Volt |
Circuitry |
Analog |
Color |
Black |
Current Draw |
6 Amp Per 6000 RPM And 12 Amp Per 12000 RPM |
Includes Coil |
No |
Maximum Operating Voltage |
18 Volt |
Minimum Operating Voltage |
12 Volt |
Recommended Use |
Drag Racing |
REV Limiter |
Yes |
Spark Output (Millijoules) |
160 Millijoules Per Spark |
