MSD Ignition Ignition Control Module 6564
CD Voltage Output To Coil (V)
535 To 550 Volt
Circuitry
Digital
Color
Blue
Current Draw
0.8 Amp Per 1000 RPM
Data Acquisition
No
Includes Coil
No
Maximum Operating Voltage
18 Volt
Minimum Operating Voltage
6 Volt
Output
Capacitive Discharge
Recommended Use
Street/Drag Racing
REV Limiter
Yes
Share this page
MSD Ignition Ignition Control Module
Ignition Control Module; 6M-3L Marine; Street/Drag Racing Use; Digital; 0-12000 RPM; With Rev Limiter; Multiple Spark Discharge; With Start Retard
MPN: 6564

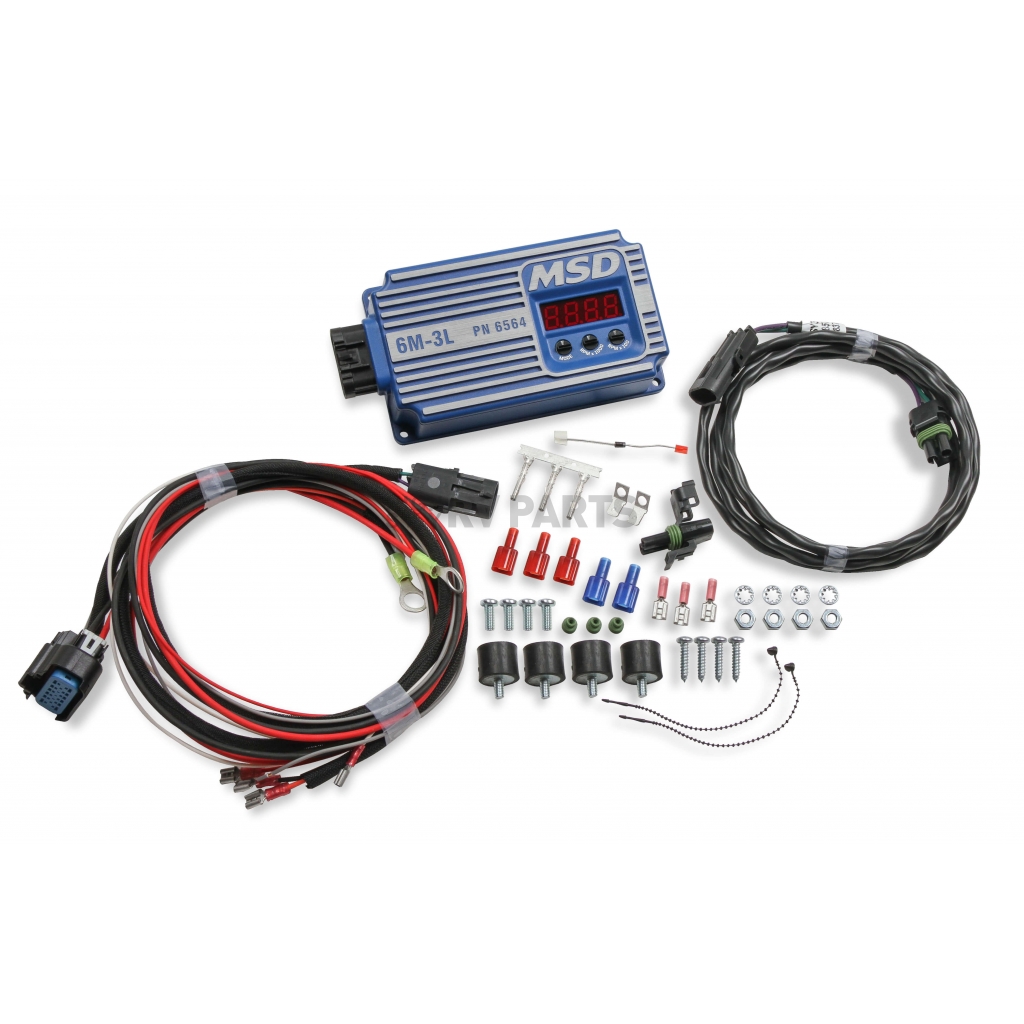

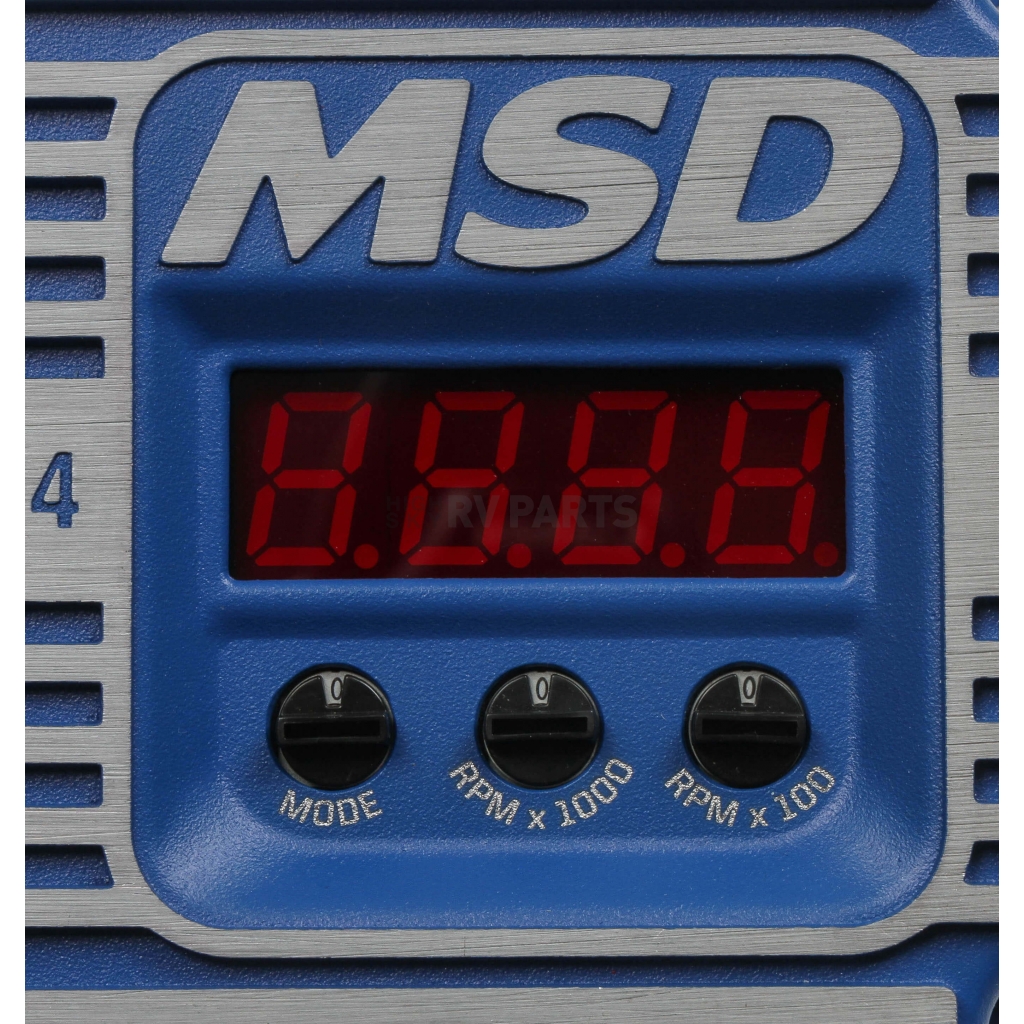

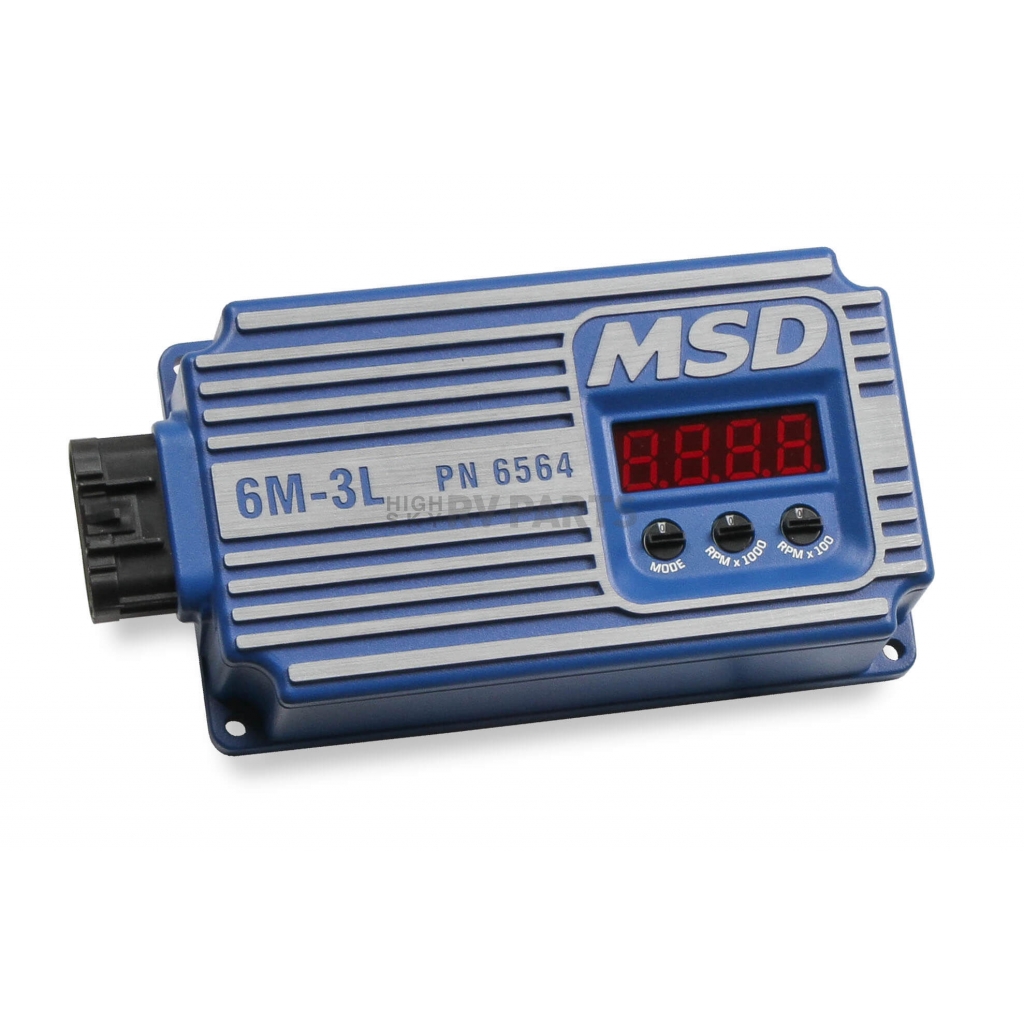

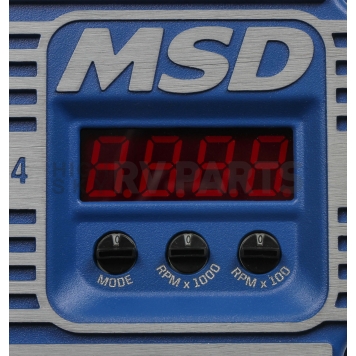

We've raised the bar and added an all-new UL listed marine ignition box to our lineup. The 6M-3L is a fully sealed unit with a single wiring connector making installation neat and easy. Three rotary dials and an LED display simplify setting the cylinder select, start retard and rev limiter. Plug-in rev limiter chips and hard to read dials are a thing of the past. For diagnostic purposes, the LED display can also be set to a live tach mode on V8's and even display battery voltage with the turn of a knob. The 6M-3L is a capacitive discharge ignition that multi-sparks from idle to 3,000 RPM providing a clean idle and quick throttle response. Above 3,000, capacitive discharge sparks will run clean through 12,000 RPM . Boasting more features and higher spark energy than its predecessor, the 6M-3L is the performance upgrade your boat needs.
Recommended Use: Street/Drag Racing
Color: Blue
Circuitry: Digital
Spark Output (Millijoules): 135 To 150 Millijoules
Maximum Operating Voltage: 18 Volt
Minimum Operating Voltage: 6 Volt
Output: Capacitive Discharge
Current Draw: 0.8 Amp Per 1000 RPM
CD Voltage Output To Coil (V): 535 To 550 Volt
Timing Retard: None
REV Limiter: Yes
Data Acquisition: No
Includes Coil: No
Features
- Large, Easy To Read LED Display
- Shift Interrupt Feature Eases Shifting
- Smoothest Rev Limiter Yet, Protecting Parts And Saving Your Engine
- Records Highest RPM The Engine Turned For Last 20 Minutes Of Run Time; Easy Setup Of Features With Three Rotary Dials On The Face Of The Unit
- Built-In Start Retard Adjustable In 0 Degree, 10 Degree Or 20 Degree Increments For Quick, Easy Starts And Extend Starter Life
- LED Display Shows Rev Limit, Highest RMP Turned, Cylinder Select, Start Retard, Battery Voltage And Can Be Set To Tach Mode; Works On 4, 6 And 8 Cylinder Engines
- Full Delivery Of Spark Energy And Easy Starting Down To 6 Volt Battery Supply; Highly Efficient, Low Current Draw For Extended Battery Life
- Fully Potted Housing To Withstand Demanding Marine Conditions; Sealed Connector For Clean Wiring And Trouble-Free Operation
- Reverse Polarity And Overheat Protection Provide Ultimate Reliability; Can Be Triggered By Magnetic Pickup, Amplifier, And Points Inputs
- Limited 1 Year Warranty
| Specifications of MSD Ignition Ignition Control Module 6564 | |
| CD Voltage Output To Coil (V) | 535 To 550 Volt |
| Circuitry | Digital |
| Color | Blue |
| Current Draw | 0.8 Amp Per 1000 RPM |
| Data Acquisition | No |
| Includes Coil | No |
| Maximum Operating Voltage | 18 Volt |
| Minimum Operating Voltage | 6 Volt |
| Output | Capacitive Discharge |
| Recommended Use | Street/Drag Racing |
| REV Limiter | Yes |
| Spark Output (Millijoules) | 135 To 150 Millijoules |
| Timing Retard | None |
