MSD Ignition Ignition Control Module 6560
CD Voltage Output To Coil (V)
45000 Volt
Circuitry
Analog
Color
Blue
Current Draw
1 Amp Per 1000 RPM
Data Acquisition
No
Includes Coil
No
Maximum Operating Voltage
18 Volt
Minimum Operating Voltage
12 Volt
Output
Capacitive Discharge
Recommended Use
Marine
REV Limiter
Yes
Share this page
MSD Ignition Ignition Control Module
Ignition Control Module; For Marine Application; 15,000 RPM With 14.4 Volts; With Rev Limiter
MPN: 6560

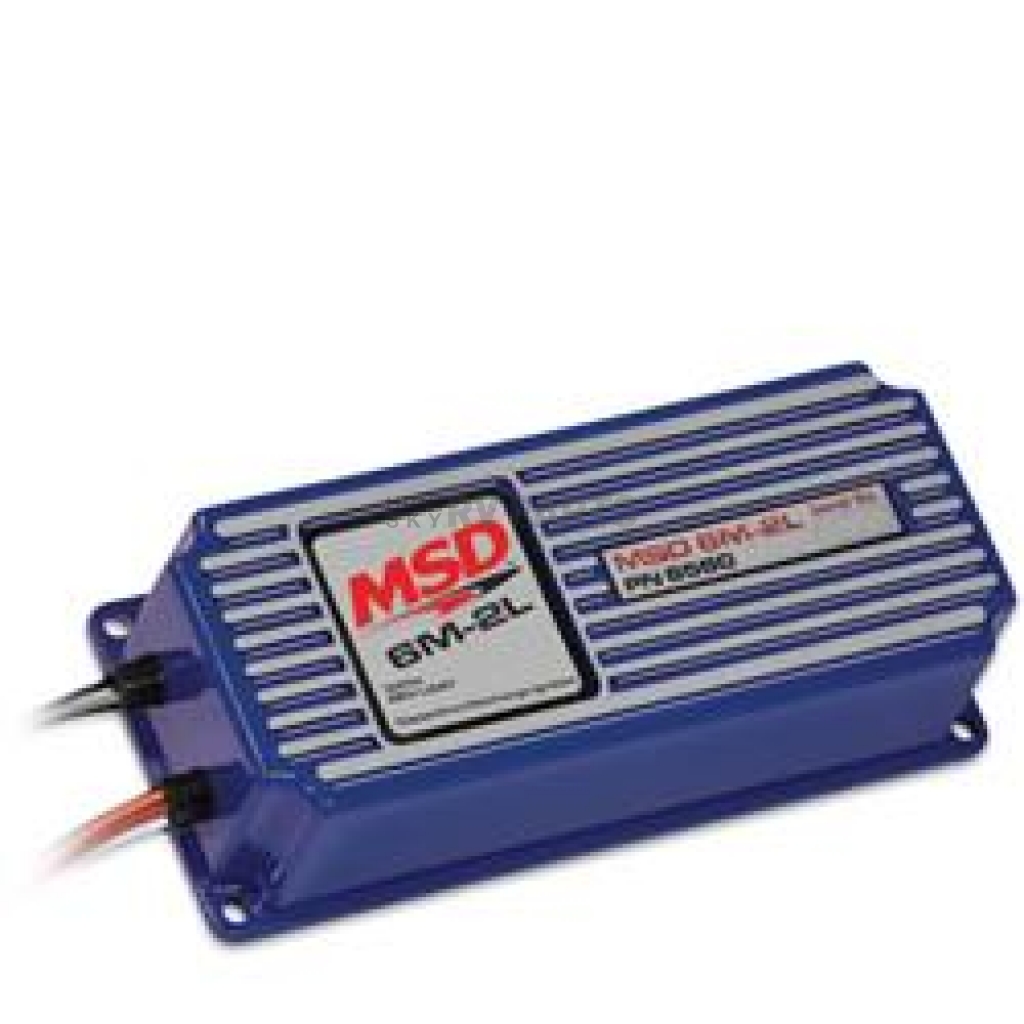

The MSD 6M-2L Ignition Control is designed for performance marine applications where a high energy and reliable ignition is a necessity. The capacitive discharge (CD) design of the MSD produces full power sparks throughout your boat's entire rpm range. Below 3,000 rpm, a series of multiple sparks burn in the cylinder for 20 degree of crankshaft rotation ensuring complete combustion. Together, these sparks produce easier starting, great throttle response, more power and reduced plug fouling during idling. Weathertight connectors securely lock together to provide reliable connections that are unaffected by water, oil, gasoline and most other chemicals associated with boats. The 6M-2L's electrical circuitry from marine conditions, the entire unit is potted with a polyurethane compound. This material prevents the electrical components from coming into contact with water or other chemicals. The 6M-2L also features a built-in Soft Touch Rev Control that will save your engine from overrev damage. The rpm limit is set with sealed rpm modules (see below). The 6M-2L can be triggered by either a magnetic pickup (distributor or crank trigger), amplifier or by a breaker point distributor. The cable harness has the proper connector so you can plug the 6M-2L into one of the Pro-Billet MSD Marine distributors.
Recommended Use: Marine
Color: Blue
Circuitry: Analog
Spark Output (Millijoules): 105 To 115 Millijoules
Maximum Operating Voltage: 18 Volt
Minimum Operating Voltage: 12 Volt
Output: Capacitive Discharge
Current Draw: 1 Amp Per 1000 RPM
CD Voltage Output To Coil (V): 45000 Volt
REV Limiter: Yes
Data Acquisition: No
Includes Coil: No
Features
- Multiple Sparks Improve Starting, Throttle Response And Idle Quality
- Circuitry Is Potted For A Weather-Proof Housing
- Weathertight Connectors Protect Wiring From Water And Chemicals
- MSD's Popular 6M-2 With A Built-In Rev-Limiter
- Limited 90 Day Supplier Warranty
Specifications of MSD Ignition Ignition Control Module 6560 | |
CD Voltage Output To Coil (V) | 45000 Volt |
Circuitry | Analog |
Color | Blue |
Current Draw | 1 Amp Per 1000 RPM |
Data Acquisition | No |
Includes Coil | No |
Maximum Operating Voltage | 18 Volt |
Minimum Operating Voltage | 12 Volt |
Output | Capacitive Discharge |
Recommended Use | Marine |
REV Limiter | Yes |
Spark Output (Millijoules) | 105 To 115 Millijoules |
