MSD Ignition Ignition Control Module 6530
CD Voltage Output To Coil (V)
535 Volt
Circuitry
Digital
Color
Red
Current Draw
0.7 Ampere Per 1000 RPM
Data Acquisition
No
Includes Coil
No
Maximum Operating Voltage
18 Volt
Minimum Operating Voltage
12 Volt
Output
Capacitive Discharge
Recommended Use
Street/ Drag Racing
REV Limiter
Yes
Share this page

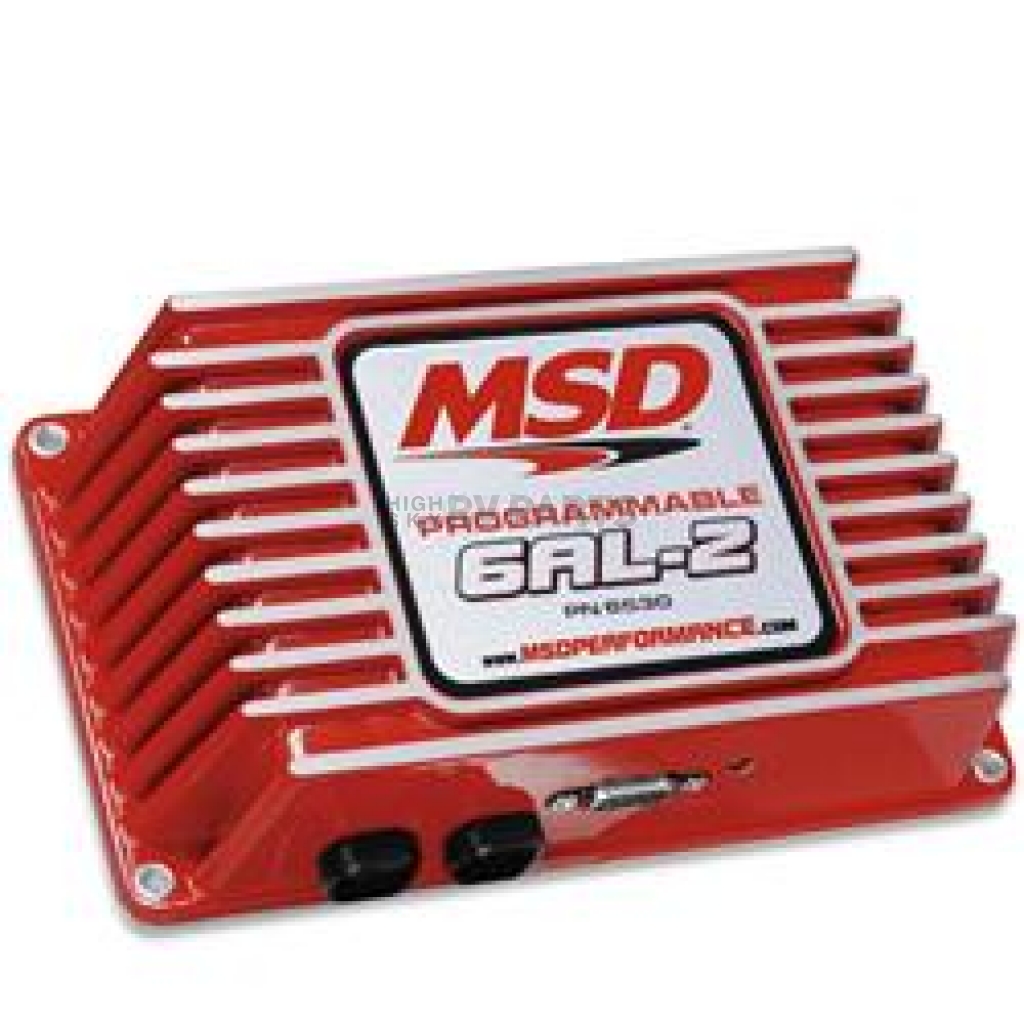

MSD Ignition Ignition Control Module
Ignition Control Module; 6 Series; Street/Drag Racing use; Digital; 0-12500 RPM; With 2 Step Rev Limiter; Multiple Spark Discharge; Fully Programmable Through PC; With Boost Retard; Red
MPN: 6530
The programmable 6AL-2 ignition provides street and performance cars to take advantage of tuning-in an ignition curve or boost timing map from a PC. Also, using MSD’s Pro-Data and software will provide simple adjustments to a 2 step rev limiter, step retard and more! The programmable 6AL-2 shares the same advanced features of the new 6AL-2 with 535 primary Volts and spark energy reaching 135 Milli Joules! Vibration mounts, wiring and a PC cable are supplied.
Recommended Use: Street/ Drag Racing
Color: Red
Circuitry: Digital
Spark Output (Millijoules): 135 Millijoules
Maximum Operating Voltage: 18 Volt
Minimum Operating Voltage: 12 Volt
Output: Capacitive Discharge
Current Draw: 0.7 Ampere Per 1000 RPM
CD Voltage Output To Coil (V): 535 Volt
Timing Retard: None
REV Limiter: Yes
Data Acquisition: No
Includes Coil: No
Features
- Advanced PC Programming For Use On Street/Strip And Track Cars
- PC Programmable With Easy To Use Windows Based Pro-Data And Software
- Plot A Timing Curve Based On Boost Pressure Down To A 0.1 Degree Every 100 RPM
- Program Three Rev Limits In 100 RPM Increments
- Step Retard For Nitrous Applications Plus A Boost Timing Map
- Capacitive Discharge Technology For High Voltage And Spark Energy
- Limited 1 Year Warranty
| Specifications of MSD Ignition Ignition Control Module 6530 | |
| CD Voltage Output To Coil (V) | 535 Volt |
| Circuitry | Digital |
| Color | Red |
| Current Draw | 0.7 Ampere Per 1000 RPM |
| Data Acquisition | No |
| Includes Coil | No |
| Maximum Operating Voltage | 18 Volt |
| Minimum Operating Voltage | 12 Volt |
| Output | Capacitive Discharge |
| Recommended Use | Street/ Drag Racing |
| REV Limiter | Yes |
| Spark Output (Millijoules) | 135 Millijoules |
| Timing Retard | None |
