MSD Ignition Ignition Control Module 6471
CD Voltage Output To Coil (V)
535 To 550 Volt
Circuitry
Digital
Color
Black
Current Draw
0.8 Amp
Data Acquisition
Yes
Includes Coil
No
Maximum Operating Voltage
18 Volt
Minimum Operating Voltage
6 Volt
Output
Capacitive Discharge
REV Limiter
Yes
Spark Output (Millijoules)
135 Millijoules
Share this page

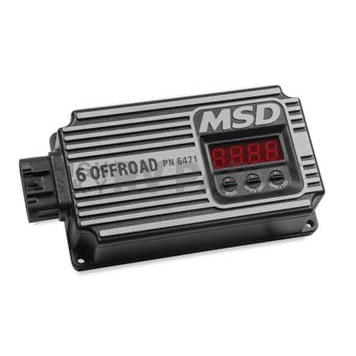

MSD Ignition Ignition Control Module
Ignition Control Module; 6 Series; Street/Drag Racing Use; Digital; 0-12000 RPM; With Rev Limiter; Multiple Spark Discharge
MPN: 6471
If you’re crawling rocks, high speed desert racing, or playing in any kind of harsh terrain in your off-road rig, the MSD 6 off-road ignition is a must. Its fully potted design provides the ruggedness and reliability needed to get your 4WD to any destination. The 6 Off-road multi-sparks below 3,000 RPM on V8’s ensuring clean, crisp throttle response and complete fuel burn when crawling at low speeds. Above 3,000 RPM a powerful capacitive discharge spark keeps the fire lit until you let off the skinny pedal. A smooth, accurate rev-limiter will protect your engine from over-rev damage due to drivetrain failure or a slick spot on the trail. An easy to read LED display on the face of the unit clearly displays the rev-limit RPM. The display, in conjunction with rotary dials, is used to set the rev-limit, cylinder select, and even a timing start retard for race engines. The handy display can also show a live tach reading and even battery voltage with the quick turn of a knob.
Color: Black
Circuitry: Digital
Spark Output (Millijoules): 135 Millijoules
Maximum Operating Voltage: 18 Volt
Minimum Operating Voltage: 6 Volt
Output: Capacitive Discharge
Current Draw: 0.8 Amp
CD Voltage Output To Coil (V): 535 To 550 Volt
Timing Retard: Three Stage
REV Limiter: Yes
Data Acquisition: Yes
Includes Coil: No
Features
- Fully Potted Design Provides Reliability Even In High Vibration And Wet Circumstances
- Large, Easy To Read LED Display; Simple Setup Of Features Such As The Rev Limiter With Three Rotary Dials On The Face Of The Unit
- Built-In Start Retard Adjustable In 0 Degree, 10 Degree Or 20 Degree Increments For Quick, Easy Starts And Extend Starter Life
- LED Displays Rev Limit, Highest RMP Turned, Cylinder Select, Start Retard, Battery Voltage And Can Be Set To Tach Mode
- Full Delivery Of Spark Energy Down To 6 Volt Battery Supply
- Highly Efficient, Low Current Draw For Extended Battery Life
- Rugged Housing To Stand Up To Demanding Off-Road And Race Conditions
- Single Plug-In Connector For Clean Wiring; Works On 4, 6 And 8 Cylinder Engines
- Reverse Polarity And Overheat Protection Provide Ultimate Reliability
- Limited 1 Year Warranty
| Specifications of MSD Ignition Ignition Control Module 6471 | |
| CD Voltage Output To Coil (V) | 535 To 550 Volt |
| Circuitry | Digital |
| Color | Black |
| Current Draw | 0.8 Amp |
| Data Acquisition | Yes |
| Includes Coil | No |
| Maximum Operating Voltage | 18 Volt |
| Minimum Operating Voltage | 6 Volt |
| Output | Capacitive Discharge |
| REV Limiter | Yes |
| Spark Output (Millijoules) | 135 Millijoules |
| Timing Retard | Three Stage |
