MSD Ignition Ignition Control Module 6430

Authorized Dealer
Brand: MSD Ignition MSD Ignition
0 reviews
  • Have a product question? Ask us
  • Part Number: 6430
  • Part Location: U.S.
  • Availability: 6 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 07
Retail: $561.74
Price: $534.99
You Save: $26.75
CD Voltage Output To Coil (V)
470 Volt
Circuitry
Analog
Color
Red
Current Draw
1 Amp Per 1000 RPM
Data Acquisition
No
Includes Coil
No
Maximum Operating Voltage
18 Volt
Minimum Operating Voltage
12 Volt
Output
Capacitive Discharge
Recommended Use
Street/ Drag Racing/ Circle Track
REV Limiter
Yes
Share this page

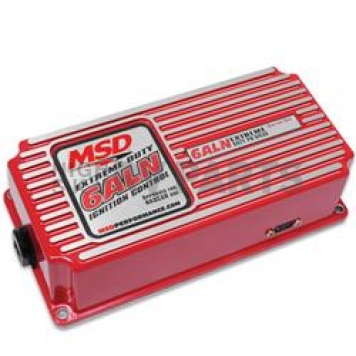

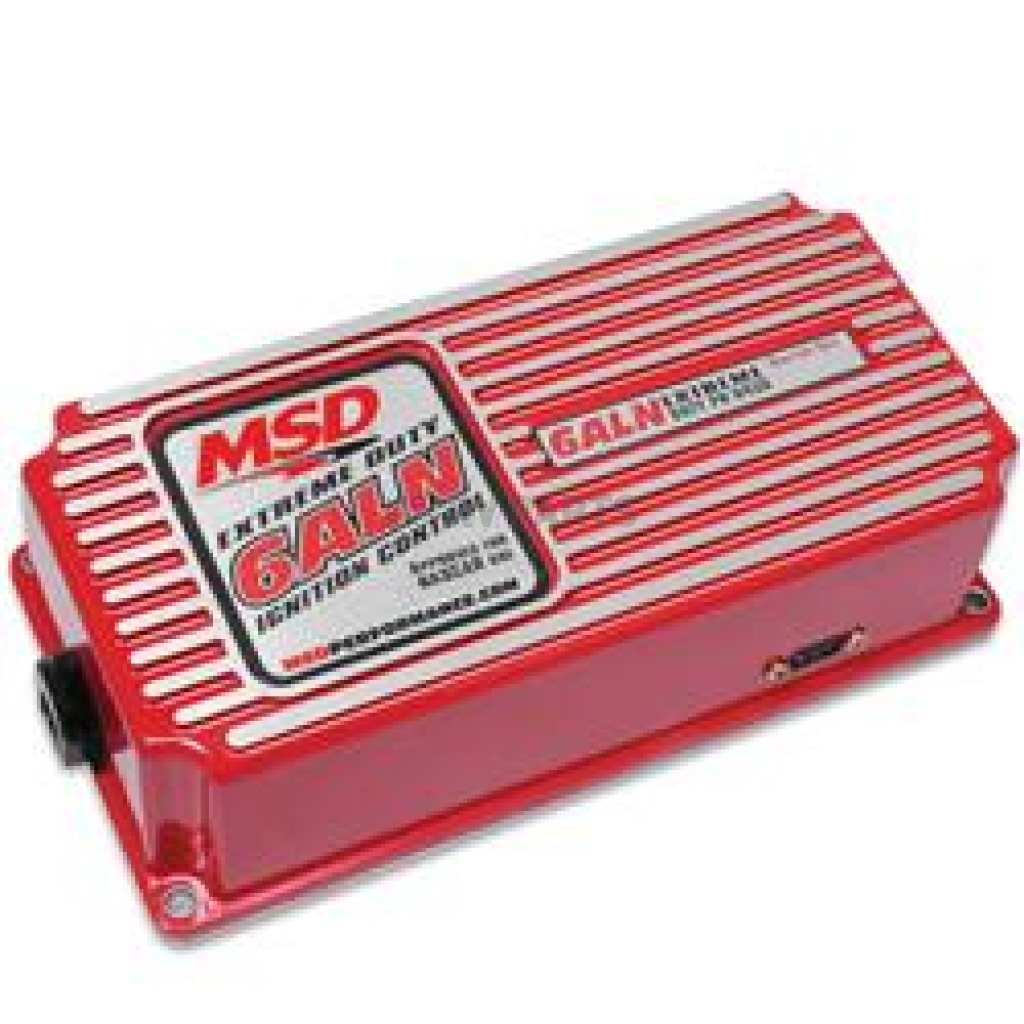

MSD Ignition Ignition Control Module

Ignition Control Module; 6 Series; Street/Drag Racing/Circle Track Use; Analog; 0-15000 RPM; With Adjustable Rev Limiter; Multiple Spark Discharge; Without Boost Retard

MPN: 6430

The MSD 6TN and MSD 6ALN were designed with NASCAR racing in mind. In fact, both of the capacitive discharge high power ignitions are NASCAR approved! The "N" series ignitions feature the mandatory 6 pin weather tight connector to meet NASCAR's ignition wiring rule, 20-6.1. This special connector provides a tight, positive locking connection with individual seals to keep dirt and moisture away from each connection. All of the MSD's primary wiring meets MIL-86A specifications with special tinned conductors for superior crimps. Inside the strong cast aluminum housing, the multiple sparking CD circuits are encased in a clear two part silicone elastomer for the ultimate in vibration protection. A special clear base plate is also installed for easy tech inspection. The 6TN is equipped with a special 4 pin connector that plugs directly into an MSD soft touch rev control, while the 6ALN has a built-in rev control.
Recommended Use: Street/ Drag Racing/ Circle Track
Color: Red
Circuitry: Analog
Spark Output (Millijoules): 110 Millijoules
Maximum Operating Voltage: 18 Volt
Minimum Operating Voltage: 12 Volt
Output: Capacitive Discharge
Current Draw: 1 Amp Per 1000 RPM
CD Voltage Output To Coil (V): 470 Volt
Timing Retard: None
REV Limiter: Yes
Data Acquisition: No
Includes Coil: No

Features

  • Multiple Spark, Capacitive Discharge Ignition Control
  • Designed For Circle Track Racing With NASCAR Mandated Connectors And Clear Epoxy Potting Compound For Vibration Protection
  • Circuit Board Is Encased In A Clear Two Part Silicone Elastomer
  • Built-In Soft Touch Rev Control Is Adjustable With RPM Modules
  • Multiple Sparks For 20 Degree Of Crankshaft Rotation
  • Works On 12 To 18 Volt Electrical System
  • Programmable For 4, 6, Or 8 Cylinders By Cutting Red/Blue Wire Loops
  • Limited 1 Year Warranty
Specifications of MSD Ignition Ignition Control Module 6430
CD Voltage Output To Coil (V) 470 Volt
Circuitry Analog
Color Red
Current Draw 1 Amp Per 1000 RPM
Data Acquisition No
Includes Coil No
Maximum Operating Voltage 18 Volt
Minimum Operating Voltage 12 Volt
Output Capacitive Discharge
Recommended Use Street/ Drag Racing/ Circle Track
REV Limiter Yes
Spark Output (Millijoules) 110 Millijoules
Timing Retard None
