MSD Ignition Ignition Coil 86415

Authorized Dealer
Brand: MSD Ignition MSD Ignition
0 reviews
  • Have a product question? Ask us
  • Part Number: 86415
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $67.19
Price: $63.99
You Save: $3.20
Color
Black
Includes Ballast Resistor
No
Includes Coil Wire
Yes
Includes Mounting Bracket
Yes
Maximum Voltage
45000 Volt
Primary Resistance
0.432 Ohms
Secondary Resistance
4.6K Ohms
Share this page

MSD Ignition Ignition Coil

Ignition Coil; 6EFI; For Use With MSD Part Number 6415; 45,000 Volts; 0.432 Ohms Primary Resistance/4.6K Ohms Secondary Resistance/80:1 Turns Ratio/4.34mH Inductance/300 mA Peak Current/300 us Spark Duration

MPN: 86415

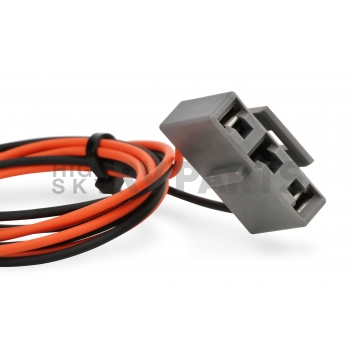

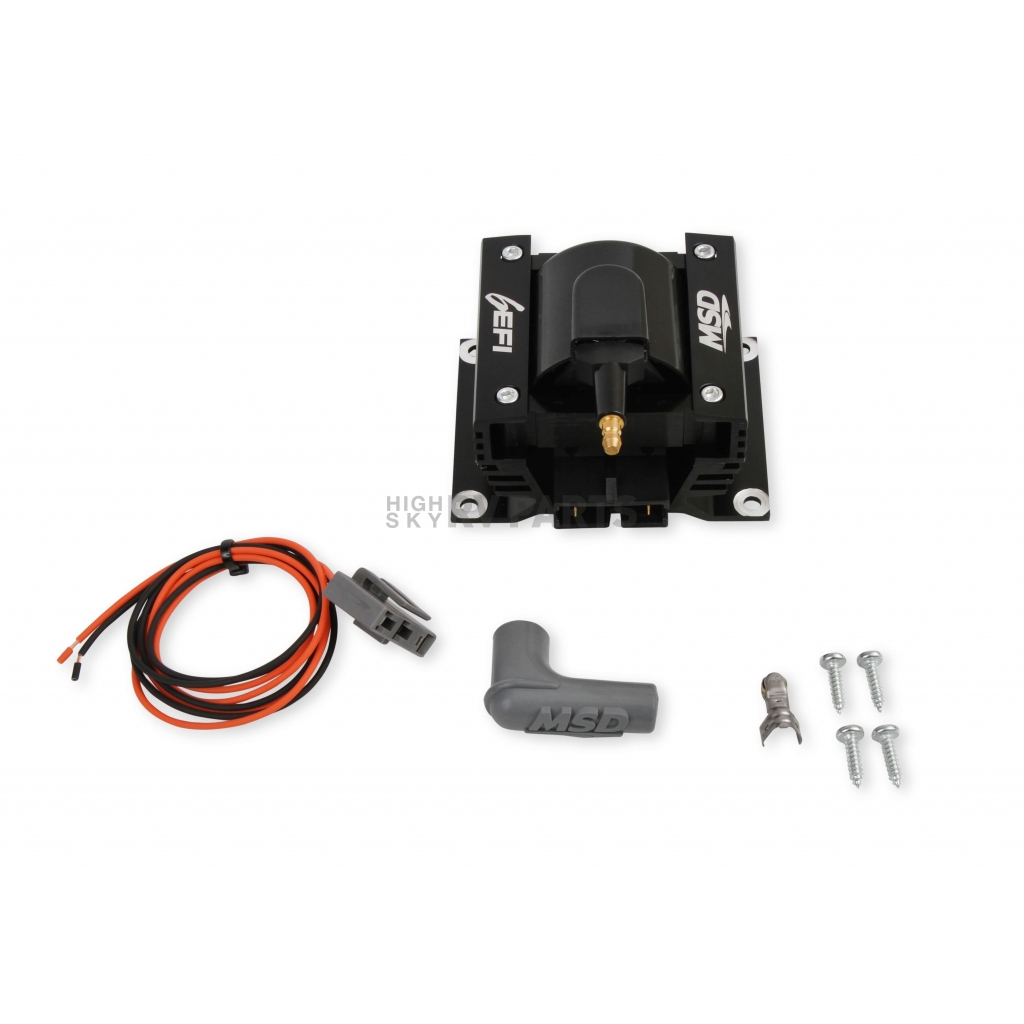

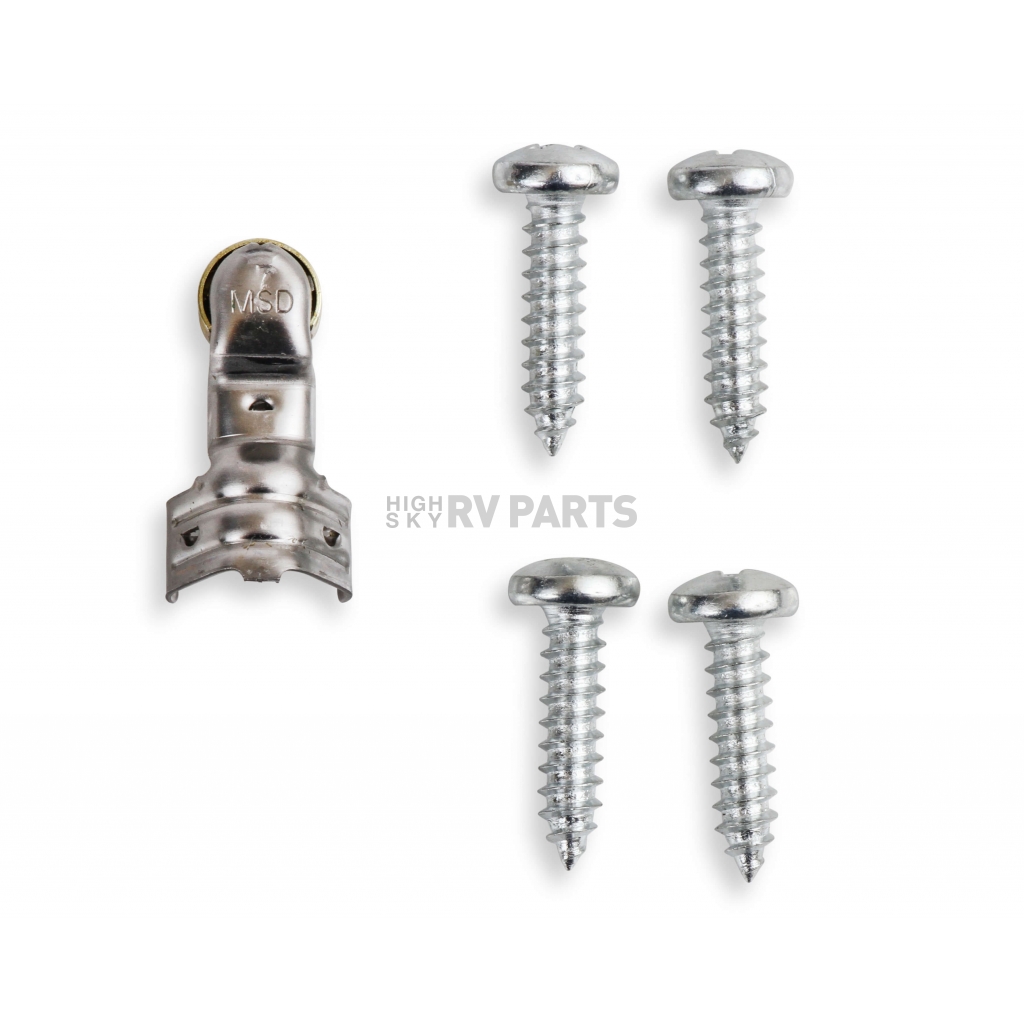

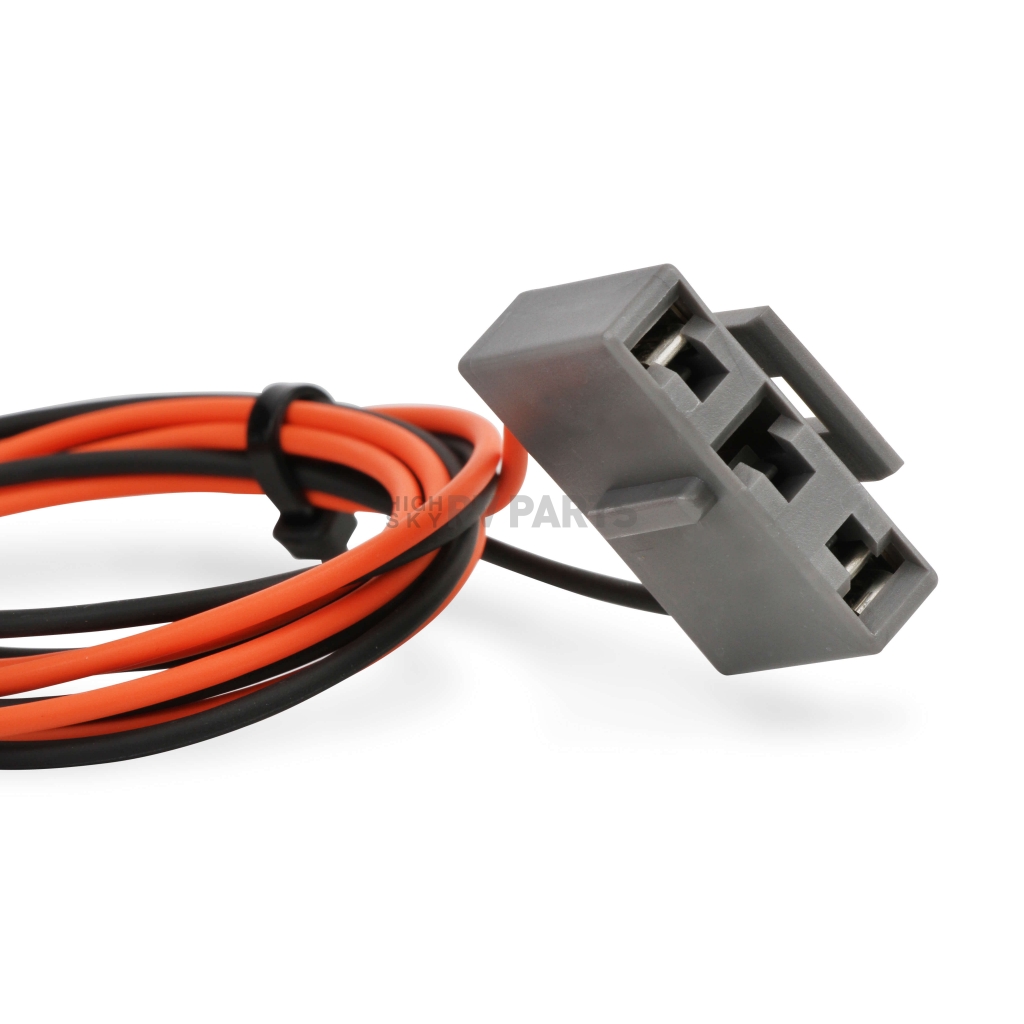

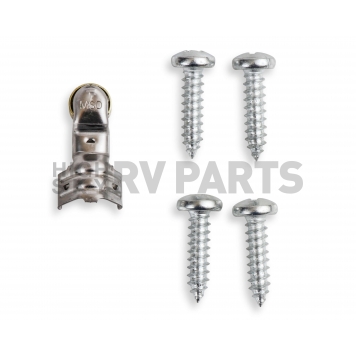

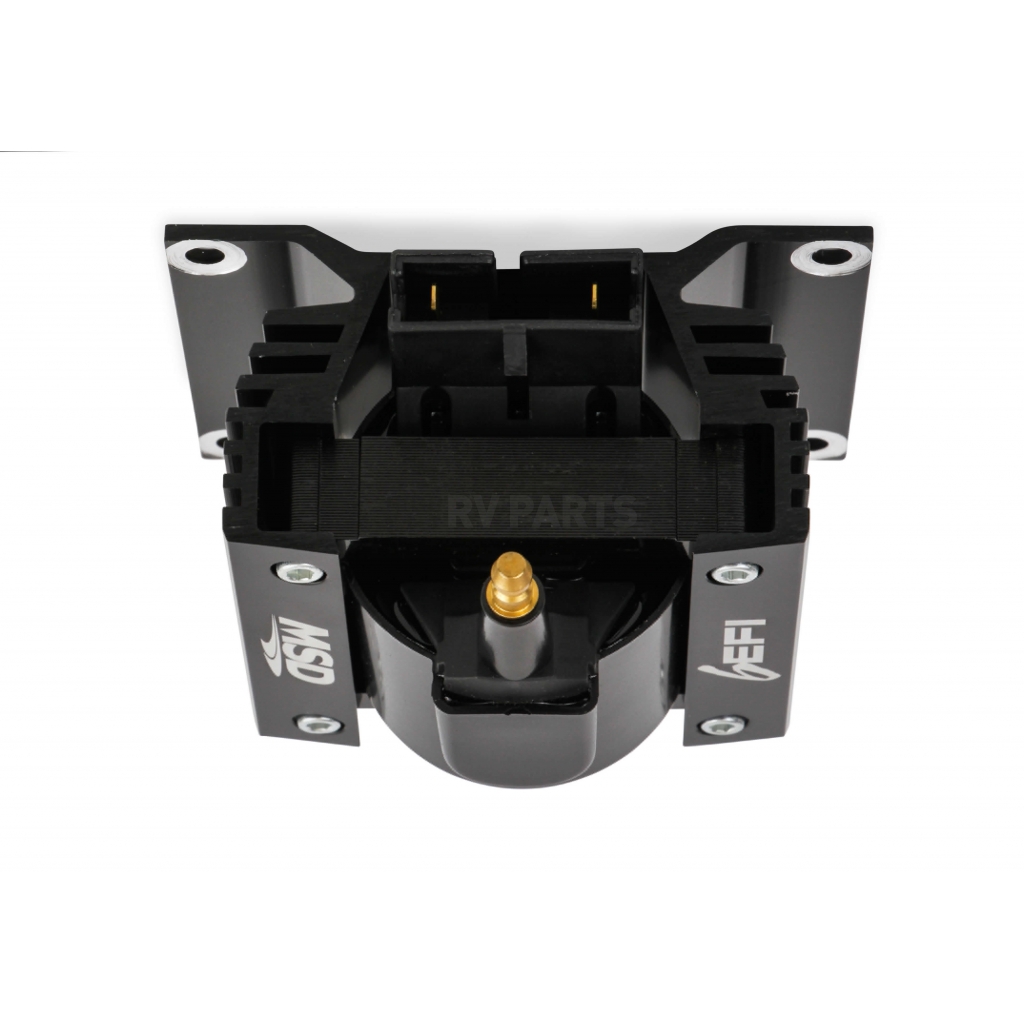

When running an MSD Atomic EFI or similar throttle body fuel injection system with a 6EFI ignition box, the 6EFI ignition coil is made for you. Designed to match the 6EFI ignition, the 6EFI coil has a clean black appearance with logos laser-etched on its black anodized aluminum mounting bracket. It is supplied with four, self-tapping mounting screws and a plug-in harness with color-coded wires for easy installation. The 6EFI coil produces high voltage and current that translate to powerful spark improving engine starting, throttle response, and power throughout the RPM range.
Primary Resistance: 0.432 Ohms
Secondary Resistance: 4.6K Ohms
Maximum Voltage: 45000 Volt
Color: Black
Includes Ballast Resistor: No
Includes Coil Wire: Yes
Includes Mounting Bracket: Yes

Features

  • Produces High Spark Energy To Ensure The Air And Fuel In Your Engine Get Burned Completely To Improve Starting, Throttle Response, And Supply Powerful Spark Throughout The RPM Range
  • Designed To Work With The MSD 6EFI Ignition Part Number 6415 And Can Also Be Used With Other MSD 6-Series Ignition Boxes Such As A 6AL Part Number 6425
  • The Black Housing And Laser-Etched Black Anodized Mounting Bracket Add Great Looks And A Solid Mounting Point

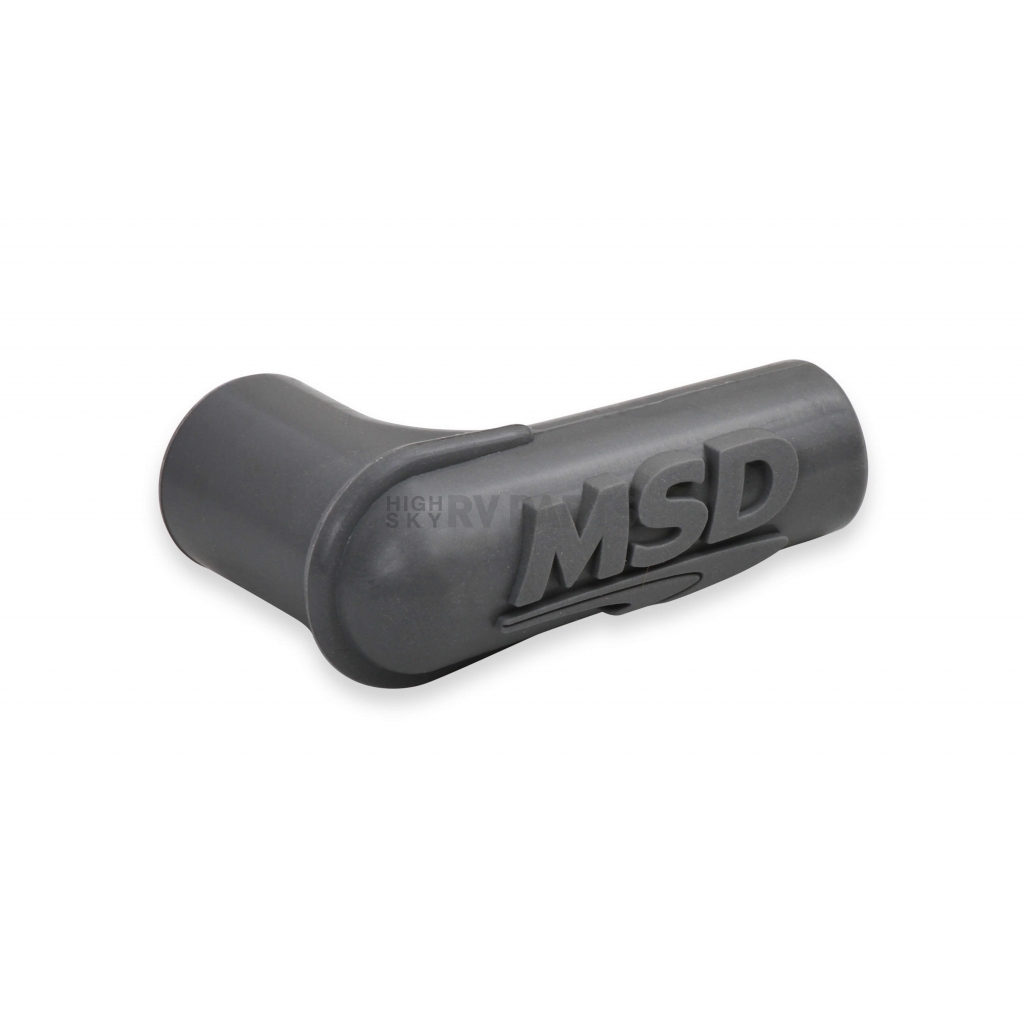

  • An MSD Spark Plug Wire Boot And Terminal Come In The Kit To Convert Your Existing Coil Wire From A Female, Socket Connection To A Male High Energy Ignition (H.E.I.) Connection If Needed
  • Limited 1 Year Warranty
Specifications of MSD Ignition Ignition Coil 86415
Color Black
Includes Ballast Resistor No
Includes Coil Wire Yes
Includes Mounting Bracket Yes
Maximum Voltage 45000 Volt
Primary Resistance 0.432 Ohms
Secondary Resistance 4.6K Ohms
