MSD Ignition Ignition Coil 82613

Authorized Dealer
Brand: MSD Ignition MSD Ignition
0 reviews
  • Have a product question? Ask us
  • Part Number: 82613
  • Part Location: U.S.
  • Availability: Out Of Stock
Retail: $351.74
Price: $334.99
You Save: $16.75
Coil Style
Single Tower
Color
Black
Includes Ballast Resistor
No
Includes Mounting Bracket
No
Maximum Voltage
45000 Volt
Primary Resistance
0.016 Ohm
Recommended Use
Drag Race/ Long Duration Use
Secondary Resistance
30 Ohm
Share this page

MSD Ignition Ignition Coil

Ignition Coil; Pro Power HVC II; Single Tower; 45000 Volts; 0.016 Ohms Primary Resistance/30 Ohms Secondary Resistance/70:1 Turns Ratio/0.250mH Inductance/2 Amps Peak Current/150uS Spark Duration; Black

MPN: 82613

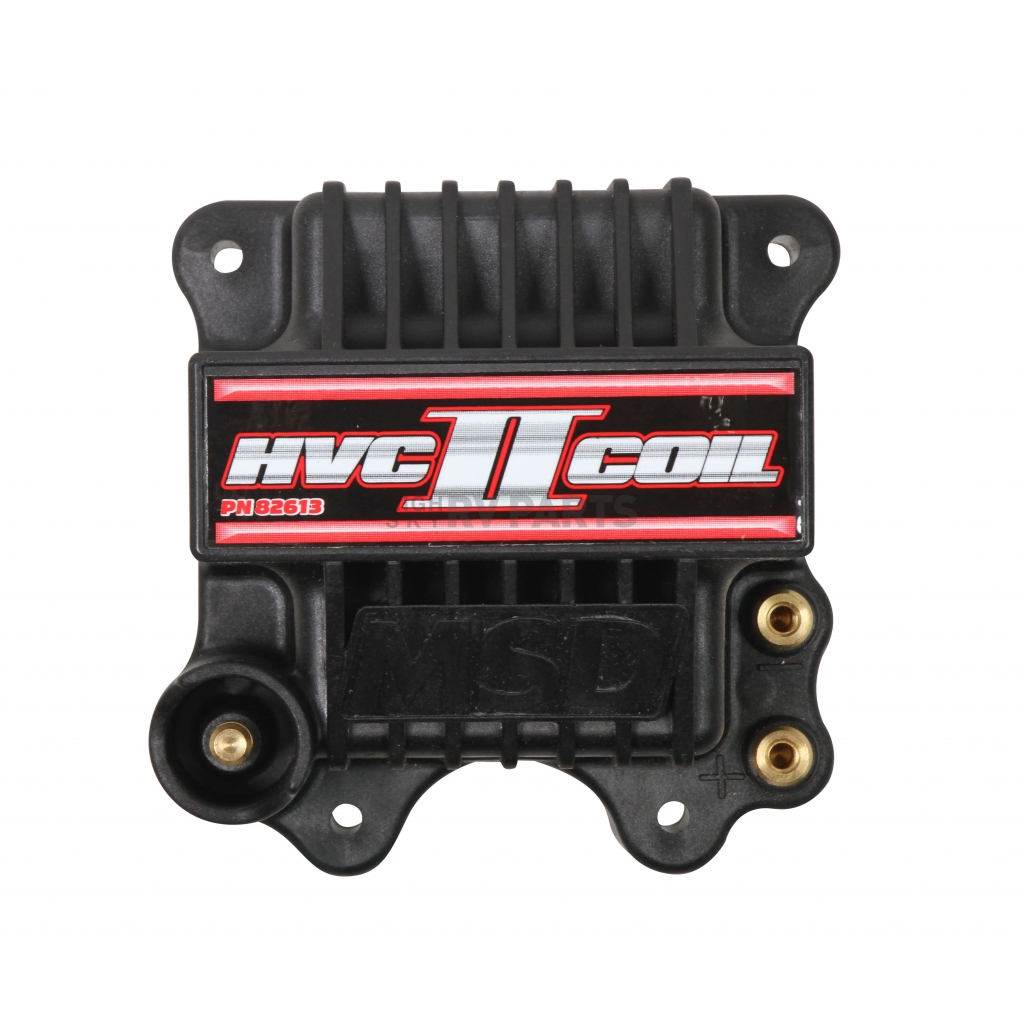

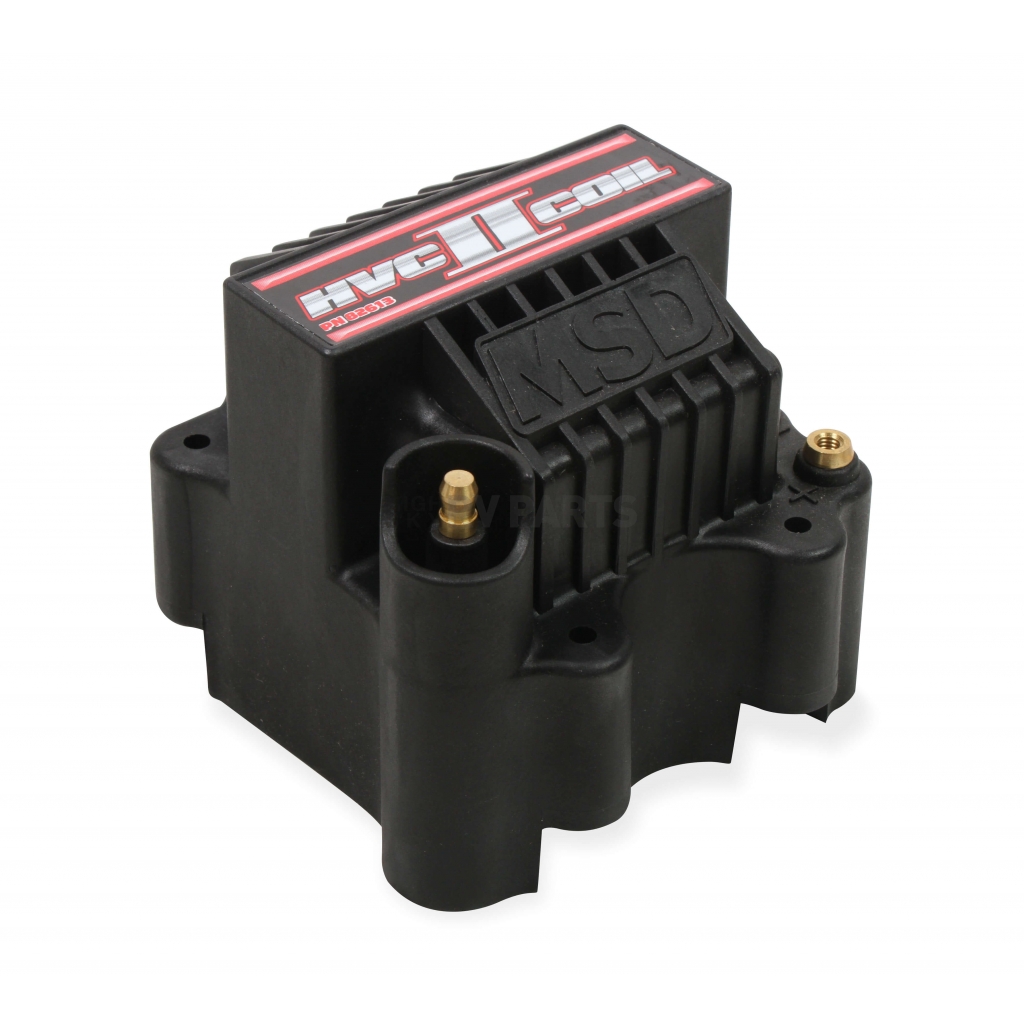

The HVC II Coil is completely built in-house so our engineers have exclusive control over their performance and qual­ity. The Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting edge winding material that has an improved insulation and is also capable of enduring extreme volt­ages. Together, these materials create a durable coil with incredible voltage capabilities, lightning quick rise time and lengthy spark duration. The housing, also molded from Rynite material, features far spaced brass primary terminals and a well protected secondary tower for increased spark isolation. The housing is completely potted with an epoxy compound for vibration resistance and installs with sturdy vibration mounts. For use with MSD 7 and 8 Series Ignitions.
Recommended Use: Drag Race/ Long Duration Use
Coil Style: Single Tower
Primary Resistance: 0.016 Ohm
Secondary Resistance: 30 Ohm
Maximum Voltage: 45000 Volt
Color: Black
Includes Ballast Resistor: No
Includes Mounting Bracket: No

Features

  • Designed For Racing Applications With An MSD 7 Or 8 Series Ignition Control
  • U-Core Winding Design Produces More Voltage And Current
  • 70:1 Turns Ratio And Lower Primary Resistant Compound For Vibration Resistance
  • Tough, Rigid Housing With Isolated Tower And Brass Primary Terminals

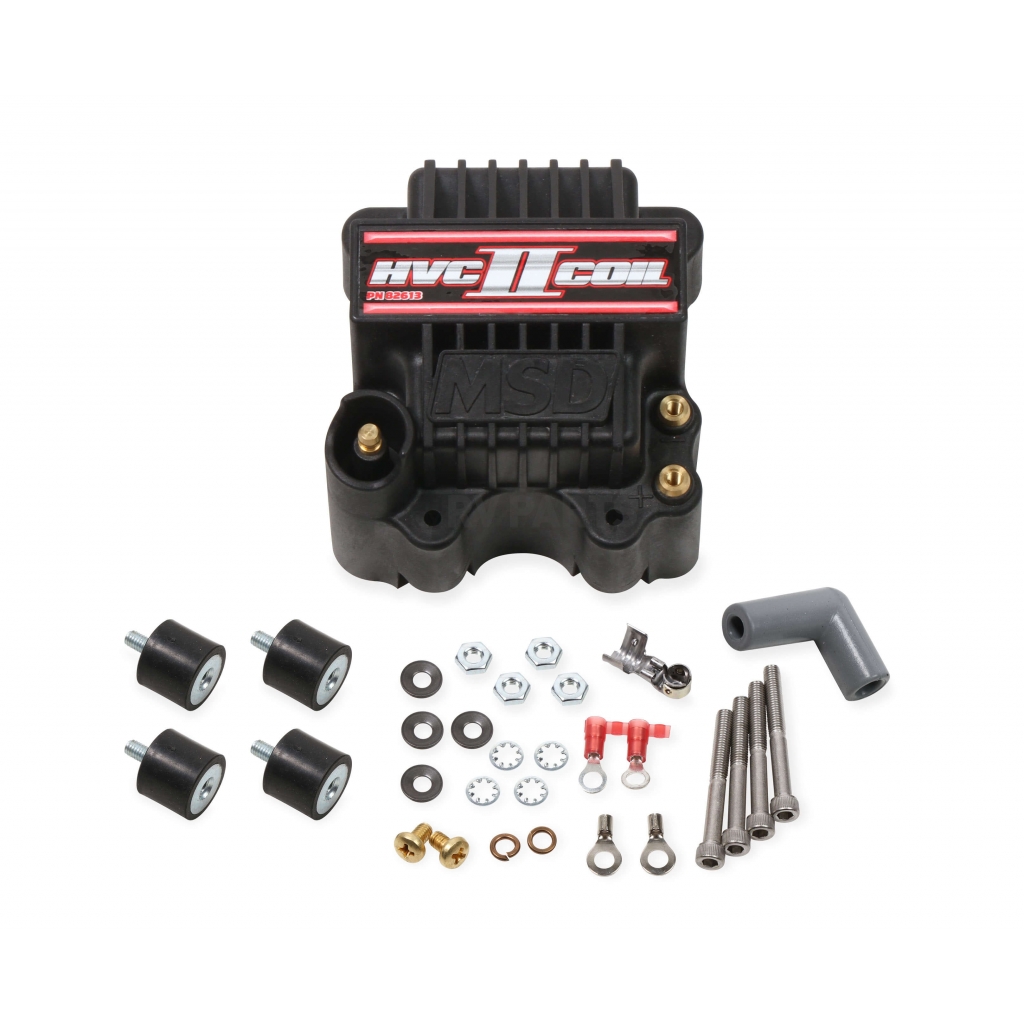

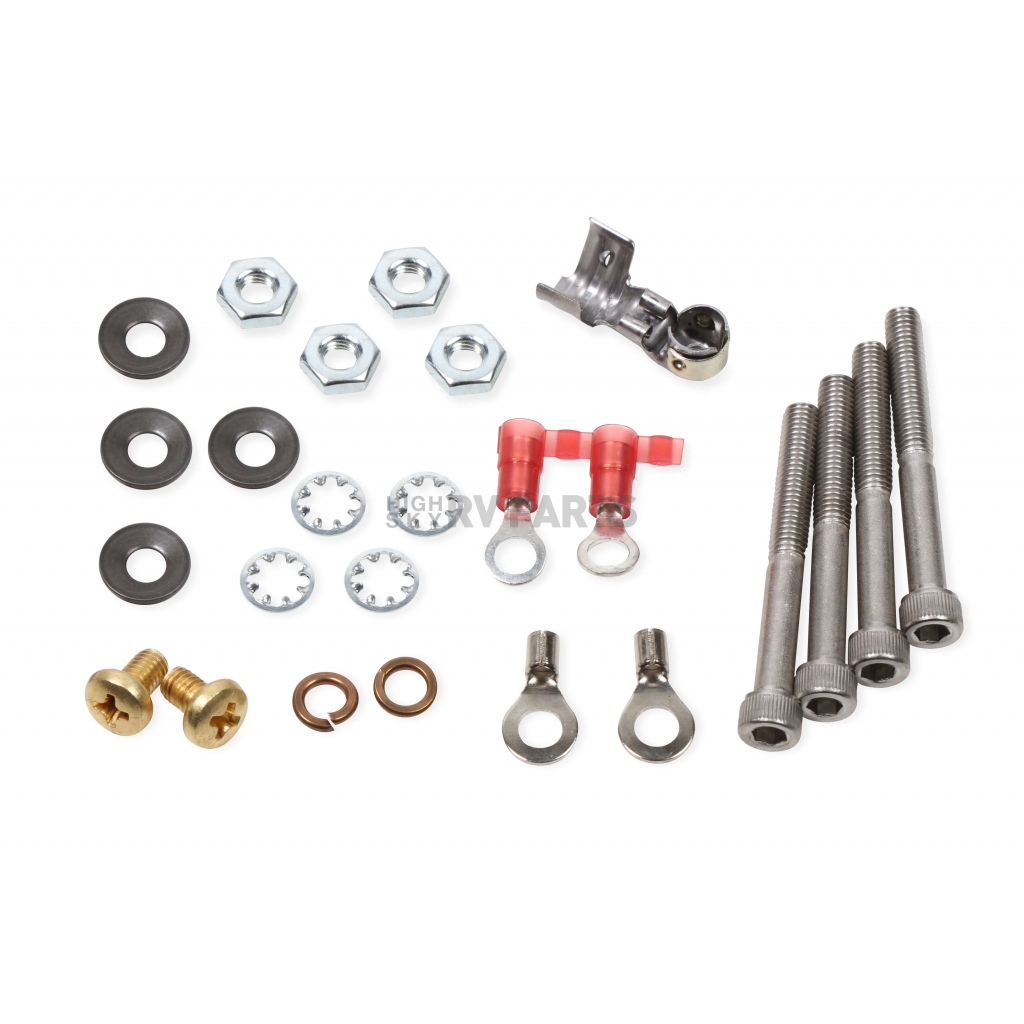

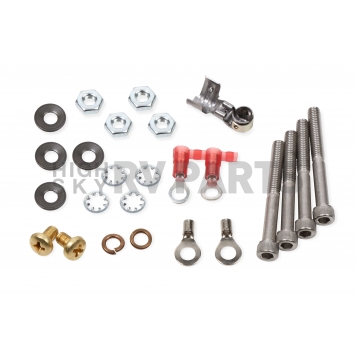

  • Supplied With Mounting Hardware And Rubber Shock Mounts
  • Limited 1 Year Warranty
Specifications of MSD Ignition Ignition Coil 82613
Coil Style Single Tower
Color Black
Includes Ballast Resistor No
Includes Mounting Bracket No
Maximum Voltage 45000 Volt
Primary Resistance 0.016 Ohm
Recommended Use Drag Race/ Long Duration Use
Secondary Resistance 30 Ohm
