MSD Ignition Ignition Coil 8261

Authorized Dealer
Brand: MSD Ignition MSD Ignition
0 reviews
  • Have a product question? Ask us
  • Part Number: 8261
  • Part Location: U.S.
  • Availability: 9 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 07
Retail: $383.24
Price: $364.99
You Save: $18.25
Coil Style
1 Tower
Color
Red
Internal Construction
Epoxy Filled
Maximum Voltage
45000 Volt
Primary Resistance
0.016 Ohm
Recommended Use
Strip
Secondary Resistance
0.03 Kilo Ohm
Share this page

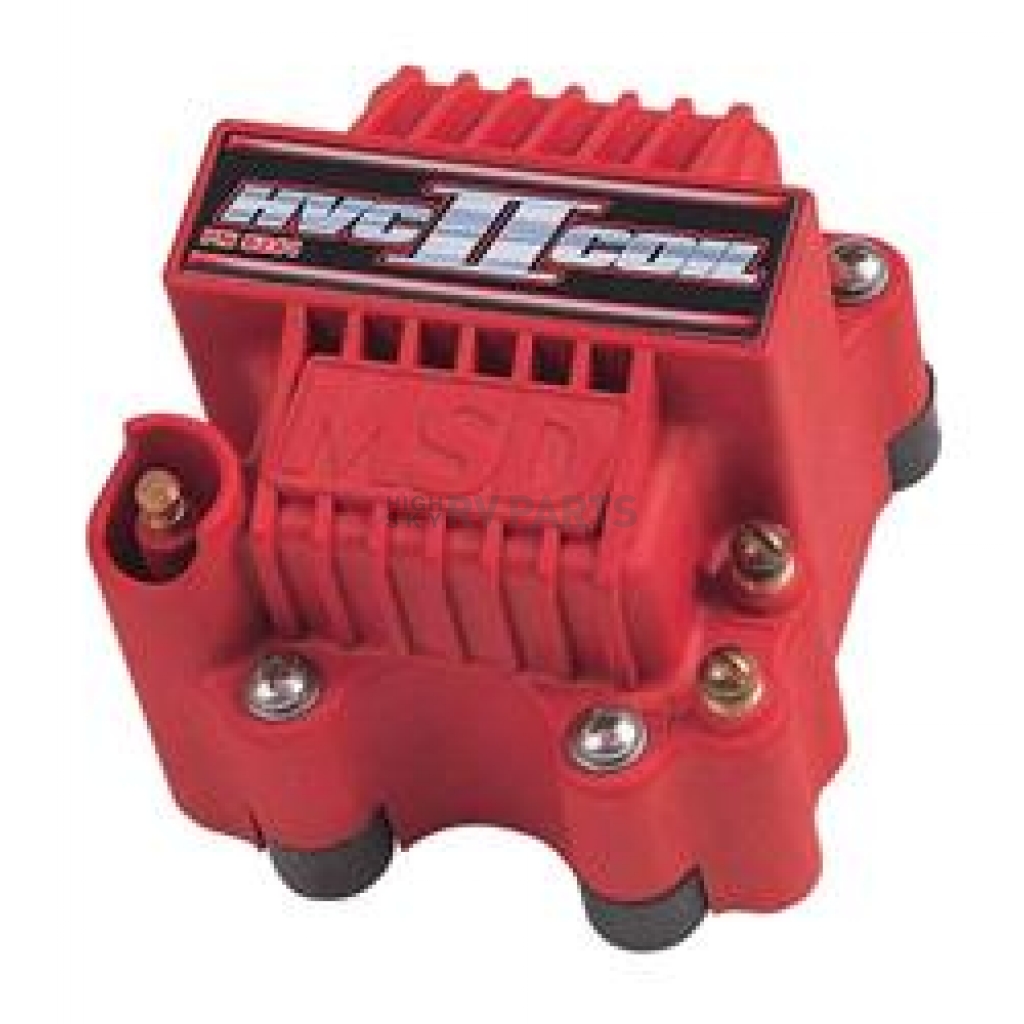

MSD Ignition Ignition Coil

Ignition Coil; Pro Power HVC II; Single Tower; 45000 Volts; 0.016 Ohms Primary Resistance/30 Ohms Secondary Resistance/70:1 Turns Ratio/0.250mH Inductance/2 Amps Peak Current/150uS Spark Duration; Red

MPN: 8261

The Pro Power HVC II coil is completely built in-house so our engineers have exclusive control over their performance and quality. The coil utilizes an iron U-core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from DuPont Rynite material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting edge winding material that has an improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning quick rise time and lengthy spark duration. The housing, also molded from Rynite material, features far spaced brass primary terminals and a well protected secondary tower for increased spark isolation. The housing is completely potted with an epoxy compound for vibration resistance and installs with sturdy vibration mounts. For use with MSD 7 and 8 series ignitions.
Recommended Use: Strip
Coil Style: 1 Tower
Primary Resistance: 0.016 Ohm
Secondary Resistance: 0.03 Kilo Ohm
Maximum Voltage: 45000 Volt
Internal Construction: Epoxy Filled
Color: Red

Features

  • Designed For Racing Applications With An MSD 7 Series Ignition Control
  • New U-Core Winding Design Produces More Voltage And Current
  • 70:1 Turns Ratio And Lower Primary Resistance Produce High Voltage Output
  • Windings Are Encased In Fracture Resistant Compound For Vibration Resistance
  • DuPont Rynite Housing With Isolated Tower And Brass Primary Terminals
  • Supplied With Rubber Shock Mounts
  • Limited 1 Year Warranty
Specifications of MSD Ignition Ignition Coil 8261
Coil Style 1 Tower
Color Red
Internal Construction Epoxy Filled
Maximum Voltage 45000 Volt
Primary Resistance 0.016 Ohm
Recommended Use Strip
Secondary Resistance 0.03 Kilo Ohm
