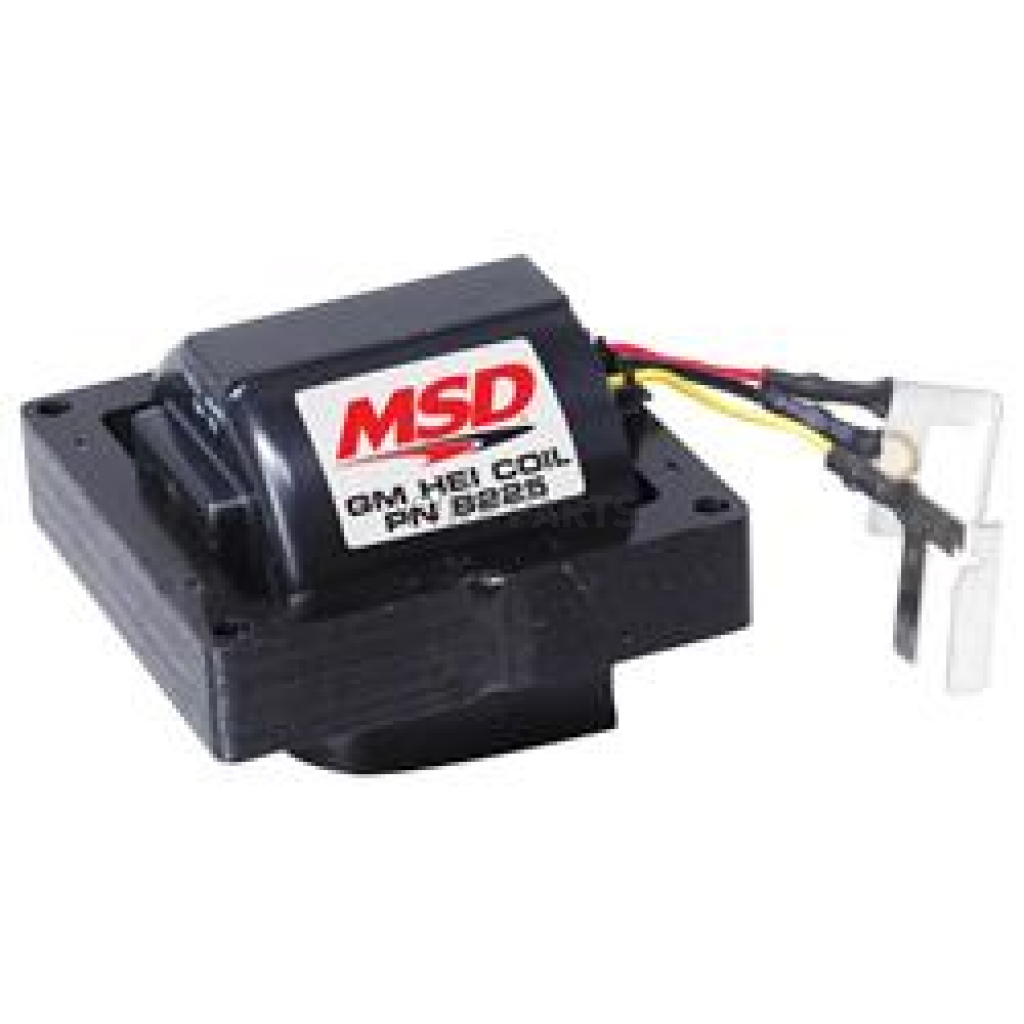

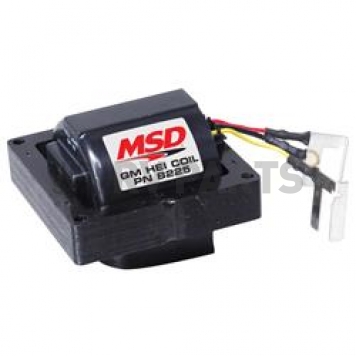

MSD Ignition Ignition Coil 8225

Authorized Dealer
Brand: MSD Ignition MSD Ignition
0 reviews
  • Have a product question? Ask us
  • Part Number: 8225
  • Part Location: U.S.
  • Availability: 35 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 07
Retail: $141.74
Price: $134.99
You Save: $6.75
Coil Style
HEI
Color
Black
Internal Construction
Epoxy Filled
Maximum Voltage
42000 Volt
Primary Resistance
0.31 Ohm
Recommended Use
Street
Secondary Resistance
9.2 Kilo Ohm
Share this page

MSD Ignition Ignition Coil

Ignition Coil; HEI; 42000 Volts; 0.31 Ohms Primary Resistance/9.2K Ohms Secondary Resistance/70:1 Turns Ratio/3.5mH Inductance/200mA Peak Current/200uS Spark Duration; Black

MPN: 8225

HEI owners now have a choice to replace their stock coil with the MSD high energy unitized coil for GM HEI distributors. This coil is a direct replacement of the stock coil and offers increased spark energy when used with the MSD HEI module. The coil features special low inductance, high temperature windings which charge faster to give you increased spark energy at higher RPM. The premium epoxy filled construction is designed to withstand harsh race applications as well as the wear and tear that daily usage dishes out, and still deliver more spark energy to the spark plugs.
Recommended Use: Street
Coil Style: HEI
Primary Resistance: 0.31 Ohm
Secondary Resistance: 9.2 Kilo Ohm
Maximum Voltage: 42000 Volt
Internal Construction: Epoxy Filled
Color: Black

Features

  • Direct Performance Replacement For GM HEI Coil-In-Cap Distributors
  • 70:1 Turns Ratio And Lower Primary Resistance Produce High Voltage Output
  • Full Power Sparks To 9000 RPM When Used With MSD HEI Module
  • CARB EO Approved
  • Limited 1 Year Warranty
Specifications of MSD Ignition Ignition Coil 8225
Coil Style HEI
Color Black
Internal Construction Epoxy Filled
Maximum Voltage 42000 Volt
Primary Resistance 0.31 Ohm
Recommended Use Street
Secondary Resistance 9.2 Kilo Ohm
