MSD Ignition Ignition Coil 8207

Authorized Dealer
Brand: MSD Ignition MSD Ignition
0 reviews
  • Have a product question? Ask us
  • Part Number: 8207
  • Part Location: U.S.
  • Availability: 92 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 07
Retail: $88.19
Price: $83.99
You Save: $4.20
Coil Style
1 Tower
Color
Red
Diameter (IN)
Not Applicable
Maximum Voltage
40000 Volt
Primary Resistance
0.355 Ohm
Recommended Use
Street
Secondary Resistance
4.4 Kilo Ohm
Share this page

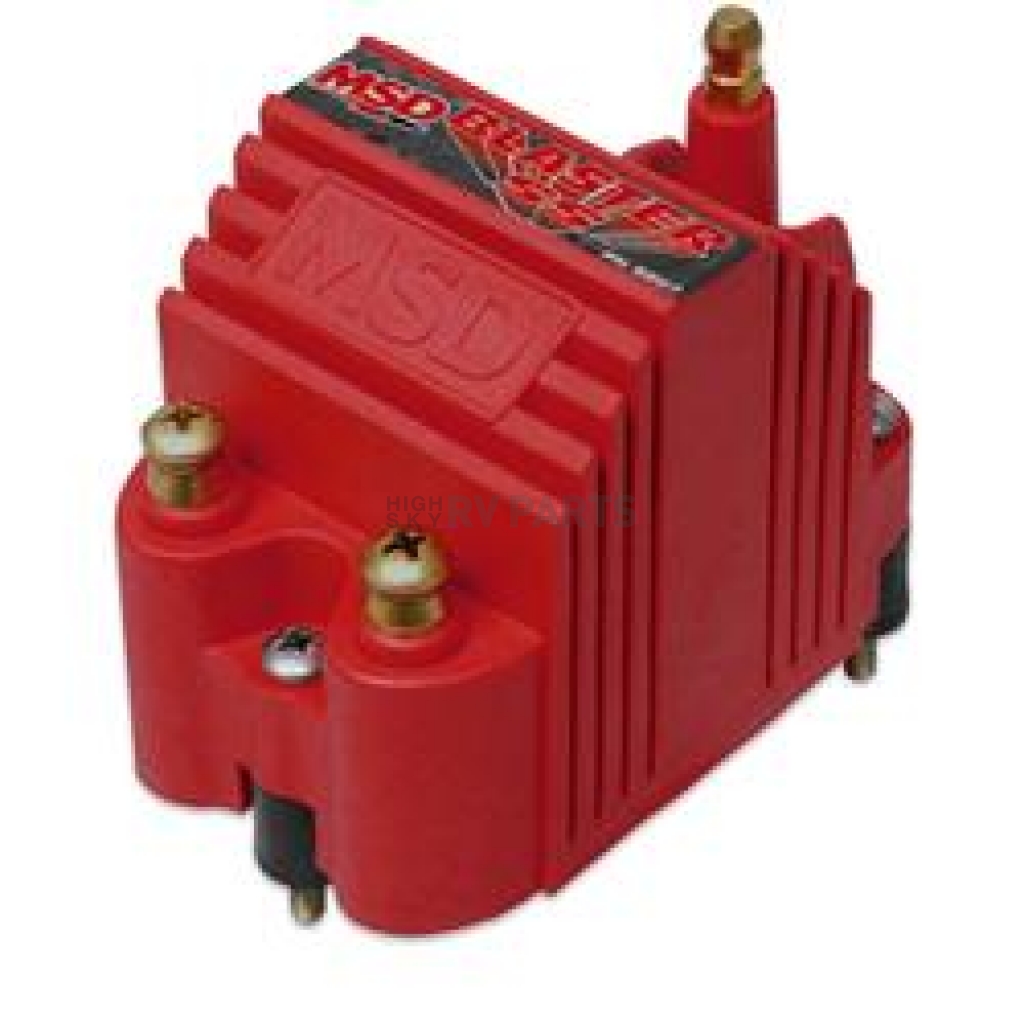

MSD Ignition Ignition Coil

Ignition Coil; Blaster SS; Single Tower Coil; 40000 Volts; 0.355 Ohms Primary Resistance/4.4K Secondary Resistance/70:1 Turns Ratio/6.9mH Inductance/300mA Peak Current/220uS Spark Duration; Effective Up To 12500 RPM; Red

MPN: 8207

Don’t let the compact size of the blaster SS Coil fool you, because it is packed with performance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 series ignition, the blaster SS produces 300 Milli Ampere with a maximum voltage output of 40,000 Volts! The secondary windings are wound on a segmented bobbin which reduces the chance of voltage breakdown between the primary and secondary windings. For more protection, these windings are encased in a polyurethane compound for complete protection against vibration. The blaster SS features brass terminals and a sturdy Rynite housing. It is supplied with a 90 Degree boot, terminal and vibration mounts. A great addition to CD ignitions and some stock applications.
Recommended Use: Street
Coil Style: 1 Tower
Primary Resistance: 0.355 Ohm
Secondary Resistance: 4.4 Kilo Ohm
Maximum Voltage: 40000 Volt
Diameter (IN): Not Applicable
Color: Red

Features

  • Improved Output Coil For Electronic Ignitions, And MSD Ignitions
  • Efficient Winding Design And Assembly Creates A Compact Housing
  • Primary And Secondary Windings Are Encased In Ciba Polyurethane For Vibration Protection
  • 70:1 Turns Ratio And Lower Primary Resistance Produce High Voltage Output
  • DuPont Rynite Housing With A Tall Tower And Brass Primary Terminals
  • CARB EO Approved
  • Limited 1 Year Warranty
Specifications of MSD Ignition Ignition Coil 8207
Coil Style 1 Tower
Color Red
Diameter (IN) Not Applicable
Maximum Voltage 40000 Volt
Primary Resistance 0.355 Ohm
Recommended Use Street
Secondary Resistance 4.4 Kilo Ohm
