MSD Ignition Ignition Coil 8200MSD

Authorized Dealer
Brand: MSD Ignition MSD Ignition
0 reviews
  • Have a product question? Ask us
  • Part Number: 8200MSD
  • Part Location: U.S.
  • Availability: 2 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 07
Retail: $90.29
Price: $85.99
You Save: $4.30
Includes Ballast Resistor
Yes
Includes Mounting Bracket
No
Maximum Voltage
45000 Volt
Primary Resistance
0.7 Ohms
Secondary Resistance
4.5K Ohms
Share this page

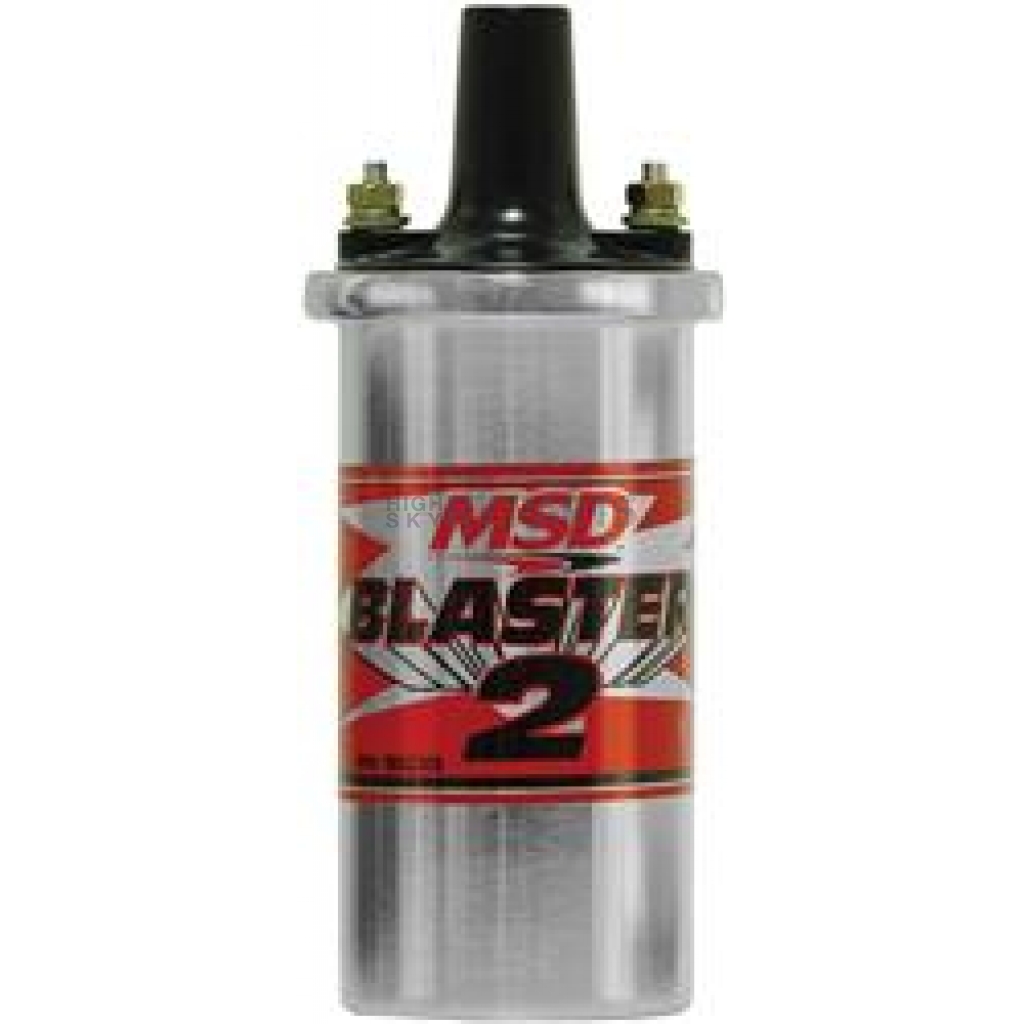

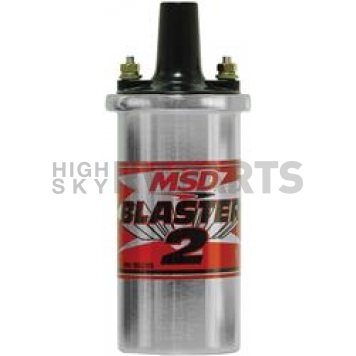

MSD Ignition Ignition Coil

Ignition Coil; Blaster 2; Canister; 45000 Volts; 0.7 Ohms Primary Resistance/4.5K Ohms Secondary Resistance/100:1 Turns Ratio/8mH Inductance/140mA Peak Current/350uS Spark Duration; Chrome

MPN: 8200MSD

If you are looking to upgrade your stock coil, or want to compliment the performance of your MSD Blaster Ignition, MSD 5, 6 or 7, the Blaster Coil line is the right choice. Our Blaster Coils are designed for improved spark output. Special 100:1 windings are used to provide maximum build-up of voltage. These windings are held secure and kept cool in an oil filled metal canister. The tower assembly is molded of durable alkyd material due to its high dielectric characteristics while wide spaced brass primary terminals prevent the possibility of spark. Each Blaster Coil can be used with a stock ignition, Blaster Ignition, MSD 5, 6 or 7 Ignition Control. Most late model vehicles with electronic ignitions do not require a ballast resistor, check your ignition and manufacturers specifications to determine if a ballast is required in your application. Mallory Unilite applications also require the ballast resistor.
Primary Resistance: 0.7 Ohms
Secondary Resistance: 4.5K Ohms
Maximum Voltage: 45000 Volt
Includes Ballast Resistor: Yes
Includes Mounting Bracket: No

Features

  • 100:1 Turns Ratio And Lower Primary Resistance Produce High Voltage Output
  • Metal Canister Is Filled With A Premium Grade Oil For Cooling
  • CARB E.O. Approved
  • Limited 1 Year Warranty
Specifications of MSD Ignition Ignition Coil 8200MSD
Includes Ballast Resistor Yes
Includes Mounting Bracket No
Maximum Voltage 45000 Volt
Primary Resistance 0.7 Ohms
Secondary Resistance 4.5K Ohms
