MSD Ignition Gauge Shift Light 89631

Authorized Dealer
Brand: MSD Ignition MSD Ignition
0 reviews
  • Have a product question? Ask us
  • Part Number: 89631
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $333.89
Price: $317.99
You Save: $15.90
Color
Black
Diameter (IN)
1-1/2 Inch
Length (IN)
4 Inch
Lens Type
LED
Operation Type
Programmable
RPM Detection Range
100 To 15900 RPM In 10 RPM Increments
Type
Adjustable
With RPM Module
Yes
Share this page

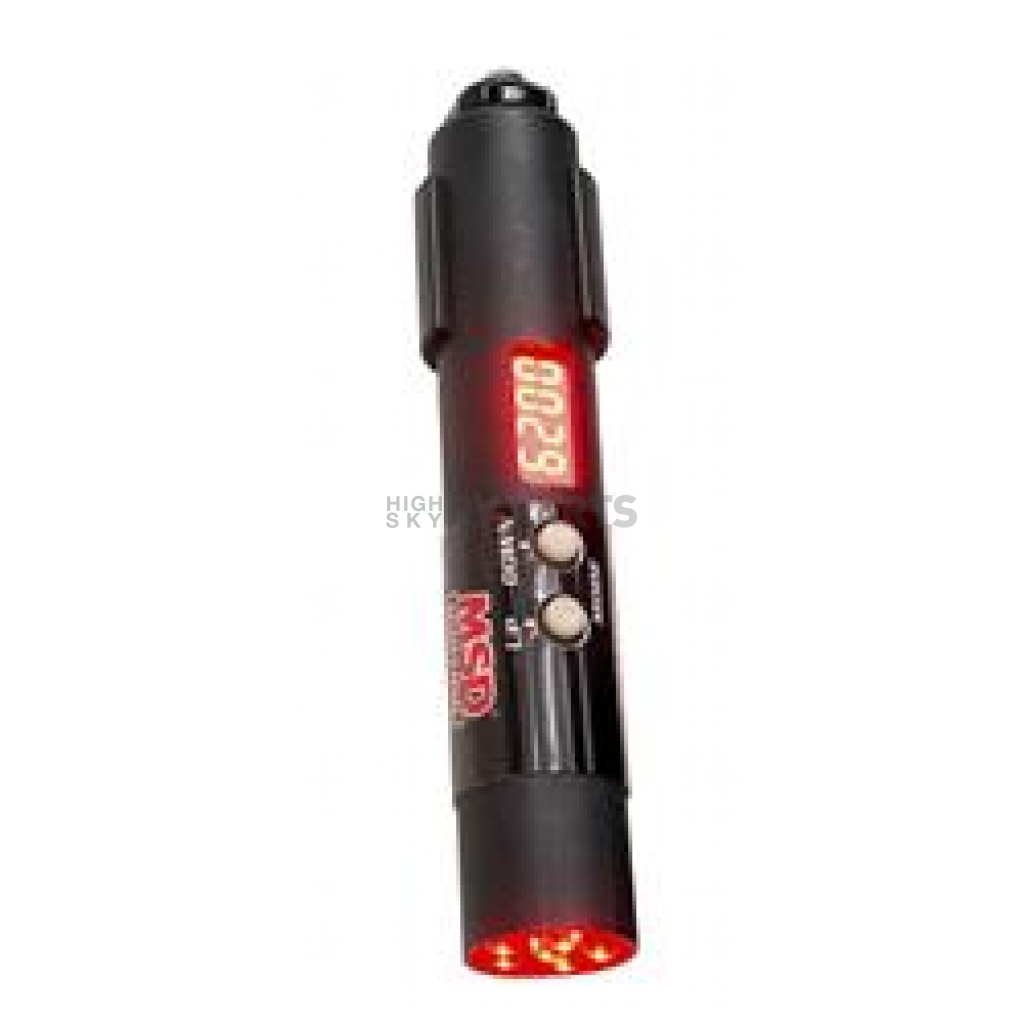

MSD Ignition Gauge Shift Light

Gauge Shift Light; Determined By RPM Module; 1-1/2 Inch Diameter x 4-1/2 Inch Length; LED; Set By RPM Module

MPN: 89631

The most universal and easy to use shift light available! Our new compact digital shift light can be installed on every thing from 1 cylinder points triggered engines to modular Ford engines with coil-on-plug technology. The tiny digital controller inside the compact housing gives you the ability to program the RPM activation points through the easy to view LED panel and two programming buttons. When the engine reaches the activation RPM, the six red LEDs illuminate brightly to alert your senses into throwing the shifter at the exact RPM. The DSL can be installed on single cylinder engines up through 12 cylinders on stock ignitions or high powered aftermarket systems.
RPM Detection Range: 100 To 15900 RPM In 10 RPM Increments
Type: Adjustable
Lens Type: LED
Operation Type: Programmable
Color: Black
Diameter (IN): 1-1/2 Inch
Length (IN): 4 Inch
With RPM Module: Yes

Features

  • Programmable From 100 To 15900 RPM Down To 10 RPM Increments
  • Six Bright LEDs Are Easy To View In Daylight And Can Be Dimmed At Night
  • Supplied With An Easy To Install GMR Pickup
  • Installs With Distributors, Coil Packs Or Coil-On-Plug Systems Ranging From Single To 12 Cylinders
  • Limited 1 Year Warranty
Specifications of MSD Ignition Gauge Shift Light 89631
Color Black
Diameter (IN) 1-1/2 Inch
Length (IN) 4 Inch
Lens Type LED
Operation Type Programmable
RPM Detection Range 100 To 15900 RPM In 10 RPM Increments
Type Adjustable
With RPM Module Yes
