MSD Ignition Distributor 8570
Cap Color
Red
Cap Type
HEI/ Male Posts
Coil In Cap
No
Condition
New
Drive Gear Type
Iron Gear
Includes Cap And Rotor
Yes
Recommended Use
Street/ Strip
Spark Advance Type
Mechanical Advance
Spark Distribution Type
Magnetic Trigger
With Ignition Module
No
With Tach Drive
No
Share this page

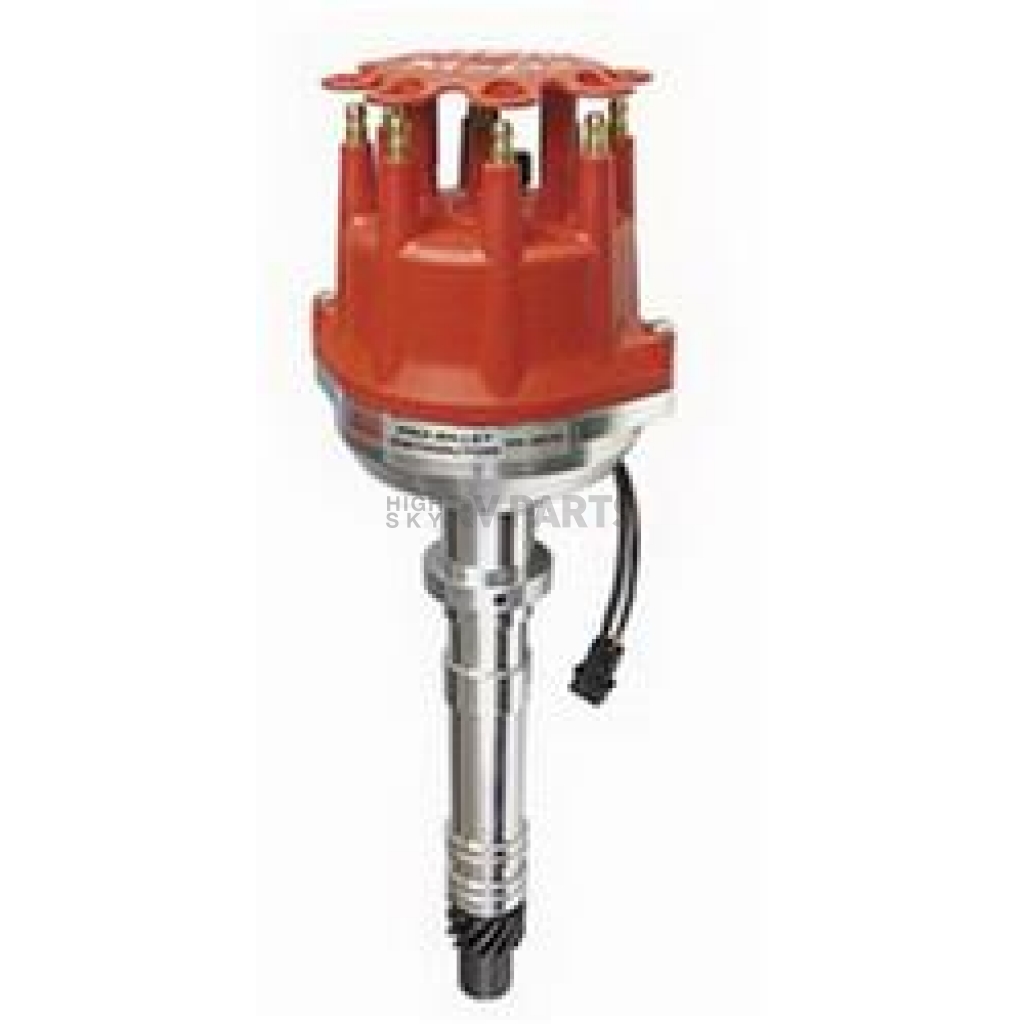

MSD Ignition Distributor
Distributor; Pro-Billet; For Use With Chevy V8 Engines; Small Diameter; Without Ignition Control Module; Magnetic Trigger; Mechanical Advance; With Iron Gear; Red Cap With HEI/Male Posts
MPN: 8570
This distributor was designed for racers and street rodders that have space limitations due to firewall interference, blowers or oversized intake manifolds such as tunnel rams. The distributor is 3/8 Inch narrower and almost 1 Inch shorter than a standard distributor. Proven performance features include a high output magnetic pickup and precision machined reluctor for accurate ignition triggering. A fully adjustable mechanical advance allows you to tailor the advance curve to your specific application. Topping it all off is our own small Diameter cap. This is molded out of durable Rynite® material and comes with an optional wire retainer.
Condition: New
Recommended Use: Street/ Strip
Spark Advance Type: Mechanical Advance
Spark Distribution Type: Magnetic Trigger
With Ignition Module: No
With Tach Drive: No
Drive Gear Type: Iron Gear
Includes Cap And Rotor: Yes
Cap Color: Red
Cap Type: HEI/ Male Posts
Coil In Cap: No
Features
- CNC Machined Billet Aluminum Housing Is 3/8 Inch Smaller In Diameter And 7/8 Inch Shorter Than Conventional Chevy V-8 Distributors With The “Points” Type Cap
- Maintenance Free Magnetic Pickup And Precision Reluctor Create Stable Trigger Signals Throughout The RPM Range
- Easy To Adjust Mechanical Advance With Supplied Springs And Stop Bushings
- Polished Steel Shaft Is QPQ Coated And Guided By A Sealed Ball Bearing, Advance Plate And Weights Are Fine Blanked From Chrome Moly Steel And QPQ Coated For Friction Reduction
- Advance Weight Pins Are Staked And TIG Welded To The Plate, Nylon Pads Ensure Smooth Operation Of The Advance Weights
- Mechanical Advance Assembly Can Be Locked Out For Crank Trigger Systems
- Special Oil Tract Improves Lubrication To The Distributor And Cam Gear, O-Ring Seals Can Be Added To Modified Blocks To Improve Oil Pressure Control
- Limited 1 Year Warranty
| Specifications of MSD Ignition Distributor 8570 | |
| Cap Color | Red |
| Cap Type | HEI/ Male Posts |
| Coil In Cap | No |
| Condition | New |
| Drive Gear Type | Iron Gear |
| Includes Cap And Rotor | Yes |
| Recommended Use | Street/ Strip |
| Spark Advance Type | Mechanical Advance |
| Spark Distribution Type | Magnetic Trigger |
| With Ignition Module | No |
| With Tach Drive | No |
1900-1900 Chevrolet Big Block 1965-1990 Gen IV
1900 Chevrolet Big Block 1965-1990 Gen IV
1900-1900 Chevrolet Big Block 1991-1995 Gen V
1900 Chevrolet Big Block 1991-1995 Gen V
1900-1900 Chevrolet Small Block 1955-1986
1900 Chevrolet Small Block 1955-1986
1900-1900 Chevrolet Small Block 1987-1998 (OE Roller)
1900 Chevrolet Small Block 1987-1998 (OE Roller)
1900-1900 Chevrolet Small Block 383
1900 Chevrolet Small Block 383
