MSD Ignition Distributor 8560

Authorized Dealer
Brand: MSD Ignition MSD Ignition
0 reviews
  • Have a product question? Ask us
  • Part Number: 8560
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 06
Retail: $623.69
Price: $593.99
You Save: $29.70
Cap Color
Red
Coil In Cap
Yes
Condition
New
Includes Cap And Rotor
Yes
Recommended Use
Marine
Spark Advance Type
Mechanical Advance
Spark Distribution Type
Magnetic Trigger
With Ignition Module
No
Share this page

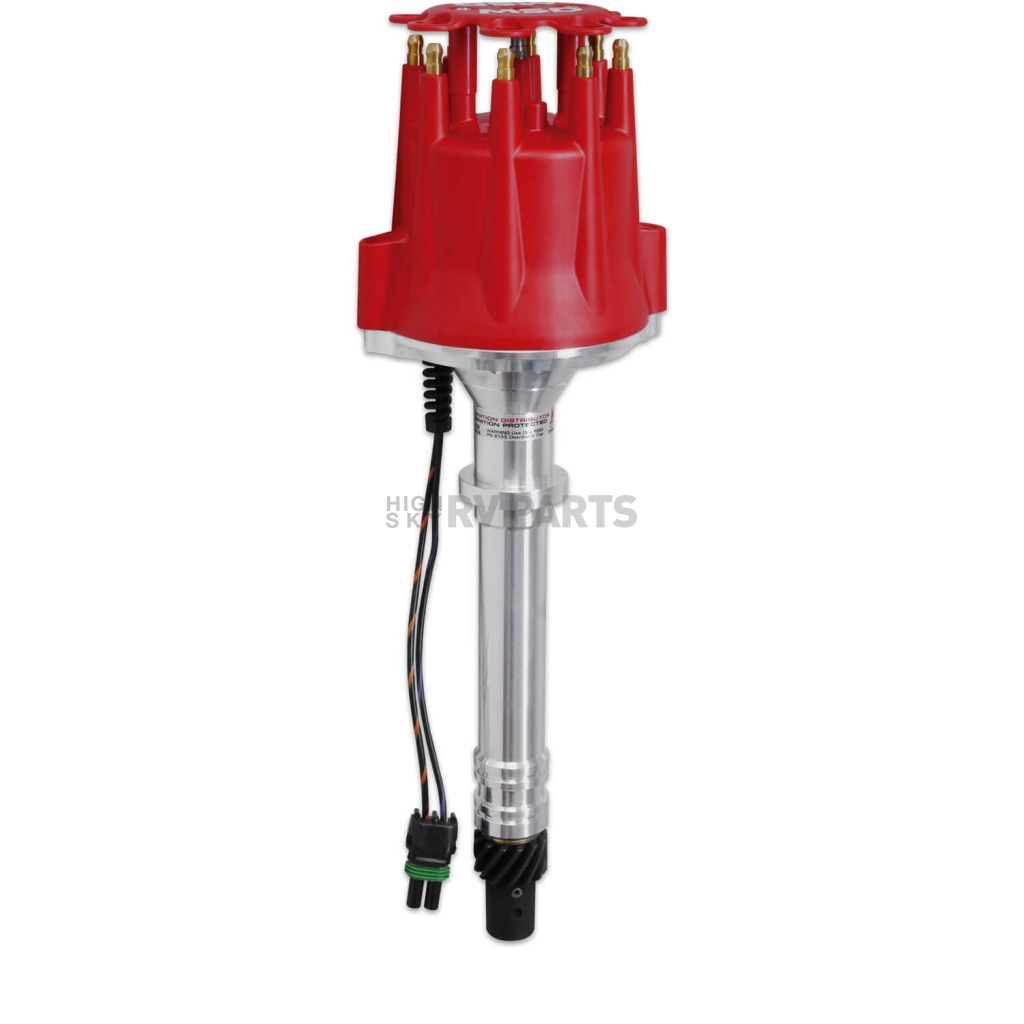

MSD Ignition Distributor

Distributor; Pro-Billet; For Use With Chevy V8 Marine Engines; Without Ignition Control Module; Magnetic Trigger; Mechanical Advance; Cap With HEI/Male Posts; Red

MPN: 8560

Marine environments place rigorous demands on every component of the ignition system, especially the distributor. The combination of water spray, salt exposure, full throttle acceleration and harsh vibrations all take their toll. The MSD Pro-Billet Distributor is the strongest and most accurate distributor you can put in your boat. The housing is CNC-machined from a billet of 6061-T6 aluminum creating a housing with no porosity. Internally, a QPQ coated shaft is guided by a sealed ball bearing and an extra long sintered bushing for high-speed stability. Each distributor uses MSD's race-proven magnetic pickup to trigger the ignition control. Mounted just above the pickup is a mechanical advance assembly that is easy to adjust so you can dial-in an ignition curve to match your boat's application (except PN 8366). For marine use, the distributor cap is bolted to the aluminum base. There are two flame arrestor holes with brass screens machined into the base of the distributor to prevent ignition of gas fumes that may build up in the engine compartment. A special Weathertight Connector is supplied to provide a positive-lock and water resistant connection.
Condition: New
Recommended Use: Marine
Spark Advance Type: Mechanical Advance
Spark Distribution Type: Magnetic Trigger
With Ignition Module: No
Includes Cap And Rotor: Yes
Cap Color: Red
Coil In Cap: Yes

Features

  • Weathertight Connectors Are Used For Locked And Sealed Connections
  • O-Ring Seals Can Be Added To Modified Blocks To Improve Oil Pressure Control
  • Special Oil Tract Improves Lubrication To The Distributor And Cam Gear
  • Mechanical Advance Assembly Can Be Locked Out For Crank Trigger Systems
  • Will Not Accept A Vacuum Advance Canister
  • Nylon Pads Ensure Smooth Operation Of The Advance Weights
  • Advance Plate And Weights Are Fine Blanked From Chrome Moly Steel And QPQ Coated For Friction Reduction
  • Maintenance-Free Magnetic Pickup And Precision Reluctor Create Stable Trigger Signals Throughout The Rpm Range
  • Easy-To-Adjust Mechanical Advance With Supplied Springs And Stop Bushings
  • Limited 90 Day Supplier Warranty
Specifications of MSD Ignition Distributor 8560
Cap Color Red
Coil In Cap Yes
Condition New
Includes Cap And Rotor Yes
Recommended Use Marine
Spark Advance Type Mechanical Advance
Spark Distribution Type Magnetic Trigger
With Ignition Module No
