MSD Ignition Distributor 85561

Authorized Dealer
Brand: MSD Ignition MSD Ignition
0 reviews
  • Have a product question? Ask us
  • Part Number: 85561
  • Part Location: U.S.
  • Availability: 100 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by May 29
Retail: $503.99
Price: $479.99
You Save: $24.00
Cap Color
Red
Cap Type
HEI/ Male Posts
Coil In Cap
No
Condition
New
Drive Gear Type
Iron Gear
Includes Cap And Rotor
Yes
Recommended Use
Street/ Strip
Spark Advance Type
Mechanical Advance
Spark Distribution Type
Magnetic Trigger
With Ignition Module
No
With Tach Drive
No
Share this page

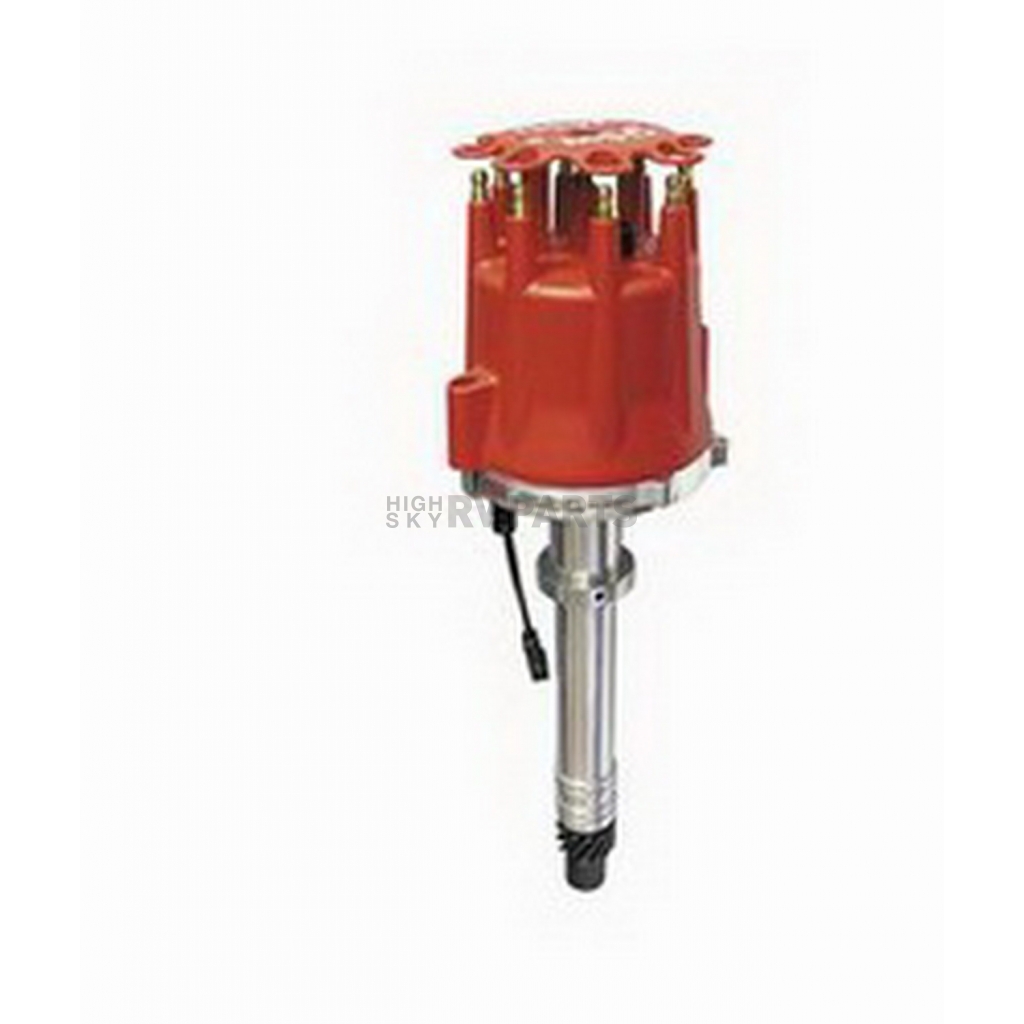

MSD Ignition Distributor

Distributor; Pro-Billet; For Use With Chevy V8 Engines; Without Ignition Control Module; Magnetic Trigger; Mechanical Advance; With Iron Gear; With Slip Collar; Red Cap With HEI/Male Posts

MPN: 85561

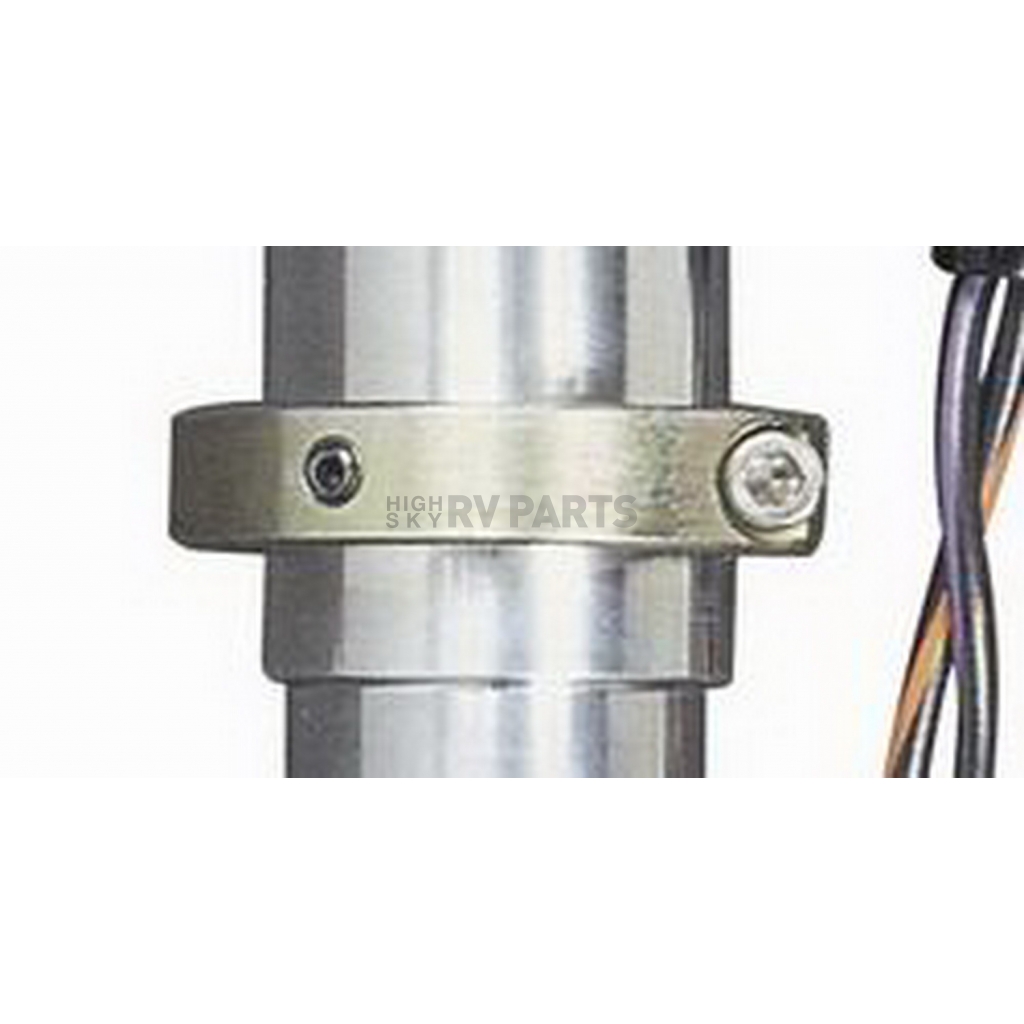

If you have a slightly taller block or have decked the heads, the distance between the distributor mounting pad and the cam gear/oil pump drive may be different. MSD offers these distributor with an adjustable slip collar with 1.5 Inch of adjustment so you can be sure the distributor is installed correctly. The distributor shares the same features of the standard Pro-Billet Chevrolet model including a ball bearing guide, long sintered lower bushing and an oil seal. To trigger the MSD ignition a maintenance free magnetic pickup is secured in the billet base of the distributor. Just above this pick up assembly is an adjustable mechanical advance assembly.
Condition: New
Recommended Use: Street/ Strip
Spark Advance Type: Mechanical Advance
Spark Distribution Type: Magnetic Trigger
With Ignition Module: No
With Tach Drive: No
Drive Gear Type: Iron Gear
Includes Cap And Rotor: Yes
Cap Color: Red
Cap Type: HEI/ Male Posts
Coil In Cap: No

Features

  • CNC Machined Billet Aluminum Housing And Billet Aluminum Base
  • Easy To Adjust Mechanical Advance With Supplied Springs And Stop Bushings
  • Maintenance Free Magnetic Pickup And Precision Reluctor Create Stable Trigger Signals Throughout The RPM Range
  • Polished Steel Shaft Is QPQ Coated And Guided By A Sealed Ball Bearing, Advance Plate And Weights Are Fine Blanked From Chrome Moly Steel And QPQ Coated For Friction Reduction
  • Mechanical Advance Assembly Can Be Locked Out For Crank Trigger Systems
  • Advance Weight Pins Are Staked And TIG Welded To The Plate, Nylon Pads Ensure Smooth Operation Of The Advance Weights
  • Limited 1 Year Warranty
Specifications of MSD Ignition Distributor 85561
Cap Color Red
Cap Type HEI/ Male Posts
Coil In Cap No
Condition New
Drive Gear Type Iron Gear
Includes Cap And Rotor Yes
Recommended Use Street/ Strip
Spark Advance Type Mechanical Advance
Spark Distribution Type Magnetic Trigger
With Ignition Module No
With Tach Drive No

1900 Chevrolet Big Block 1965-1990 Gen IV

1900 Chevrolet Big Block 1991-1995 Gen V

1900 Chevrolet Small Block 1955-1986

1900 Chevrolet Small Block 1987-1998 (OE Roller)

1900 Chevrolet Small Block 383
