MSD Ignition Distributor 85501

Authorized Dealer
Brand: MSD Ignition MSD Ignition
0 reviews
  • Have a product question? Ask us
  • Part Number: 85501
  • Part Location: U.S.
  • Availability: 14 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by July 03
Retail: $535.49
Price: $509.99
You Save: $25.50
Cap Color
Red
Cap Type
HEI/ Male Posts
Coil In Cap
No
Condition
New
Drive Gear Type
Bronze Gear
Includes Cap And Rotor
Yes
Recommended Use
Strip
Spark Distribution Type
Magnetic Trigger
With Ignition Module
No
With Tach Drive
No
Share this page

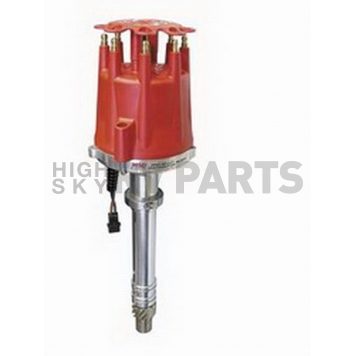

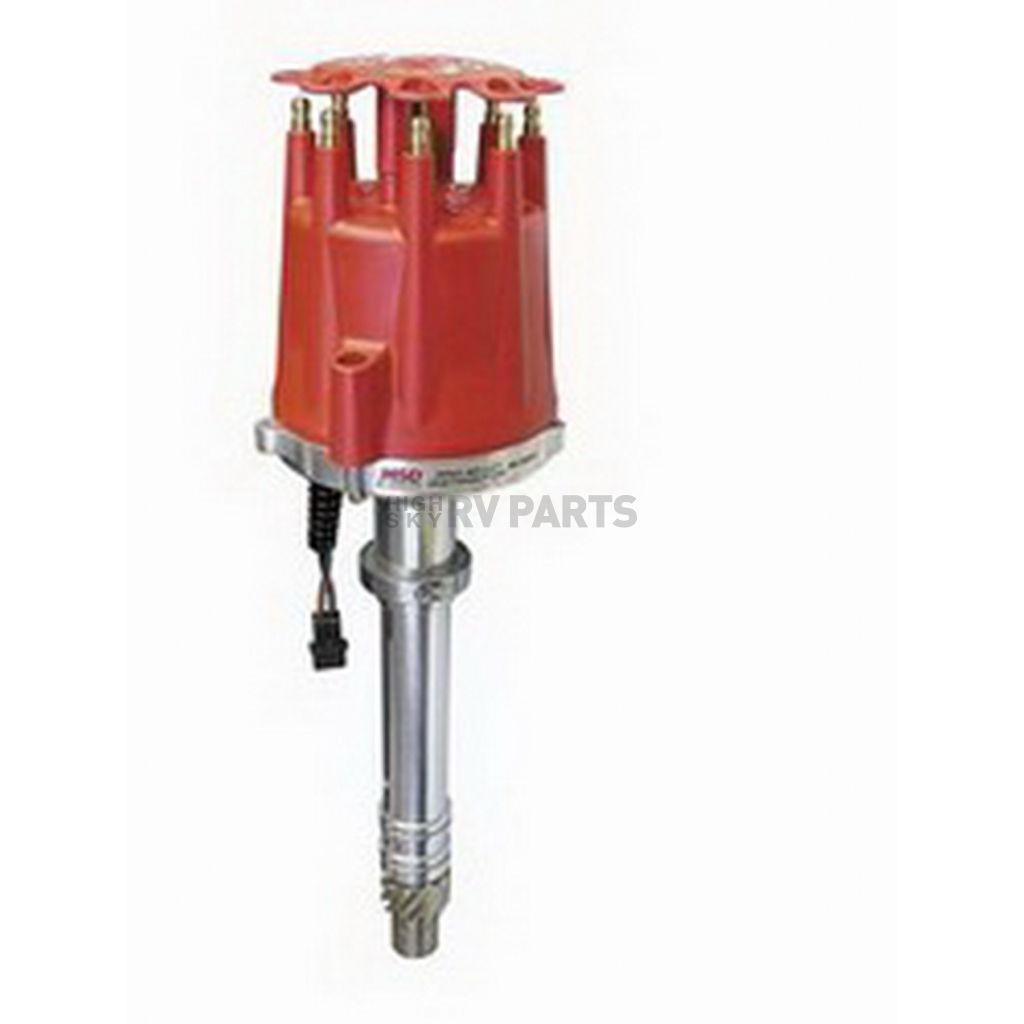

MSD Ignition Distributor

Distributor; Pro-Billet; For Use With Chevy V8 Engines; Without Ignition Control Module; Magnetic Trigger; Locked Out Timing; With Bronze Gear; Red Cap With HEI/Male Posts; Red

MPN: 85501

This strong, billet aluminum distributor is set up for engines that run locked out timing or an MSD timing computer. With no advance assembly, the rotor plate is welded directly to the oversized shaft. A sealed ball bearing guides the top of the shaft while an extra long sintered bushing stabilizes the lower portion. Trigger signals are produced via a high output magnetic pickup. This pickup is extremely accurate and never requires adjustment. Since this distributor is designed primarily for race engines, an oversized (+0.006 Inch) bronze gear is installed along with an adjustable slip collar for modified blocks, heads or intake manifolds.
Condition: New
Recommended Use: Strip
Spark Distribution Type: Magnetic Trigger
With Ignition Module: No
With Tach Drive: No
Drive Gear Type: Bronze Gear
Includes Cap And Rotor: Yes
Cap Color: Red
Cap Type: HEI/ Male Posts
Coil In Cap: No

Features

  • Designed Primarily For Race Applications With No Mechanical Advance
  • CNC Machined Billet Aluminum Housing And Billet Aluminum Base
  • Maintenance Free Magnetic Pickup And Precision Reluctor Create Stable Trigger Signals Throughout The RPM Range

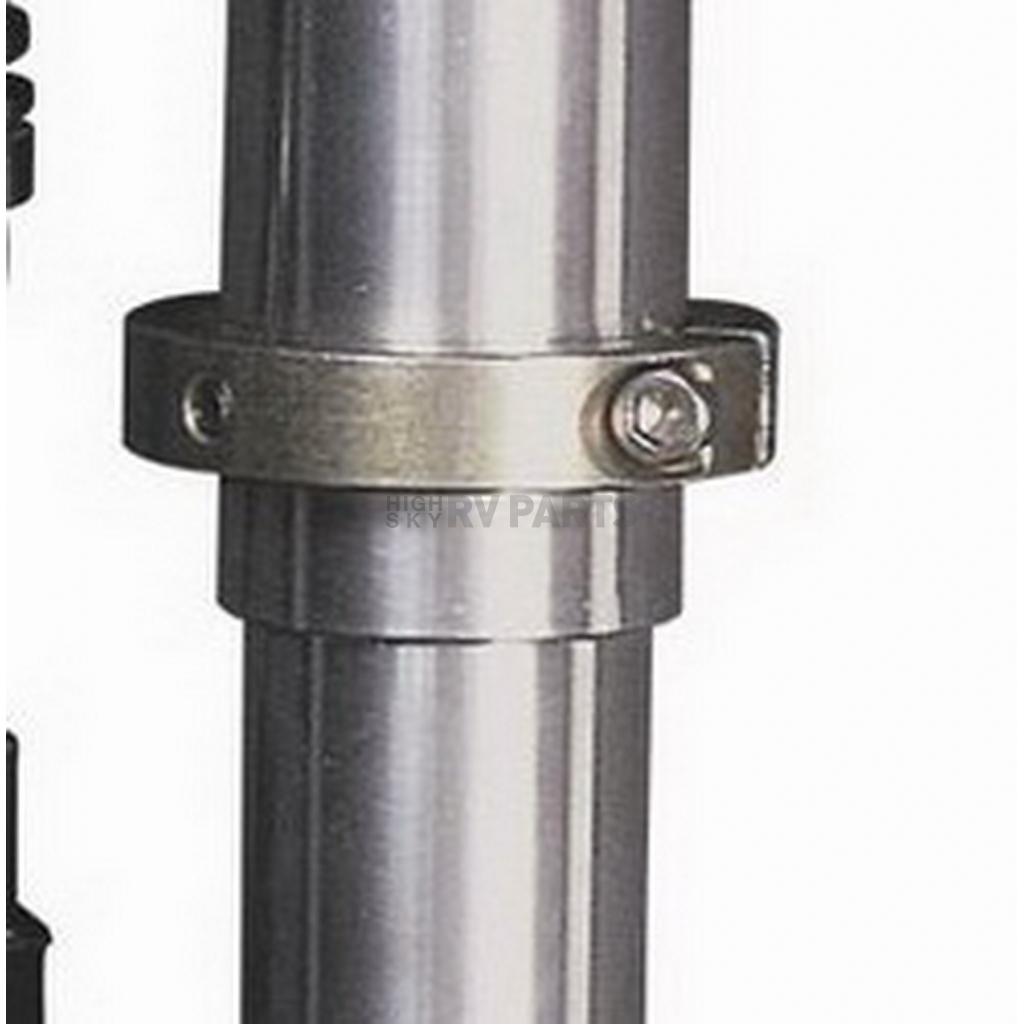

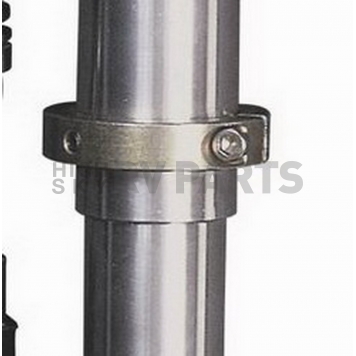

  • Adjustable Slip Collar Mounting Flange For Engines With Modified Deck Heights
  • Polished Steel Shaft Is QPQ Coated And Guided By A Sealed Ball Bearing
  • Special Oil Tract Improves Lubrication To The Distributor And Cam Gear
  • O-Ring Seals Can Be Added To Modified Blocks To Improve Oil Pressure Control
  • Limited 1 Year Warranty
Specifications of MSD Ignition Distributor 85501
Cap Color Red
Cap Type HEI/ Male Posts
Coil In Cap No
Condition New
Drive Gear Type Bronze Gear
Includes Cap And Rotor Yes
Recommended Use Strip
Spark Distribution Type Magnetic Trigger
With Ignition Module No
With Tach Drive No

1900 Chevrolet Big Block 1965-1990 Gen IV

1900 Chevrolet Big Block 1991-1995 Gen V

1900 Chevrolet Small Block 1955-1986

1900 Chevrolet Small Block 1987-1998 (OE Roller)

1900 Chevrolet Small Block 383
