MSD Ignition Distributor 8516

Authorized Dealer
Brand: MSD Ignition MSD Ignition
0 reviews
  • Have a product question? Ask us
  • Part Number: 8516
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 10
Retail: $662.54
Price: $630.99
You Save: $31.55
Cap Color
Red
Cap Type
HEI/ Male Posts
Coil In Cap
No
Condition
New
Drive Gear Type
Iron Gear
Includes Cap And Rotor
Yes
Recommended Use
Street
Spark Advance Type
Vacuum And Mechanical Advance
Spark Distribution Type
Magnetic Trigger
With Ignition Module
No
With Tach Drive
No
Share this page

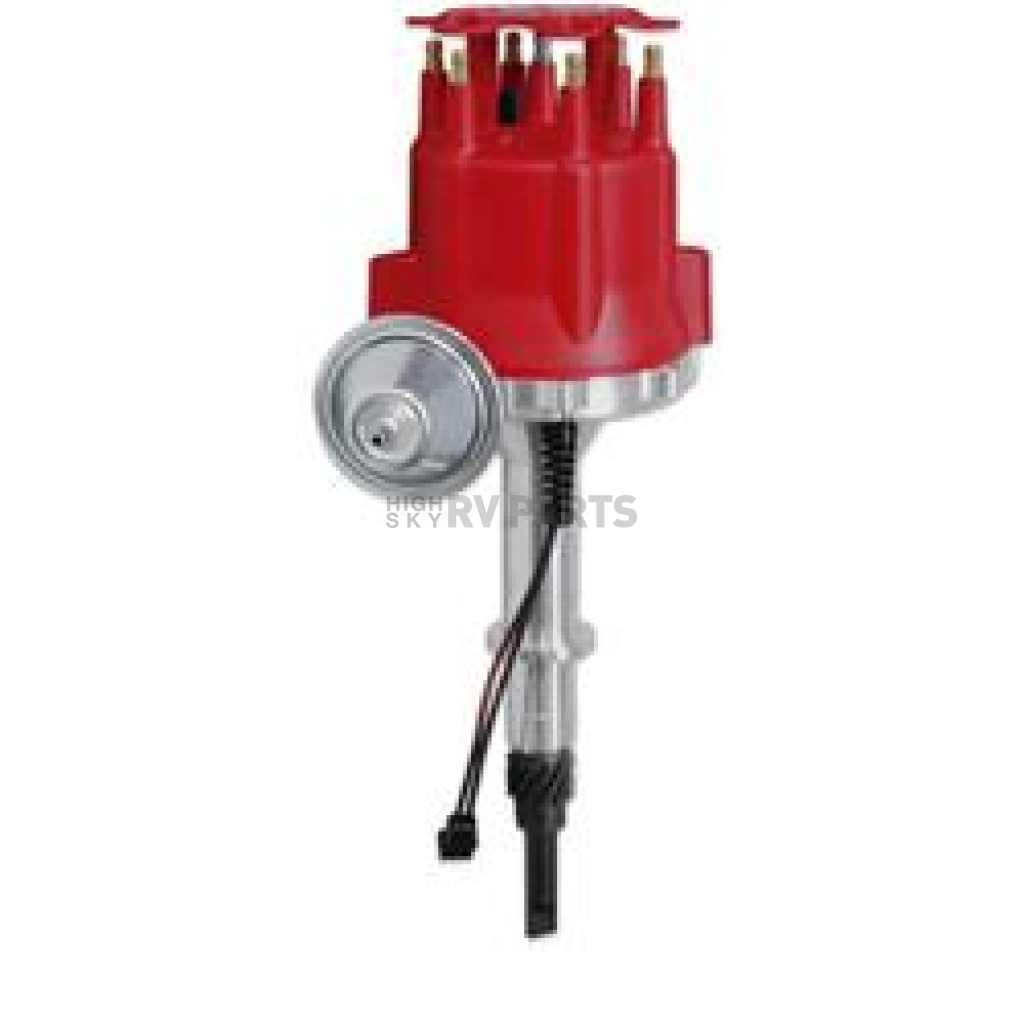

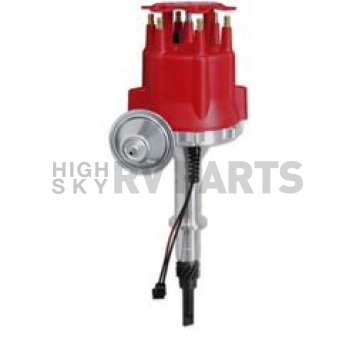

MSD Ignition Distributor

Distributor; Pro-Billet; For Use With Jeep Inline 6 Cylinder 232/258 Cubic Inch Engines; Without Ignition Control Module; Magnetic Trigger; Vacuum and Mechanical Advance; Red Cap With HEI/Male Posts

MPN: 8516

There is a big following of AMC enthusiasts that are cruising a 401 equipped Javelin or trail blazing in a rock crawling Jeep with an inline 6-cylinder! MSD offers two Pro-Billet distributors to deliver accurate trigger signals and are maintenance free! Under the brass terminal cap of each distributor is MSD’s race proven magnetic pickup. This pick up never requires adjustment and simply plugs right into an MSD ignition control. Just above it and under our strong race rotor is an adjustable mechanical advance assembly. The chro-moly weights of this assembly slide on nylon bushings producing smooth movement of the timing. You can easily adjust the curve to match your engine’s requirements with the supplied springs and stop bushings. Each precision CNC machined billet aluminum housing features a sealed ball bearing and long sintered bushing for stability at any RPM and increased endurance. An oversized steel shaft receives a QPQ coating to reduce friction and prevent corrosion. Both distributors are supplied with a high quality cap, rotor and gear. There is even a vacuum advance canister for street cruising economy!
Condition: New
Recommended Use: Street
Spark Advance Type: Vacuum And Mechanical Advance
Spark Distribution Type: Magnetic Trigger
With Ignition Module: No
With Tach Drive: No
Drive Gear Type: Iron Gear
Includes Cap And Rotor: Yes
Cap Color: Red
Cap Type: HEI/ Male Posts
Coil In Cap: No

Features

  • Designed For Street/Performance Use With A Mechanical And Vacuum Advance, Easy To Adjust Mechanical Advance With Supplied Springs And Stop Bushings
  • Vacuum Advance Canister For Improved Economy (Can Be Locked Out)
  • CNC Machined Billet Aluminum Housing And Billet Aluminum Base
  • Maintenance Free Magnetic Pickup And Precision Reluctor Create Stable Trigger Signals Throughout The RPM Range
  • Polished Steel Shaft Is QPQ Coated And Guided By A Sealed Ball Bearing, Advance Plate And Weights Are Fine Blanked From Chrome Moly Steel And QPQ Coated For Friction Reduction
  • Mechanical Advance Assembly Can Be Locked Out For Crank Trigger Systems
  • CARB EO Approved
  • Limited 1 Year Warranty
Specifications of MSD Ignition Distributor 8516
Cap Color Red
Cap Type HEI/ Male Posts
Coil In Cap No
Condition New
Drive Gear Type Iron Gear
Includes Cap And Rotor Yes
Recommended Use Street
Spark Advance Type Vacuum And Mechanical Advance
Spark Distribution Type Magnetic Trigger
With Ignition Module No
With Tach Drive No
