MSD Ignition Distributor 8486

Authorized Dealer
Brand: MSD Ignition MSD Ignition
0 reviews
  • Have a product question? Ask us
  • Part Number: 8486
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 10
Retail: $518.69
Price: $493.99
You Save: $24.70
Cap Color
Red
Cap Type
Crab Style With HEI/ Male Posts
Coil In Cap
No
Condition
New
Drive Gear Type
Bronze Gear
Includes Cap And Rotor
Yes
Recommended Use
Strip
Spark Distribution Type
Crank Trigger
With Ignition Module
No
With Tach Drive
No
Share this page

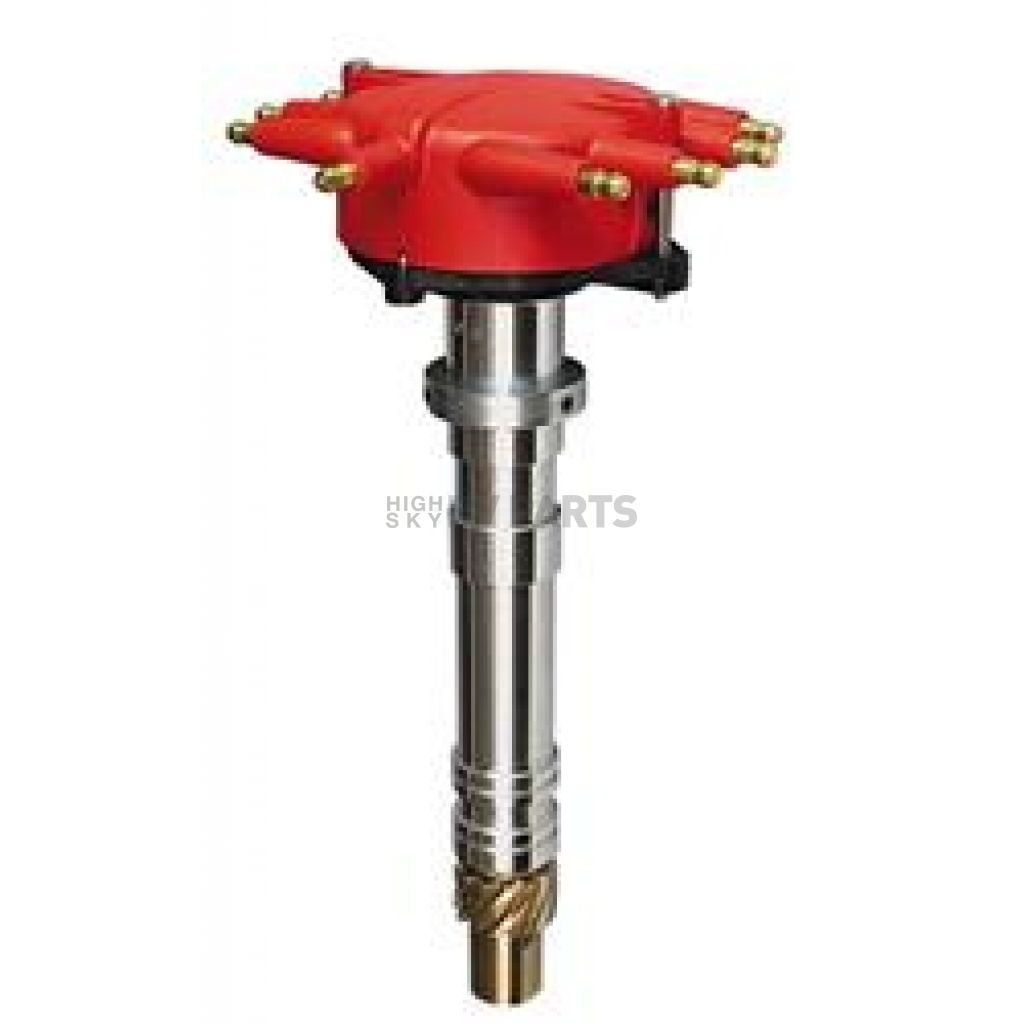

MSD Ignition Distributor

Distributor; For Use With Chevy V8 Engines With Super Tall Block; Without Ignition Control Module; Crank Trigger; Locked Out Timing; With Bronze Gear; Red Crab Cap With HEI/Male Posts

MPN: 8486

The MSD crab cap distributors are built specifically for racing engines with almost no room for a distributor due to tunnel rams or blowers. The distributor is equipped with a special low profile crab style distributor cap to allow it to fit in extremely tight areas. The housing features two optional O-Rings at the bottom that improve oil control by preventing oil pressure loss. Also, a small oil bleed hole located in the base sprays oil on the distributor and camshaft gears to prevent excessive wear. Since this is a racing distributor, there is an adjustable slip collar to make up for engines that have had the distance between the mounting surface and the gear modified. Crowning this distributor is MSD’s own crab cap! This cap incorporates spark plug style terminals for a better connection and grip to the plug wires.
Condition: New
Recommended Use: Strip
Spark Distribution Type: Crank Trigger
With Ignition Module: No
With Tach Drive: No
Drive Gear Type: Bronze Gear
Includes Cap And Rotor: Yes
Cap Color: Red
Cap Type: Crab Style With HEI/ Male Posts
Coil In Cap: No

Features

  • CNC Machined Billet Aluminum Housing And DuPont Rynite Base
  • Adjustable Slip Collar For Engines With Modified Deck Heights
  • Oversized Polished Steel Shaft With A QPQ Coating For Friction Reduction
  • Shaft Is Guided By A Sealed Ball Bearing And An Extra Long Sintered Bushing
  • Special Oil Tract Improves Lubrication To The Distributor And Cam Gear
  • O-Ring Seals Can Be Added To Modified Blocks To Improve Oil Pressure Control
  • Supplied With Small, Low Crab Style Distributor Cap, Rotor And Bronze Gear
  • Limited 90 Day Warranty
Specifications of MSD Ignition Distributor 8486
Cap Color Red
Cap Type Crab Style With HEI/ Male Posts
Coil In Cap No
Condition New
Drive Gear Type Bronze Gear
Includes Cap And Rotor Yes
Recommended Use Strip
Spark Distribution Type Crank Trigger
With Ignition Module No
With Tach Drive No

1900 Chevrolet Big Block 1965-1990 Gen IV

1900 Chevrolet Big Block 1991-1995 Gen V

1900 Chevrolet Small Block 1955-1986

1900 Chevrolet Small Block 1987-1998 (OE Roller)

1900 Chevrolet Small Block 383
