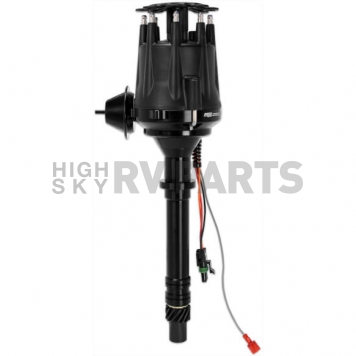

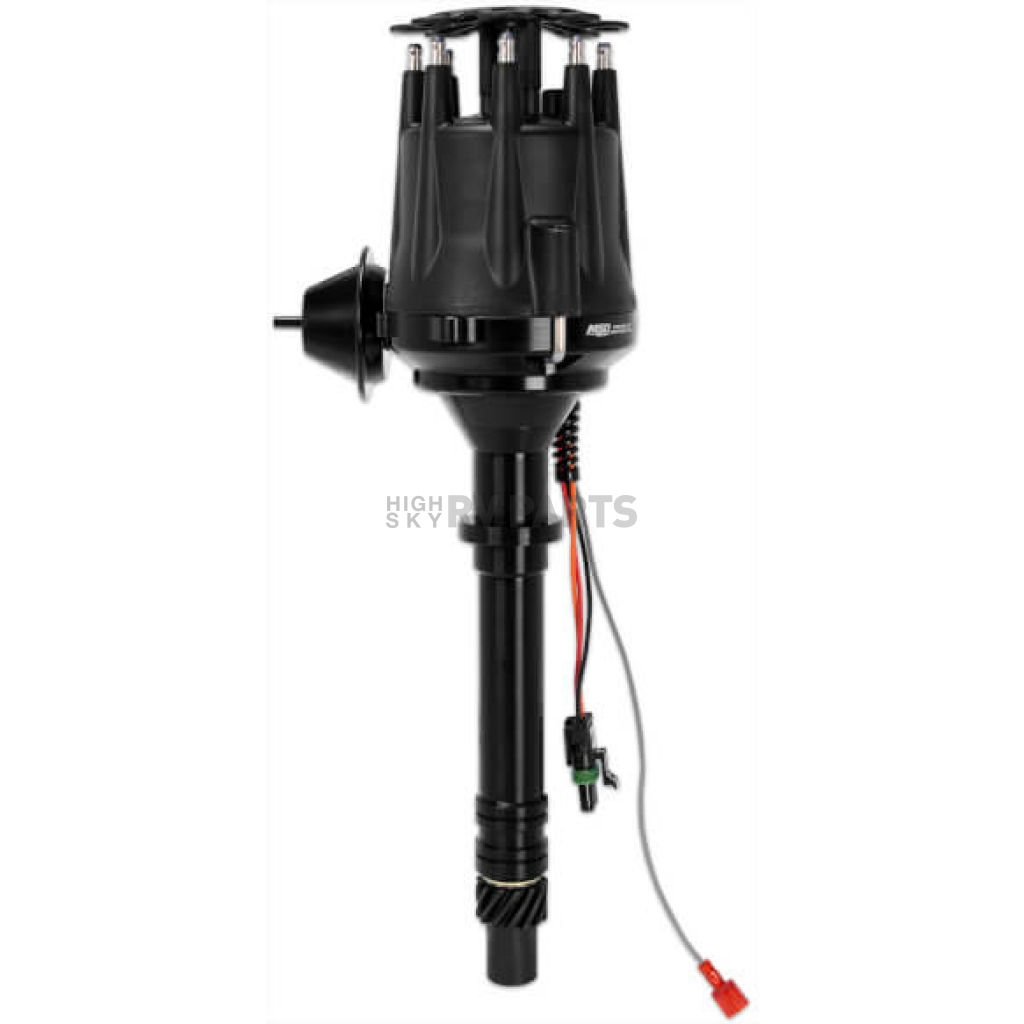

MSD Ignition Distributor 83603
MSD Ignition Distributor
Distributor; Ready-To-Run; For Use With Chevy V8 Engines; With Ignition Control Module; Magnetic Trigger; Vacuum and Mechanical Advance; With Iron Gear; All Black With HEI/Male Posts
MPN: 83603
Features
- Supplied With An HEI Style Distributor Cap And Rotor; O-Ring Seals Can Be Added To Modified Blocks To Improve Oil Pressure Control
- Special Oil Tract Improves Lubrication To The Distributor And Cam Gear
- Nylon Pads Ensure Smooth Operation Of The Advance Weights; Vacuum Advance Canister For Improved Economy
- Easy-To-Adjust Mechanical Advance With Supplied Springs And Stop Bushings; Powerful Built-In Module Produces A 7.5 Ampere Single Spark Through High RPM
- CNC Machined Billet Aluminum Housing And Billet Aluminum Base; Polished Steel Shaft Is QPQ Coated And Guided By A Sealed Ball Bearing
- Maintenance-Free Magnetic Pickup And Precision Reluctor Create Stable Trigger Signals Throughout The RPM Range
- Advance Plate And Weights Are Fine Blanked From Chrome Moly Steel And QPQ Coated For Friction Reduction
- Mechanical Advance Assembly Can Be Locked Out For Crank Trigger Systems; Advance Weight Pins Are Staked And Tig Welded To The Plate, CARB E.O. Approved
- Simple And Clean Installation With Only Three Wires To Connect
- Limited 1 Year Warranty
Specifications of MSD Ignition Distributor 83603 | |
Cap Color | Black |
Coil In Cap | Yes |
Condition | New |
Finish | Anodized |
Includes Cap And Rotor | Yes |
Recommended Use | Street |
Spark Advance Type | Mechanical Advance |
Spark Distribution Type | Magnetic Trigger |
With Ignition Module | No |
With Tach Drive | No |
1900-1900 Chevrolet Big Block 1965-1990 Gen IV
1900-1900 Chevrolet Big Block 1991-1995 Gen V
1900-1900 Chevrolet Small Block 1955-1986
1900-1900 Chevrolet Small Block 1987-1998 (OE Roller)
1900-1900 Chevrolet Small Block 383
