MSD Ignition Distributor 8356
Cap Color
Red
Cap Type
HEI/ Male Posts
Coil In Cap
No
Condition
New
Drive Gear Type
Iron Gear
Includes Cap And Rotor
Yes
Recommended Use
Track/ Off-Road
Spark Advance Type
Mechanical Advance
Spark Distribution Type
Dual Magnetic Trigger
With Ignition Module
No
With Tach Drive
No
Share this page

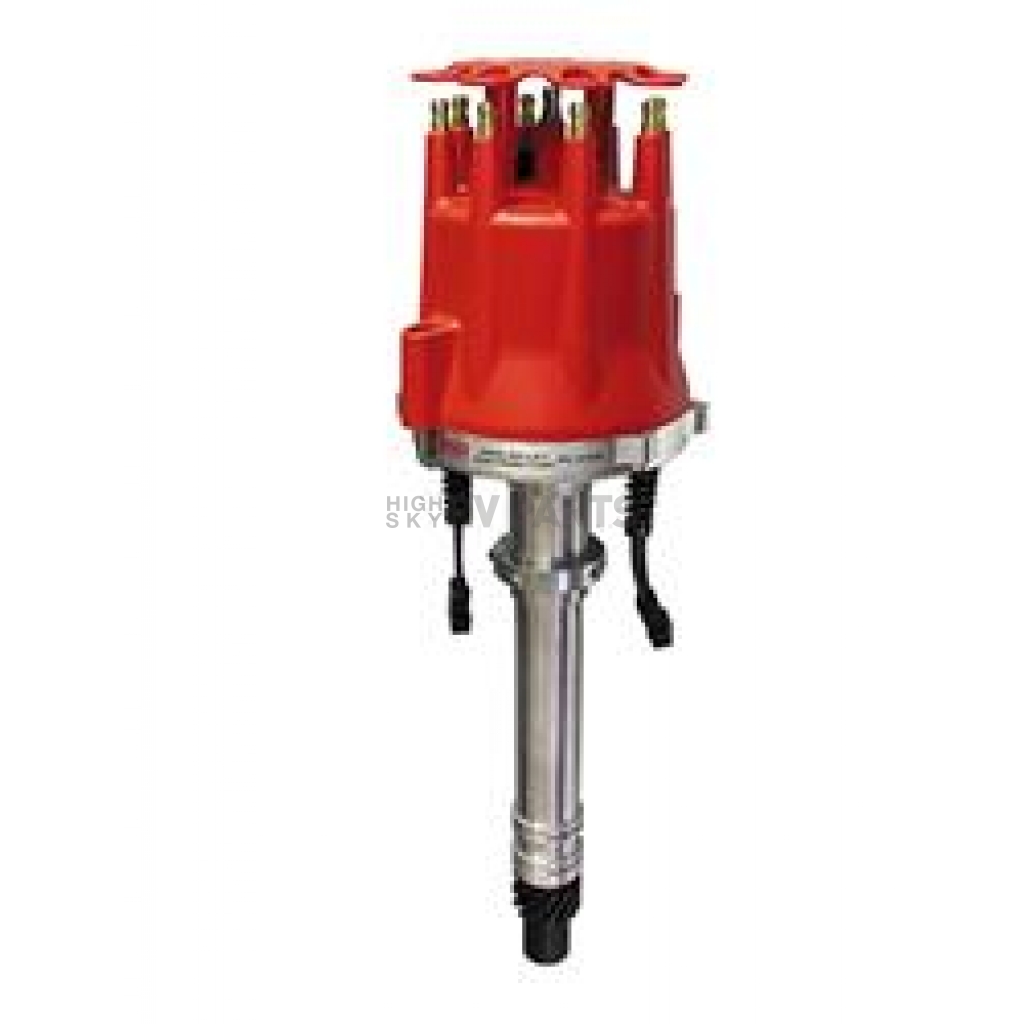

MSD Ignition Distributor
Distributor; Pro-Billet; For Use With Chevy V8 Engines; Without Ignition Control Module; Dual Magnetic Trigger; Mechanical Advance; With Iron Gear; Red Cap With HEI/Male Posts
MPN: 8356
The Chevrolet housing has several racing features that racers will appreciate. At the base of the CNC machined housing there are two O-Ring grooves. These seals prevent oil in the lifter gallery from leaking through the oil passage. If the engine deck, heads or intake have been modified, there is an adjustable slip collar which allows you to set the correct installation depth. A fine blanked advance cam is TIG welded on top of the 0.500 Inch QPQ coated shaft. Added to the advance plate are chro-moly weight pins which are staked and TIG welded in place. The advance weights are specially coated to reduce friction and nylon pads are mounted on the advance plate to allow the weights to react quickly to RPM changes. This style advance assembly is fully adjustable or can easily be locked out. With two mag pick ups, racers can have a complete redundant ignition system which can be activated at the flip of a switch. The pickups are placed precisely 180 Degree apart so when you switch to the secondary ignition, the timing remains constant!
Condition: New
Recommended Use: Track/ Off-Road
Spark Advance Type: Mechanical Advance
Spark Distribution Type: Dual Magnetic Trigger
With Ignition Module: No
With Tach Drive: No
Drive Gear Type: Iron Gear
Includes Cap And Rotor: Yes
Cap Color: Red
Cap Type: HEI/ Male Posts
Coil In Cap: No
Features
- Dual Magnetic Pickups Are Placed 180 Degree Apart To Provide A Complete Redundant Ignition System For Racing Applications
- Easy To Adjust Mechanical Advance With Supplied Springs And Stop Bushings
- Advance Plate And Weights Are Fine Blanked From Chrome Moly Steel And QPQ Coated For Friction Reduction
- Advance Weight Pins Are Staked And TIG Welded To The Plate, Nylon Pads Ensure Smooth Operation Of The Advance Weights
- CNC Machined Billet Aluminum Housing And Billet Aluminum Base
- Special Oil Tract Improves Lubrication To The Distributor And Cam Gear, O-Ring Seals Can Be Added To Modified Blocks To Improve Oil Pressure Control
- Mechanical Advance Assembly Can Be Locked Out For Crank Trigger Systems
- Limited 1 Year Warranty
| Specifications of MSD Ignition Distributor 8356 | |
| Cap Color | Red |
| Cap Type | HEI/ Male Posts |
| Coil In Cap | No |
| Condition | New |
| Drive Gear Type | Iron Gear |
| Includes Cap And Rotor | Yes |
| Recommended Use | Track/ Off-Road |
| Spark Advance Type | Mechanical Advance |
| Spark Distribution Type | Dual Magnetic Trigger |
| With Ignition Module | No |
| With Tach Drive | No |
1900-1900 Chevrolet Big Block 1965-1990 Gen IV
1900 Chevrolet Big Block 1965-1990 Gen IV
1900-1900 Chevrolet Big Block 1991-1995 Gen V
1900 Chevrolet Big Block 1991-1995 Gen V
1900-1900 Chevrolet Small Block 1955-1986
1900 Chevrolet Small Block 1955-1986
1900-1900 Chevrolet Small Block 1987-1998 (OE Roller)
1900 Chevrolet Small Block 1987-1998 (OE Roller)
1900-1900 Chevrolet Small Block 383
1900 Chevrolet Small Block 383
