Motive Gear/Midwest Truck Ring and Pinion - D44-294NIS

Brand: Motive Gear

Have a product question? Ask us
Part Number: D44-294NIS
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by June 06

Retail: $769.64

Price: $732.99

You Save: $36.65

Axle Model

Dana 44

Axle Version

Second Generation

Carrier Compatibility

2003-2007 Requires 24 Spline Companion Flange

Material

Steel

Number Of Cover Bolts

Pinion Gear Teeth

Pinion Shaft Diameter (IN)

1-5/8 Inch

Pinion Spline Count

Ratio

Ring Gear Bolts

Ring Gear Diameter (IN)

8.89 Inch

Share this page

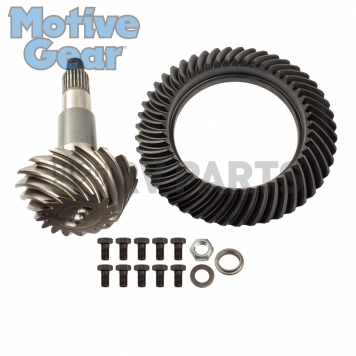

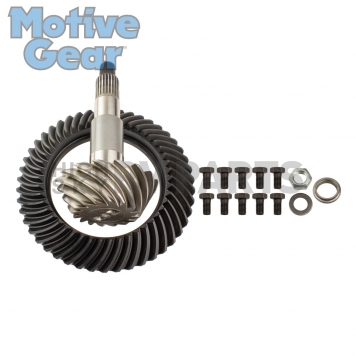

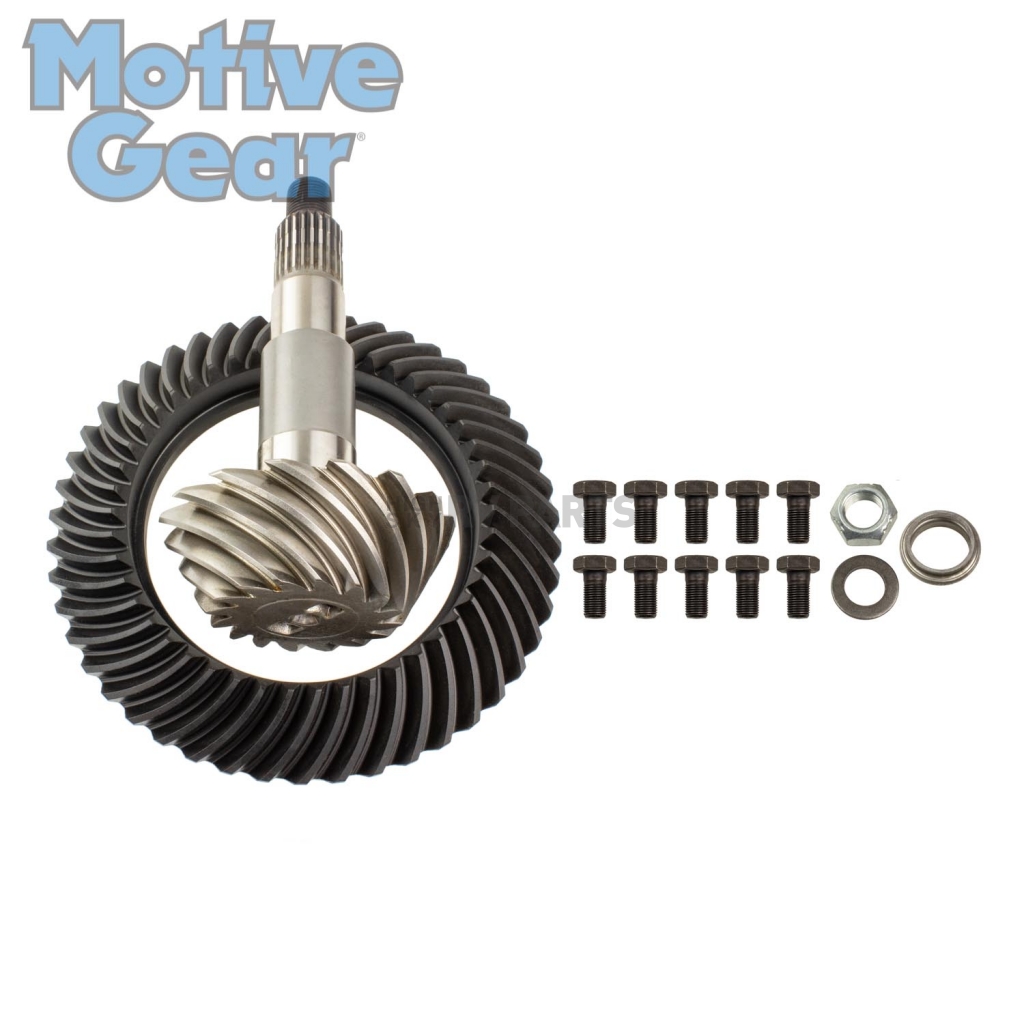

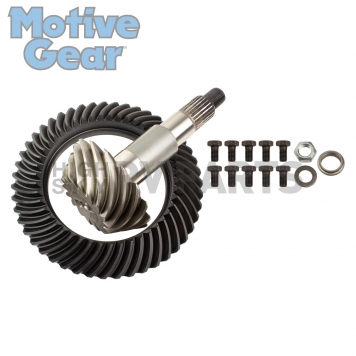

Motive Gear/Midwest Truck Differential Ring and Pinion

Differential Ring and Pinion; DANA 44 Axle; 8.89 Inch Ring Gear; 2.94 Ratio

MPN: D44294NIS

Motive Gear stock performance ring and pinions are excellent replacements for OE. Experienced installers prefer our ring and pinions for easy setup, superior strength, quality, and our vast ratio selection. Engineered to the highest standards, every Motive Gear product goes through rigid quality control processes in our in-house lab.

Axle Model: Dana 44

Axle Version: Second Generation

Ratio: 2.94

Ring Gear Teeth: 47

Pinion Gear Teeth: 16

Ring Gear Diameter (IN): 8.89 Inch

Pinion Shaft Diameter (IN): 1-5/8 Inch

Pinion Spline Count: 24

Ring Gear Rotation: Standard

Number Of Cover Bolts: 12

Ring Gear Bolts: 10

Carrier Compatibility: 2003-2007 Requires 24 Spline Companion Flange

Material: Steel

Features

Ring Gear Constructed From 8620 Steel
Limited 1 Year Or 50,000 Mile Warranty

Specifications of Motive Gear/Midwest Truck Ring and Pinion - D44-294NIS
Axle Model	Dana 44
Axle Version	Second Generation
Carrier Compatibility	2003-2007 Requires 24 Spline Companion Flange
Material	Steel
Number Of Cover Bolts	12
Pinion Gear Teeth	16
Pinion Shaft Diameter (IN)	1-5/8 Inch
Pinion Spline Count	24
Ratio	2.94
Ring Gear Bolts	10
Ring Gear Diameter (IN)	8.89 Inch
Ring Gear Rotation	Standard
Ring Gear Teeth	47
