Moroso Performance Oil Pump - 22526

Brand: Moroso Performance
0 reviews
  • Have a product question? Ask us
  • Part Number: 22526
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 16
Retail: $3,128.99
Price: $2,979.99
You Save: $149.00
Engine Compatibility
Chevy Small Block V8 283-327 Cubic Inch/ Chevy Big Block V8 396-454 Cubic Inch
Number Of Stages
6
Type
Dry Sump
Share this page

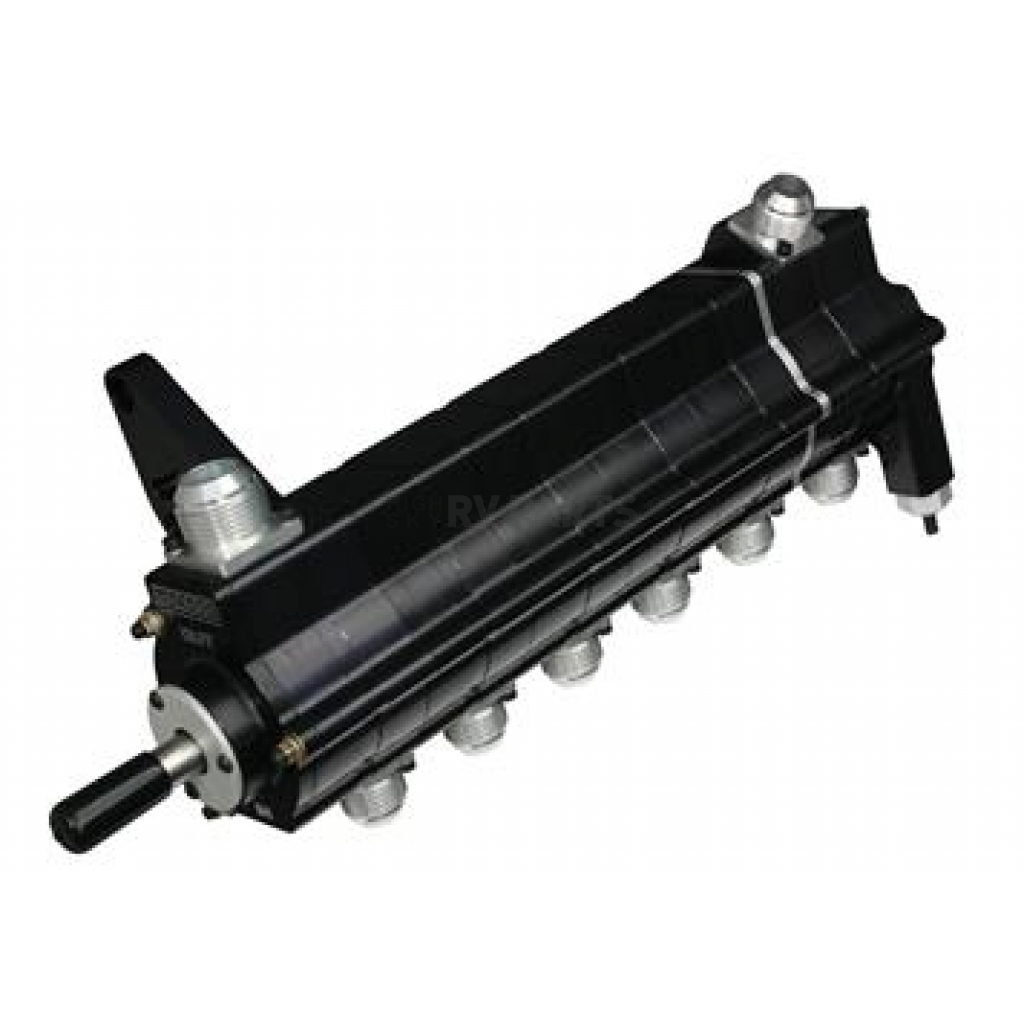

Moroso Performance Oil Pump

Oil Pump; Chevy Small Block/ Big Block Dragster; 0.875 Pressure/ 1.100 Scavenge; 6 Stage; Dry Sump

MPN: 22526

After Years of development, input from racers and top engine builders, Moroso is proud to introduce the next evolution of dry sump pumps! Dry sump oiling systems are the safest, most dependable oiling systems available. They’re popular in all forms of racing, especially where low chassis height is important for good handling. Horsepower gain is maximized because there is virtually no oil in the pan and no internal pump, allowing the windage tray or screen to run the full length of the pan. Other advantages of a dry sump system include a remotely mounted oil tank for increased capacity, the ability to easily add remote oil coolers, more consistent oil pressure, adjustable oil pressure, improved scavenging and increased ring seal due to greater pan vacuum.
Engine Compatibility: Chevy Small Block V8 283-327 Cubic Inch/ Chevy Big Block V8 396-454 Cubic Inch
Type: Dry Sump
Number Of Stages: 6

Features

  • Steady Oil Pressure Throughout RPM Range. Consistent Oil Pressure At High Heat Levels
  • Increased Vacuum. Consistent Oil Pressure At High Vacuum Levels
  • Oil Pressure Adjustability, Allows For Finer Tuning Of Pressure Levels
  • Internal Manifold With -16AN Return, No Need For Separate Manifold
  • Built-In Bracket Mounts Pump Higher And Closer To The Engine, For Better Engine Compartment Packaging In A Dragster
  • Two Pressure Outlet Locations For Easier Plumbing
  • Includes All Necessary Fittings. Vertical Oil Pressure Adjuster Makes It Easier To Change Oil Pressure Settings
  • Limited 90 Day Warranty
Specifications of Moroso Performance Oil Pump - 22526
Engine Compatibility Chevy Small Block V8 283-327 Cubic Inch/ Chevy Big Block V8 396-454 Cubic Inch
Number Of Stages 6
Type Dry Sump

1900 Chevrolet Big Block 1965-1990 Gen IV

1900 Chevrolet Big Block 1991-1995 Gen V

1900 Chevrolet Big Block 1996-2000 Gen VI

1900 Chevrolet Small Block 1955-1986

1900 Chevrolet Small Block 1987-1998 (OE Roller)
