Moroso Performance Oil Pan - 20910
Baffled
Yes
Capacity
5.5 Quart
Color
Silver
Depth (IN)
6 Inch
Dipstick Location
No Dipstick
Dipstick Provision
No
Drain Plug Thread Size
1/2 Inch-20
Finish
Zinc Plated
Includes Crank Scraper
No
Includes Pickup
No
Includes Windage Tray
No
Share this page

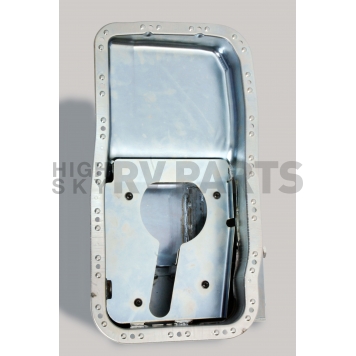

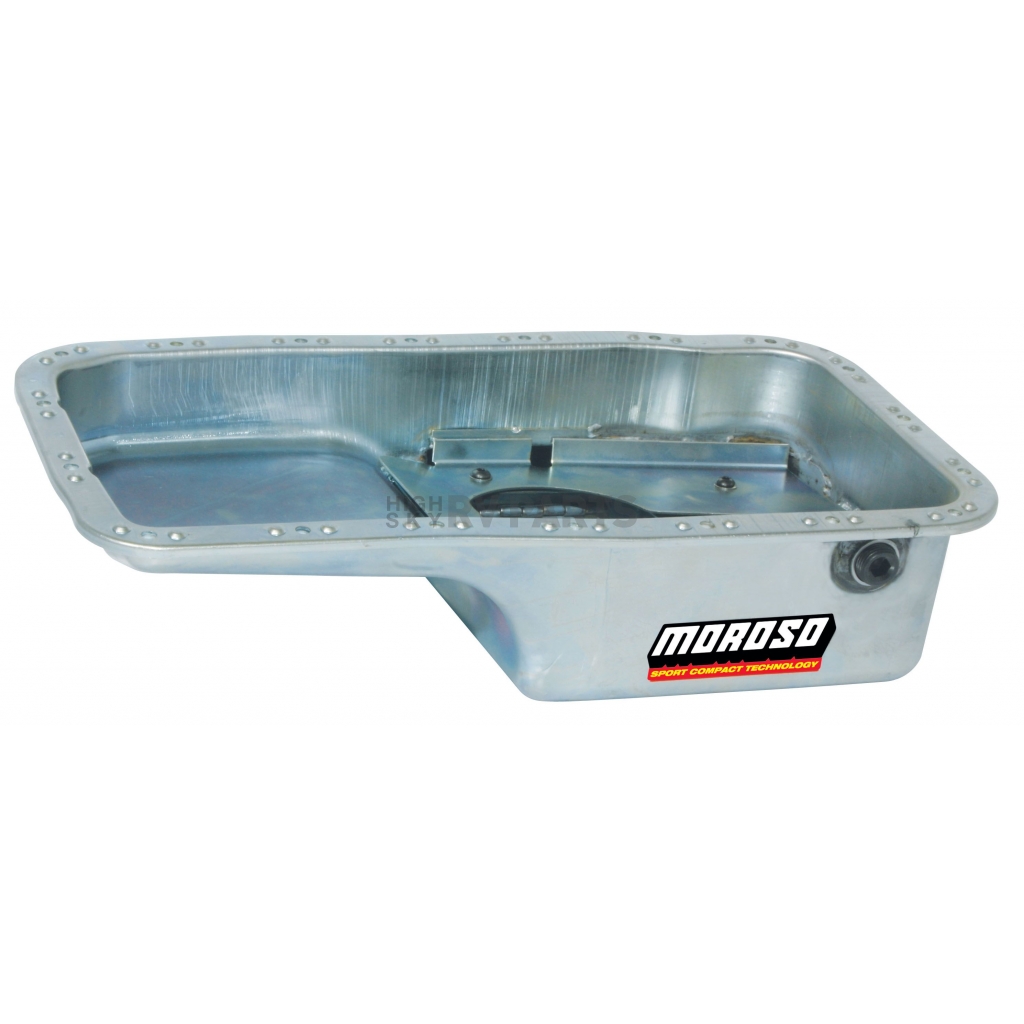

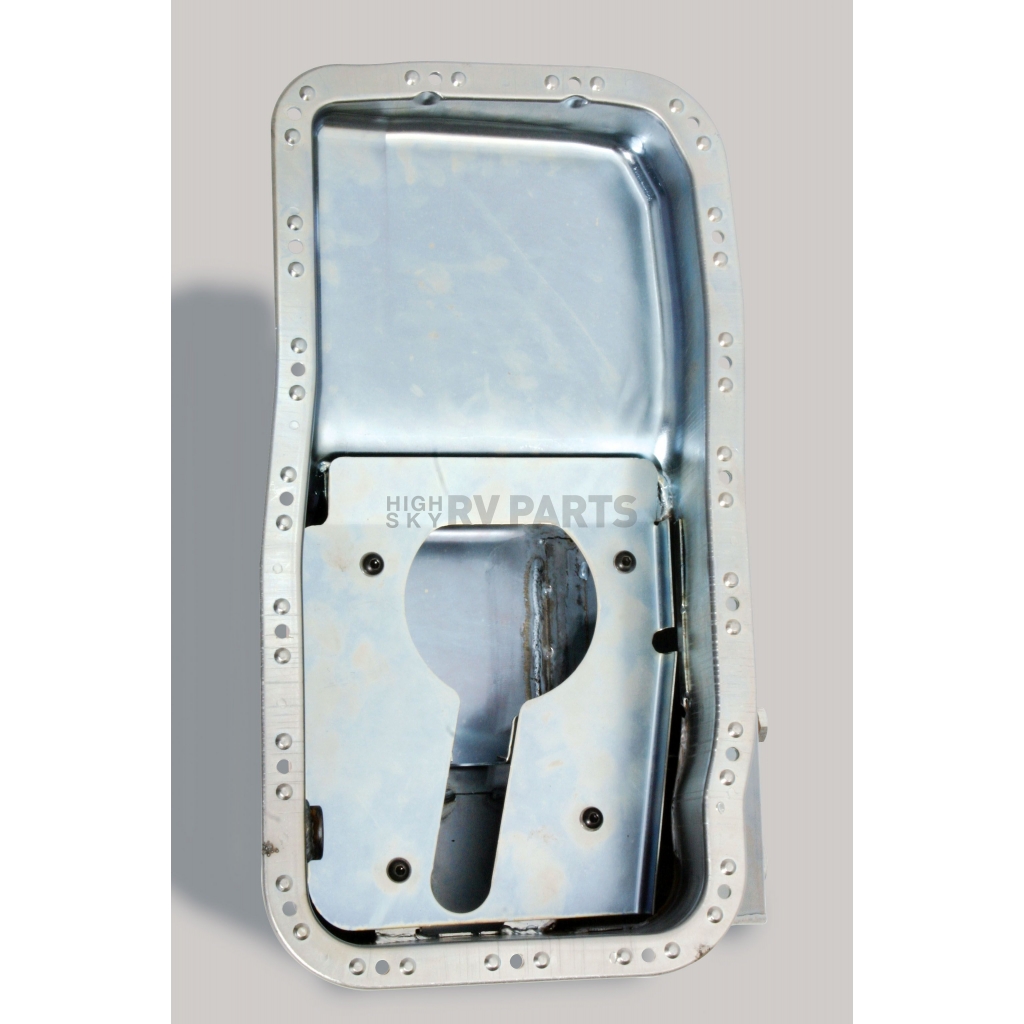

Moroso Performance Oil Pan
Oil Pan; For Use With Acura/ Honda B-Series Engines; Street/ Strip; 5-1/2 Quarts; Wet Sump; 6 Inch Sump Depth; With Baffle; With Turbo/ Supercharger Oil Drain Back And Temperature Bung; Zinc Plated; Steel
MPN: 20910
Moroso performance products was the first company to manufacture racing oil pans with deep and kicked out sumps, thereby solving the lubrication problems of countless racers. While different types of automated machinery is used to make the individual components, Moroso oil pans are precision welded, one at a time, by skilled craftsmen who take pride in their work. All Moroso oil pans and oiling components are engineered to be fully compatible with one another. This allows engine builders to select the best combination of equipment to suit their particular needs. It also eliminates the problems that often occur when using components from different manufacturers. Moroso offers a wide variety of oiling system accessories including Oil Pumps, Pickups, Windage Trays And Screens, Crankshaft Scrapers, Tanks, Breathers, Fittings, Filters, Drive Kits, Oil Pre-heaters, And Accumulators. Each is designed, developed and tested to work together as an integrated system with our oil pans. And each is built with the quality that you’ve come to expect from Moroso.
Recommended Use: Street/ Strip
Finish: Zinc Plated
Color: Silver
Material: Steel
Capacity: 5.5 Quart
Depth (IN): 6 Inch
Drain Plug Thread Size: 1/2 Inch-20
Sump Position: Rear
Sump Style: Wet
Baffled: Yes
Dipstick Provision: No
Dipstick Location: No Dipstick
Kicked Out: Yes
Stroker Clearance: No
Includes Pickup: No
Includes Crank Scraper: No
Includes Windage Tray: No
Features
- Kicked Out Sump
- Includes 6 Trap Doors, 2 Baffles And A Removable Sump Tray That Keeps The Oil Contained In The Pickup Area During Hard Acceleration, Cornering And Braking
- Turbo/Supercharger Oil Drain Back And Temperature Sensor Bung
- Magnetic Drain Plug
- Works With OEM Exhaust Manifold And Most Aftermarket Exhaust/Header Combinations
- Limited Supplier Warranty
| Specifications of Moroso Performance Oil Pan - 20910 | |
| Baffled | Yes |
| Capacity | 5.5 Quart |
| Color | Silver |
| Depth (IN) | 6 Inch |
| Dipstick Location | No Dipstick |
| Dipstick Provision | No |
| Drain Plug Thread Size | 1/2 Inch-20 |
| Finish | Zinc Plated |
| Includes Crank Scraper | No |
| Includes Pickup | No |
| Includes Windage Tray | No |
| Kicked Out | Yes |
| Material | Steel |
| Recommended Use | Street/ Strip |
| Stroker Clearance | No |
| Sump Position | Rear |
| Sump Style | Wet |
1990 Acura Integra
1991 Acura Integra
1992 Acura Integra
1993 Acura Integra
1994 Acura Integra
1995 Acura Integra
1996 Acura Integra
1997 Acura Integra
1998 Acura Integra
1999 Acura Integra
2000 Acura Integra
2001 Acura Integra
1991 Acura Integra
1992 Acura Integra
1993 Acura Integra
1994 Acura Integra
1995 Acura Integra
1996 Acura Integra
1997 Acura Integra
1998 Acura Integra
1999 Acura Integra
2000 Acura Integra
2001 Acura Integra
1999 Honda Civic
2000 Honda Civic
2000 Honda Civic
1994 Honda Civic del Sol
1995 Honda Civic del Sol
1996 Honda Civic del Sol
1997 Honda Civic del Sol
1995 Honda Civic del Sol
1996 Honda Civic del Sol
1997 Honda Civic del Sol
