Monroe Shock Absorber - MA776

Brand: Monroe

0 reviews

Have a product question? Ask us
Part Number: MA776
Part Location: U.S.
Availability: *Special Order
Delivery: 3 - 4 Weeks

Retail: $249.89

Price: $237.99

You Save: $11.90

Adjustable

Body Color

Black

Body Material

Steel

Compressed Length (IN)

15 Inch

Estimated Install Time (Hours)

Extended Length (IN)

24-3/8 Inch

Includes Boot

Includes Dust Shield

Includes Hardware

Internal Design

Monotube

Lower Mounting Style

Eyelet

Share this page

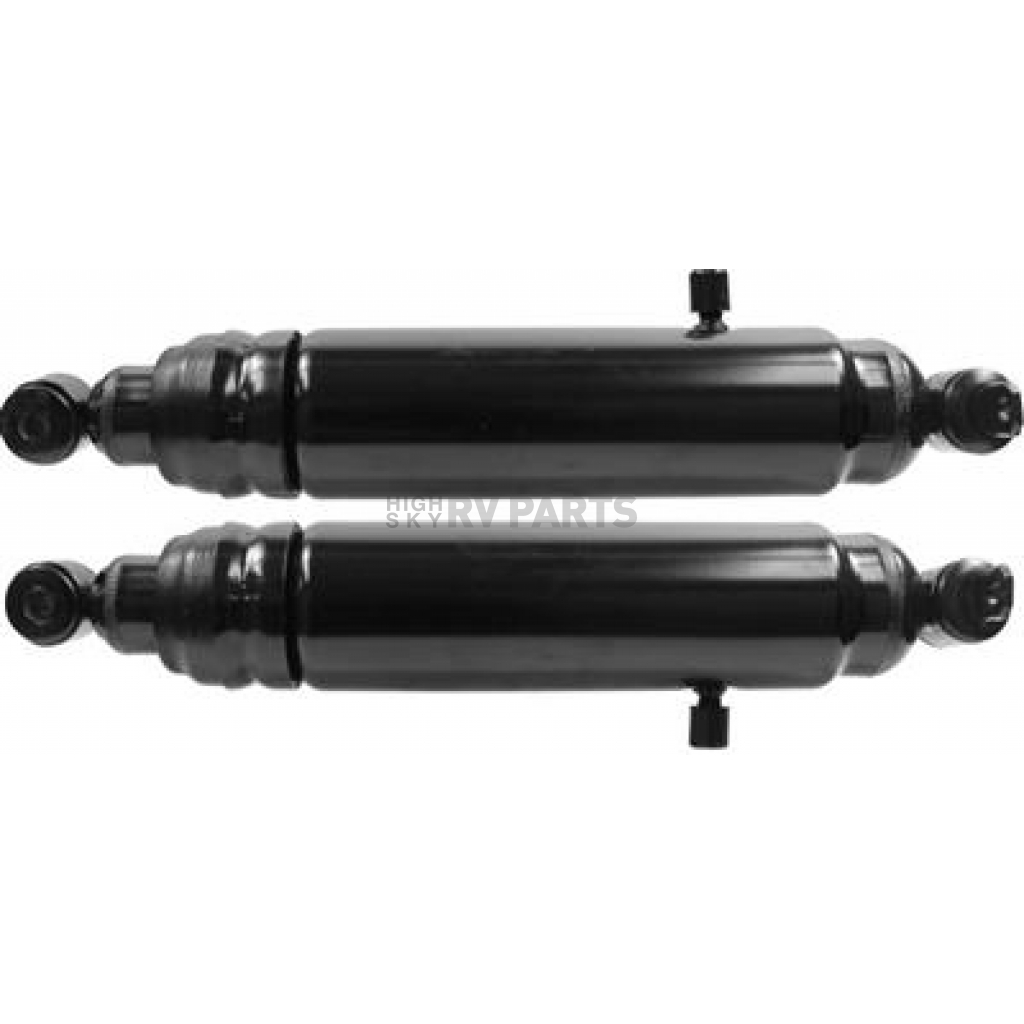

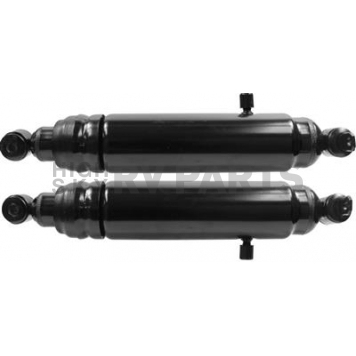

Monroe Shock Absorber

Shock Absorber; Max-Air ®; OE Replacement; Hydraulic With Air Assist; For Towing And Hauling; Set Of 2

MPN: MA776

The Max-Air ® Shock Absorber Is Ideal For Vehicles That Haul Heavy Loads Or Tow Trailers. Designed To Maintain Level Vehicle Height, They Can Be Inflated Or Deflated As Needed From 20 PSI To 150 PSI With The Vehicle Loaded. Capacity Is Limited By Vehicle Suspension, Tires And Transmission.

Type: Hydraulic

With Coil Spring: No

Internal Design: Monotube

Adjustable: Yes

Extended Length (IN): 24-3/8 Inch

Compressed Length (IN): 15 Inch

Upper Mounting Style: Cross Pin

Lower Mounting Style: Eyelet

Body Color: Black

Quantity: Set Of 2

Rod Diameter (IN): 1/2 Inch

Valving Type: Velocity Proportional Valving

Rod Finish: OEM

Rod Material: Sintered Iron

Body Material: Steel

With Reservoir: No

Includes Dust Shield: Yes

Includes Hardware: Yes

Includes Boot: No

Estimated Install Time (Hours): 0.5

Features

All Weather Fluid Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
Full Displaced Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
Large Volume Air Chamber Inflates Up To 150 PSI With Vehicle Loaded. Deflates For Normal Driving
Lubricated Air Sleeve Reduces Friction For Longer Service Life. Provides Smoother Operation During Suspension Movement
Sintered Iron Piston Stronger Than Traditional Metals, Enhances Durability For Longer Service Life
Special Air Fitting To Resists Air Leakage
Limited 1 Year Warranty

Specifications of Monroe Shock Absorber - MA776
Adjustable	Yes
Body Color	Black
Body Material	Steel
Compressed Length (IN)	15 Inch
Estimated Install Time (Hours)	0.5
Extended Length (IN)	24-3/8 Inch
Includes Boot	No
Includes Dust Shield	Yes
Includes Hardware	Yes
Internal Design	Monotube
Lower Mounting Style	Eyelet
Quantity	Set Of 2
Rod Diameter (IN)	1/2 Inch
Rod Finish	OEM
Rod Material	Sintered Iron
Type	Hydraulic
Upper Mounting Style	Cross Pin
Valving Type	Velocity Proportional Valving
With Coil Spring	No
With Reservoir	No

1991-2001 Ford Explorer

1991 Ford Explorer
1992 Ford Explorer
1993 Ford Explorer
1994 Ford Explorer
1995 Ford Explorer
1996 Ford Explorer
1997 Ford Explorer
1998 Ford Explorer
1999 Ford Explorer
2000 Ford Explorer
2001 Ford Explorer

2001-2003 Ford Explorer Sport

2001 Ford Explorer Sport
2002 Ford Explorer Sport
2003 Ford Explorer Sport

2001-2005 Ford Explorer Sport Trac

2001 Ford Explorer Sport Trac
2002 Ford Explorer Sport Trac
2003 Ford Explorer Sport Trac
2004 Ford Explorer Sport Trac
2005 Ford Explorer Sport Trac

1991-1994 Mazda Navajo

1991 Mazda Navajo
1992 Mazda Navajo
1993 Mazda Navajo
1994 Mazda Navajo

1997-2001 Mercury Mountaineer

1997 Mercury Mountaineer
1998 Mercury Mountaineer
1999 Mercury Mountaineer
2000 Mercury Mountaineer
2001 Mercury Mountaineer
