Monroe Shock Absorber - 5783
Adjustable
No
Body Color
Black
Body Material
Steel
Compressed Length (IN)
7-1/2 Inch
Estimated Install Time (Hours)
0.5
Extended Length (IN)
20 Inch
Includes Boot
No
Includes Dust Shield
Yes
Includes Hardware
Yes
Internal Design
Monotube
Lower Mounting Style
Cross Pin
Share this page

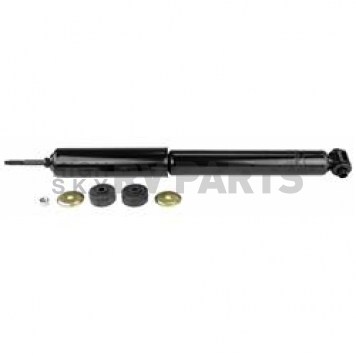

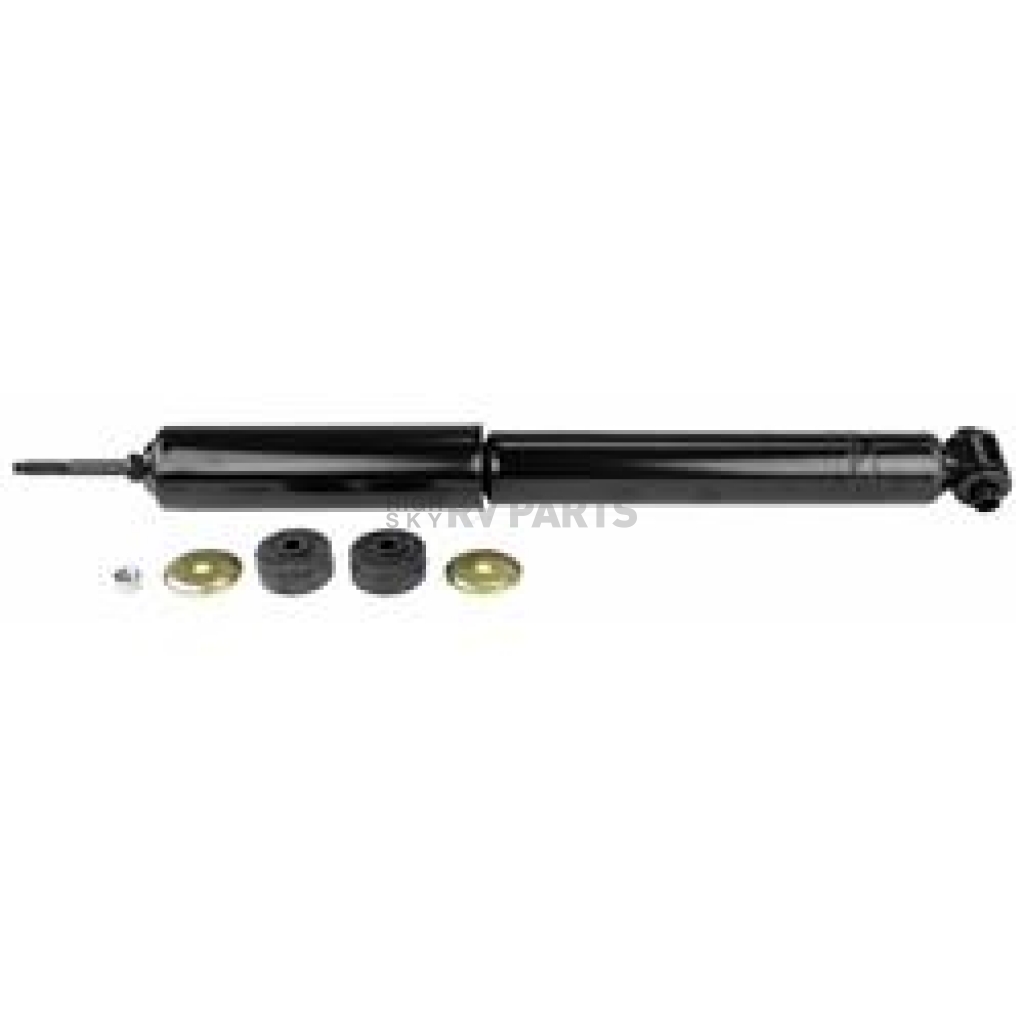

Monroe Shock Absorber
Shock Absorber; OESpectrum ®; OE Replacement; Nitrogen Gas Charged; Single
MPN: 5783
The Monroe(R) Sensa-Trac(R) passenger car shock absorber with PSD (position sensitive damping) and the Safe Tech™ system combines our exclusive precision tapered grooves in the pressure tube with application engineered valving and Fluon banded piston to improve the ride, handling, and safety characteristics of the vehicle. These features allow the Monroe(R) Sensa-Trac(R) passenger car shock absorber to adjust more rapidly to changing road and weight conditions than any other available shock absorber.
Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable: No
Extended Length (IN): 20 Inch
Compressed Length (IN): 7-1/2 Inch
Upper Mounting Style: Stud
Lower Mounting Style: Cross Pin
Body Color: Black
Quantity: Single
Rod Diameter (IN): 1/2 Inch
Valving Type: Application Specific Valving
Rod Finish: Nitrocarburized
Rod Material: OEM
Body Material: Steel
With Reservoir: No
Includes Dust Shield: Yes
Includes Hardware: Yes
Includes Boot: No
Estimated Install Time (Hours): 0.5
Features
- All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
- Full Displaced Valving: Tuned Specifically For Each Application, This Valving Automatically Adjusts To Road Extremes To Provide Consistency And Ride
- Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston And Pressure Tube Which Delivers Better Control And Increased Durability
- Larger Bore Than Most Shocks To Provide More Efficient And Consistent Control
- Unique Groove Tube - PSD: Precision Tapered Grooves In The Pressure Tube Perform Like An Additional Stage Of Valving For Optimum Ride Tuning
- Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- Piston Rod: Nitrocarburized Rod For Long Service Life
- Limited Lifetime Warranty
| Specifications of Monroe Shock Absorber - 5783 | |
| Adjustable | No |
| Body Color | Black |
| Body Material | Steel |
| Compressed Length (IN) | 7-1/2 Inch |
| Estimated Install Time (Hours) | 0.5 |
| Extended Length (IN) | 20 Inch |
| Includes Boot | No |
| Includes Dust Shield | Yes |
| Includes Hardware | Yes |
| Internal Design | Monotube |
| Lower Mounting Style | Cross Pin |
| Quantity | Single |
| Rod Diameter (IN) | 1/2 Inch |
| Rod Finish | Nitrocarburized |
| Rod Material | OEM |
| Type | Nitrogen Gas Charged |
| Upper Mounting Style | Stud |
| Valving Type | Application Specific Valving |
| With Coil Spring | No |
| With Reservoir | No |
2005 Ford Mustang
2006 Ford Mustang
2007 Ford Mustang
2008 Ford Mustang
2009 Ford Mustang
2010 Ford Mustang
2011 Ford Mustang
2012 Ford Mustang
2013 Ford Mustang
2014 Ford Mustang
2006 Ford Mustang
2007 Ford Mustang
2008 Ford Mustang
2009 Ford Mustang
2010 Ford Mustang
2011 Ford Mustang
2012 Ford Mustang
2013 Ford Mustang
2014 Ford Mustang
