Monroe Shock Absorber - 5754

Brand: Monroe

0 reviews

Have a product question? Ask us
Part Number: 5754
Part Location: U.S.
Availability: 2 In Stock
Delivery: Ships Out in 1 - 2 Business Days
If purchased before 12:00 EDT - estimated delivery by July 07

Retail: $49.34

Price: $46.99

You Save: $2.35

Adjustable

Body Color

Black

Body Material

Steel

Compressed Length (IN)

9-5/8 Inch

Estimated Install Time (Hours)

Extended Length (IN)

15-1/8 Inch

Includes Boot

Includes Dust Shield

Includes Hardware

Internal Design

Monotube

Lower Mounting Style

Cross Pin

Share this page

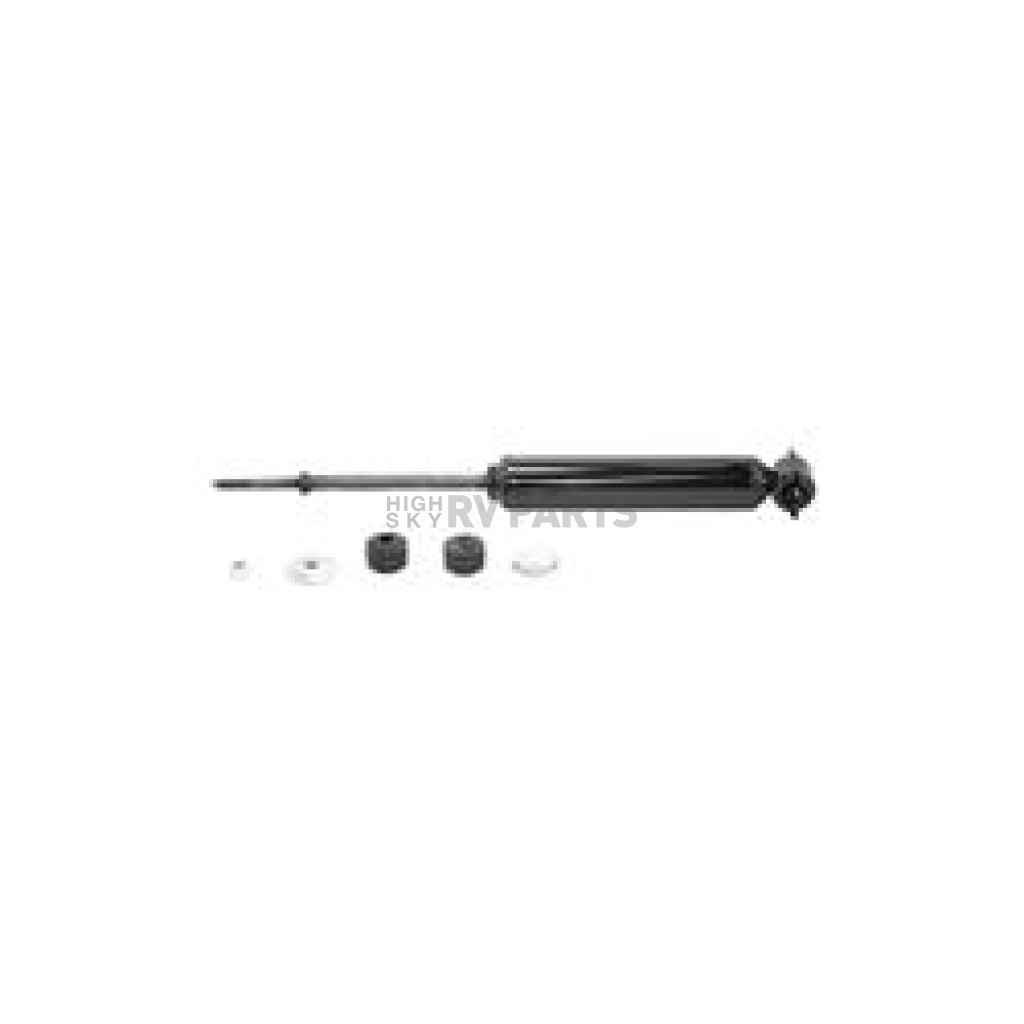

Monroe Shock Absorber

Shock Absorber; OESpectrum ®; Nitrogen Gas Charged; OE Replacement; Single

MPN: 5754

The Monroe(R) Sensa-Trac(R) passenger car shock absorber with PSD (position sensitive damping) and the Safe Tech™ system combines our exclusive precision tapered grooves in the pressure tube with application engineered valving and Fluon banded piston to improve the ride, handling, and safety characteristics of the vehicle. These features allow the Monroe(R) Sensa-Trac(R) passenger car shock absorber to adjust more rapidly to changing road and weight conditions than any other available shock absorber.

Type: Nitrogen Gas Charged

With Coil Spring: No

Internal Design: Monotube

Adjustable: No

Extended Length (IN): 15-1/8 Inch

Compressed Length (IN): 9-5/8 Inch

Upper Mounting Style: Stud

Lower Mounting Style: Cross Pin

Body Color: Black

Quantity: Single

Rod Diameter (IN): 1/2 Inch

Valving Type: Application Specific Valving

Rod Finish: Nitrocarburized

Rod Material: OEM

Body Material: Steel

With Reservoir: No

Includes Dust Shield: No

Includes Hardware: Yes

Includes Boot: No

Estimated Install Time (Hours): 0.5

Features

All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
Full Displaced Valving: Tuned Specifically For Each Application, This Valving Automatically Adjusts To Road Extremes To Provide Consistency And Ride
Fluon Banded Piston: The Fluon Band Provides Consistent Sealing Between The Piston And Pressure Tube Which Delivers Better Control And Increased Durability
Larger Bore Than Most Shocks To Provide More Efficient And Consistent Control
Unique Groove Tube - PSD: Precision Tapered Grooves In The Pressure Tube Perform Like An Additional Stage Of Valving For Optimum Ride Tuning
Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
Piston Rod: Nitrocarburized Rod For Long Service Life
Limited Lifetime Warranty

Specifications of Monroe Shock Absorber - 5754
Adjustable	No
Body Color	Black
Body Material	Steel
Compressed Length (IN)	9-5/8 Inch
Estimated Install Time (Hours)	0.5
Extended Length (IN)	15-1/8 Inch
Includes Boot	No
Includes Dust Shield	No
Includes Hardware	Yes
Internal Design	Monotube
Lower Mounting Style	Cross Pin
Quantity	Single
Rod Diameter (IN)	1/2 Inch
Rod Finish	Nitrocarburized
Rod Material	OEM
Type	Nitrogen Gas Charged
Upper Mounting Style	Stud
Valving Type	Application Specific Valving
With Coil Spring	No
With Reservoir	No
