Monroe Shock Absorber - 34776

Brand: Monroe
0 reviews
  • Have a product question? Ask us
  • Part Number: 34776
  • Part Location: U.S.
  • Availability: Out Of Stock
Retail: $44.09
Price: $41.99
You Save: $2.10
Adjustable
No
Body Color
Yellow
Body Material
OEM
Compressed Length (IN)
9-1/2 Inch
Estimated Install Time (Hours)
0.5
Extended Length (IN)
13-3/4 Inch
Includes Boot
No
Includes Dust Shield
Yes
Includes Hardware
Yes
Internal Design
Monotube
Lower Mounting Style
Eyelet
Share this page

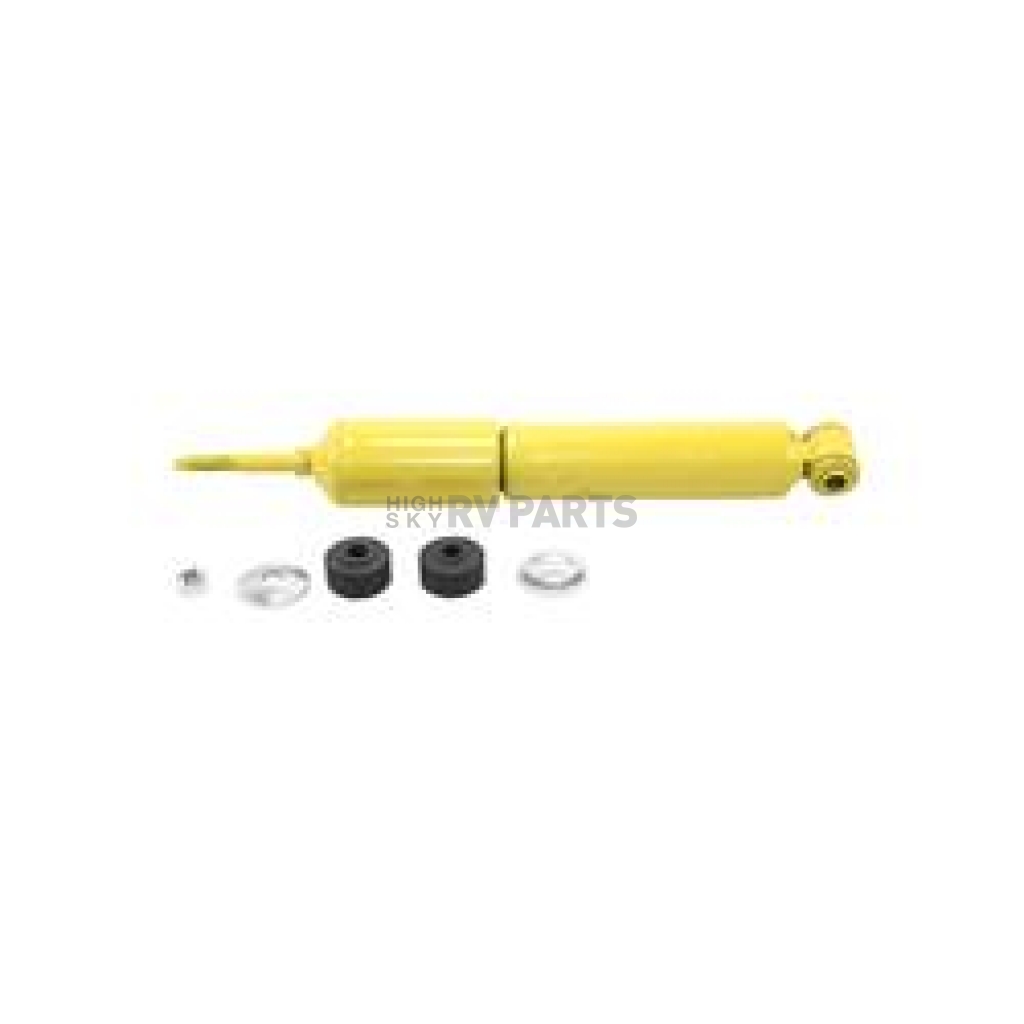

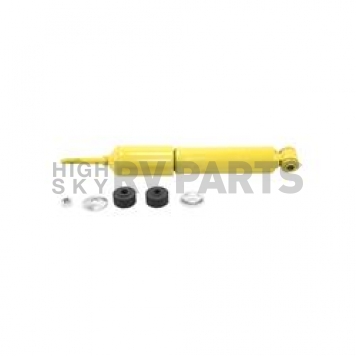

Monroe Shock Absorber

Shock Absorber; Gas-Magnum ®; OE Replacement; Nitrogen Gas Charged; Premium Limited Lifetime Warranty; Single

MPN: 34776

The Monroe® Gas-Magnum® truck shock absorber is designed for mid to full size, hard working pick-up trucks and vans. These units provide firm control without a harsh ride. With up to twice the fluid capacity of standard 1 Inch bore shocks, Monroe® Gas-Magnum® truck shocks work more efficiently with less effort.
Type: Nitrogen Gas Charged
With Coil Spring: No
Internal Design: Monotube
Adjustable: No
Extended Length (IN): 13-3/4 Inch
Compressed Length (IN): 9-1/2 Inch
Upper Mounting Style: Stud
Lower Mounting Style: Eyelet
Body Color: Yellow
Quantity: Single
Rod Diameter (IN): 5/8 Inch
Valving Type: Application Specific Valving
Rod Finish: Nitrocarburized
Rod Material: Sintered Iron
Body Material: OEM
With Reservoir: No
Includes Dust Shield: Yes
Includes Hardware: Yes
Includes Boot: No
Estimated Install Time (Hours): 0.5

Features

  • Bore: Lower Operating Pressure Than Standard 1 Inch Bore Units. Special Seal: 'Self-Lubricating' Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction
  • Reserve Tube: More Fluid For More Consistent Performance. Expanded Reserve Tube For Greater Oil Capacity To Better Dissipate Heat
  • Piston Rod: Heavy-Duty Nitro Carburized Rod For Long Service Life. Work More Efficiently With Less Effort
  • All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
  • Full Displaced Valving: Better Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
  • Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration
  • Sintered Iron Piston: Stronger Than Traditional Metals, Enhances Durability For Longer Service Life
  • Limited Lifetime Warranty
Specifications of Monroe Shock Absorber - 34776
Adjustable No
Body Color Yellow
Body Material OEM
Compressed Length (IN) 9-1/2 Inch
Estimated Install Time (Hours) 0.5
Extended Length (IN) 13-3/4 Inch
Includes Boot No
Includes Dust Shield Yes
Includes Hardware Yes
Internal Design Monotube
Lower Mounting Style Eyelet
Quantity Single
Rod Diameter (IN) 5/8 Inch
Rod Finish Nitrocarburized
Rod Material Sintered Iron
Type Nitrogen Gas Charged
Upper Mounting Style Stud
Valving Type Application Specific Valving
With Coil Spring No
With Reservoir No

1994 Dodge Ram 1500
1995 Dodge Ram 1500
1996 Dodge Ram 1500
1997 Dodge Ram 1500
1998 Dodge Ram 1500
1999 Dodge Ram 1500
2000 Dodge Ram 1500
2001 Dodge Ram 1500

1994 Dodge Ram 2500
1995 Dodge Ram 2500
1996 Dodge Ram 2500
1997 Dodge Ram 2500
1998 Dodge Ram 2500
1999 Dodge Ram 2500
2000 Dodge Ram 2500
2001 Dodge Ram 2500
2002 Dodge Ram 2500

1994 Dodge Ram 3500
1995 Dodge Ram 3500
1996 Dodge Ram 3500
1997 Dodge Ram 3500
1998 Dodge Ram 3500
1999 Dodge Ram 3500
2000 Dodge Ram 3500
2001 Dodge Ram 3500
2002 Dodge Ram 3500
