Monroe Shock Absorber - 34655

Brand: Monroe

0 reviews

Have a product question? Ask us
Part Number: 34655
Part Location: U.S.
Availability: 2 In Stock
Delivery: Ships Out in 1 - 2 Business Days
If purchased before 12:00 EDT - estimated delivery by July 07

Retail: $73.49

Price: $69.99

You Save: $3.50

Adjustable

Body Color

Yellow

Body Material

Compressed Length (IN)

10-1/4 Inch

Estimated Install Time (Hours)

Extended Length (IN)

14-7/8 Inch

Includes Boot

Includes Dust Shield

Includes Hardware

Internal Design

Monotube

Lower Mounting Style

Cross Pin

Share this page

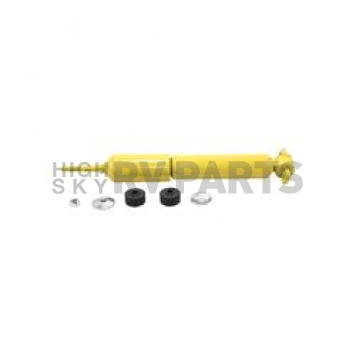

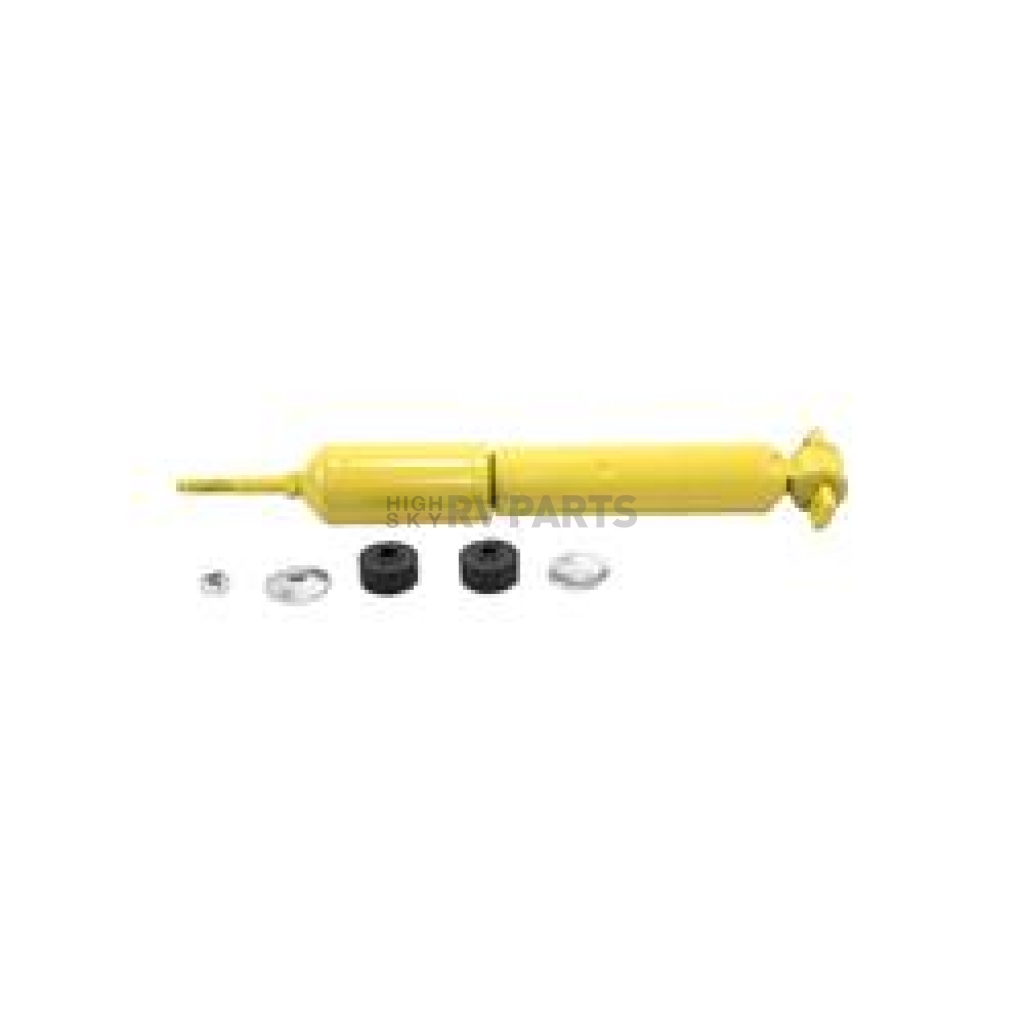

Monroe Shock Absorber

Shock Absorber; Gas-Magnum ®; OE Replacement; Nitrogen Gas Charged; Premium Limited Lifetime Warranty; Single

MPN: 34655

The Monroe® Gas-Magnum® truck shock absorber is designed for mid to full size, hard working pick-up trucks and vans. These units provide firm control without a harsh ride. With up to twice the fluid capacity of standard 1 Inch bore shocks, Monroe® Gas-Magnum® truck shocks work more efficiently with less effort.

Type: Nitrogen Gas Charged

With Coil Spring: No

Internal Design: Monotube

Adjustable: No

Extended Length (IN): 14-7/8 Inch

Compressed Length (IN): 10-1/4 Inch

Upper Mounting Style: Stud

Lower Mounting Style: Cross Pin

Body Color: Yellow

Quantity: Single

Rod Diameter (IN): 5/8 Inch

Valving Type: Application Specific Valving

Rod Finish: Nitrocarburized

Rod Material: Sintered Iron

Body Material: OEM

With Reservoir: No

Includes Dust Shield: Yes

Includes Hardware: Yes

Includes Boot: No

Estimated Install Time (Hours): 0.5

Features

Bore: Lower Operating Pressure Than Standard 1 Inch Bore Units. Special Seal: 'Self-Lubricating' Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction
Reserve Tube: More Fluid For More Consistent Performance. Expanded Reserve Tube For Greater Oil Capacity To Better Dissipate Heat
Piston Rod: Heavy-Duty Nitro Carburized Rod For Long Service Life. Work More Efficiently With Less Effort
All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction
Full Displaced Valving: Better Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride
Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration
Sintered Iron Piston: Stronger Than Traditional Metals, Enhances Durability For Longer Service Life
Limited Lifetime Warranty

Specifications of Monroe Shock Absorber - 34655
Adjustable	No
Body Color	Yellow
Body Material	OEM
Compressed Length (IN)	10-1/4 Inch
Estimated Install Time (Hours)	0.5
Extended Length (IN)	14-7/8 Inch
Includes Boot	No
Includes Dust Shield	Yes
Includes Hardware	Yes
Internal Design	Monotube
Lower Mounting Style	Cross Pin
Quantity	Single
Rod Diameter (IN)	5/8 Inch
Rod Finish	Nitrocarburized
Rod Material	Sintered Iron
Type	Nitrogen Gas Charged
Upper Mounting Style	Stud
Valving Type	Application Specific Valving
With Coil Spring	No
With Reservoir	No
