Mishimoto Radiator RADWRA07V2

Brand: Mishimoto

0 reviews

Have a product question? Ask us
Part Number: MMRAD-WRA-07V2
Part Location: U.S.
Availability: 21 In Stock
Delivery: Ships Out in 1 - 2 Business Days
If purchased before 12:00 EDT - estimated delivery by June 12

Retail: $713.99

Price: $679.99

You Save: $34.00

Color

Black/ White

Core Depth (IN)

1.57 Inch

Core Height (IN)

22 Inch

Core Length (IN)

20.3 Inch

Core Material

Aluminum

Core Rows

Two Tube

Finish

Flow Direction

Cross Flow

Includes Fittings

Includes Mounting Hardware

Inlet Hose Location

Top Left

Share this page

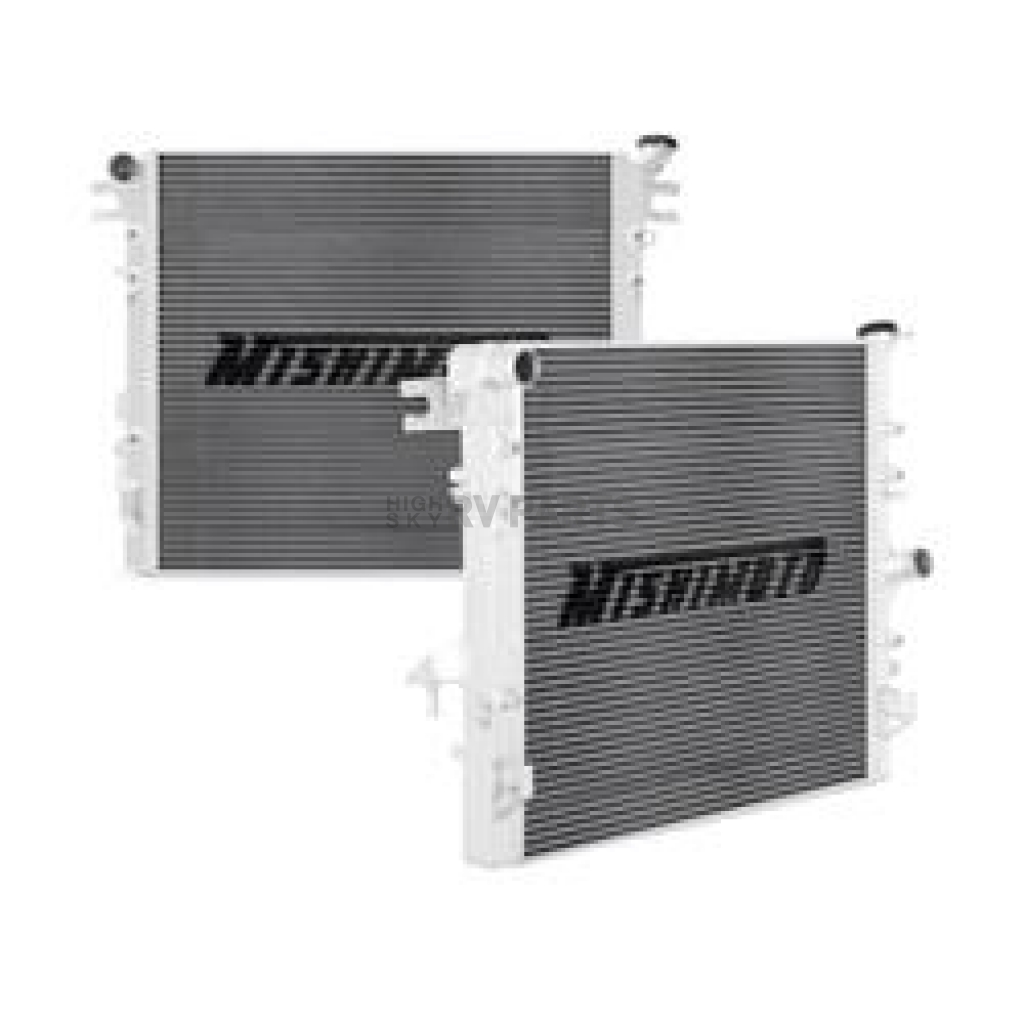

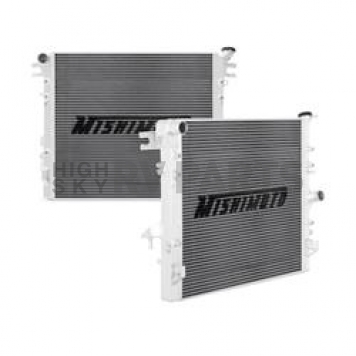

Mishimoto Radiator

Radiator; 21.65 Inch Length x 29.4 Inch Height x 6.89 Inch Depth Overall Dimension; 20.3 Inch Length x 22 Inch Height x 1.57 Inch Depth Core Dimension; Dual Core Rows; Crossflow; Aluminum Core; 1-1/2 Inch Inlet x 1-1/2 Inch Outlet; Single; With Magnetic Drain Plug/ Mounting Hardware

MPN: RADWRA07V2

Performance Jeeps deserve Jeep performance parts. Whether you are sitting in traffic in your stock Jeep Wrangler or ripping through the trail in your supercharged JK, a reliable and effective cooling system is a necessity for reducing engine component wear and for increasing engine longevity. The Mishimoto Jeep JK all-aluminum radiator is precision engineered for direct bolt-in fitment that requires no modification to your vehicle. This Jeep Wrangler radiator provides significant increases in efficiency, thanks to its 1.5 Inch thick core and 160 Percent increase in volume over the factory radiator. The Mishimoto Jeep JK radiator is constructed from high-quality, aircraft-grade aluminum with TIG-welded end tanks and a 100 Percent brazed aluminum core. Our Jeep Wrangler radiators are designed and built to handle the rigors of off-roading, severe weather environments, and competitive driving. This Jeep Wrangler radiator is designed to improve heat dissipation significantly, making this an ideal upgrade for a stock or modified V6.

Flow Direction: Cross Flow

Overall Length (IN): 21.65 Inch

Overall Height (IN): 29.4 Inch

Overall Depth (IN): 6.89 Inch

Core Rows: Two Tube

Core Length (IN): 20.3 Inch

Core Height (IN): 22 Inch

Core Depth (IN): 1.57 Inch

Core Material: Aluminum

Inlet Hose Location: Top Left

Inlet Size (IN): 1-1/2 Inch

Outlet Hose Location: Bottom Right

Outlet Size (IN): 1-1/2 Inch

Finish: Bare

Color: Black/ White

Tank Material: Aluminum

With Radiator Cap: Yes

With Transmission Cooler: No

With Engine Oil Cooler: No

Includes Fittings: No

Includes Mounting Hardware: Yes

Features

100 Percent Brazed Aluminum Core
TIG-Welded To Perfection
Limited Lifetime Warranty

Specifications of Mishimoto Radiator RADWRA07V2
Color	Black/ White
Core Depth (IN)	1.57 Inch
Core Height (IN)	22 Inch
Core Length (IN)	20.3 Inch
Core Material	Aluminum
Core Rows	Two Tube
Finish	Bare
Flow Direction	Cross Flow
Includes Fittings	No
Includes Mounting Hardware	Yes
Inlet Hose Location	Top Left
Inlet Size (IN)	1-1/2 Inch
Outlet Hose Location	Bottom Right
Outlet Size (IN)	1-1/2 Inch
Overall Depth (IN)	6.89 Inch
Overall Height (IN)	29.4 Inch
Overall Length (IN)	21.65 Inch
Tank Material	Aluminum
With Engine Oil Cooler	No
With Radiator Cap	Yes
With Transmission Cooler	No
