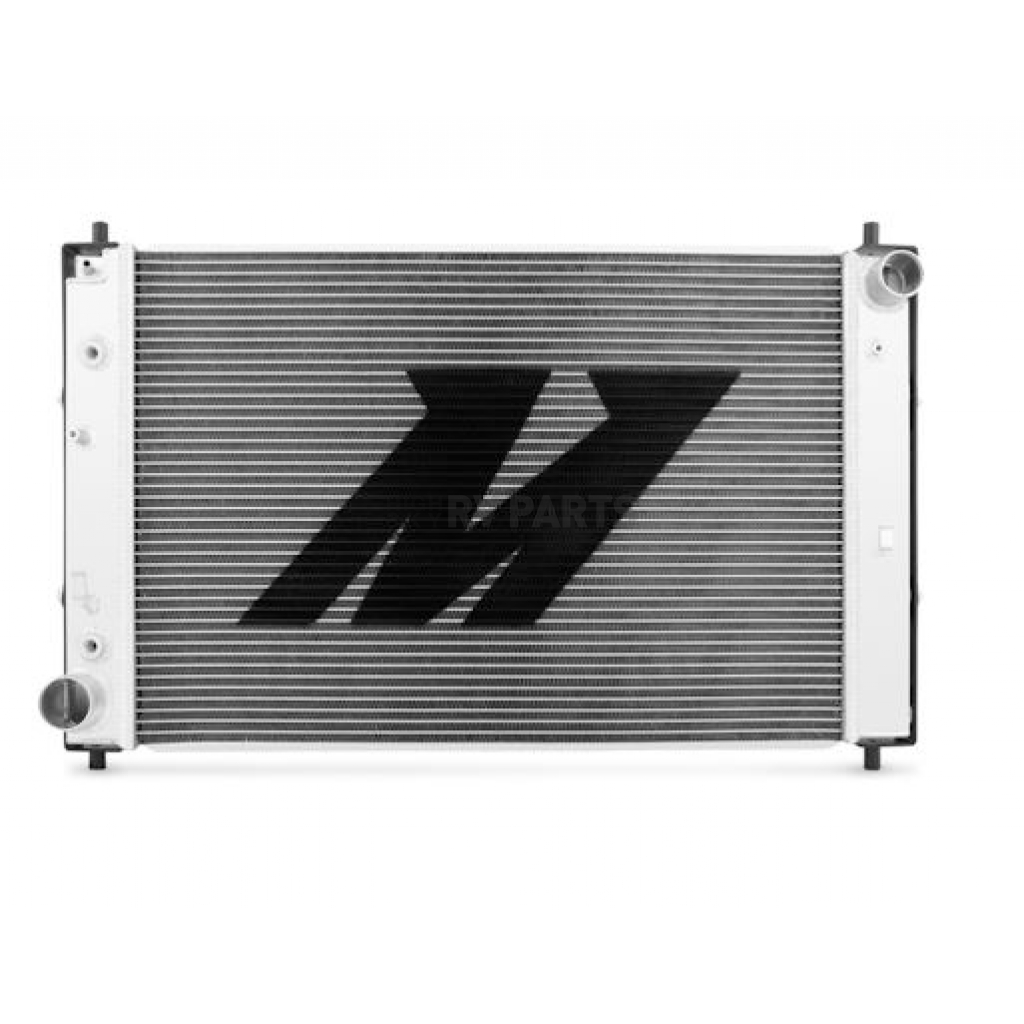

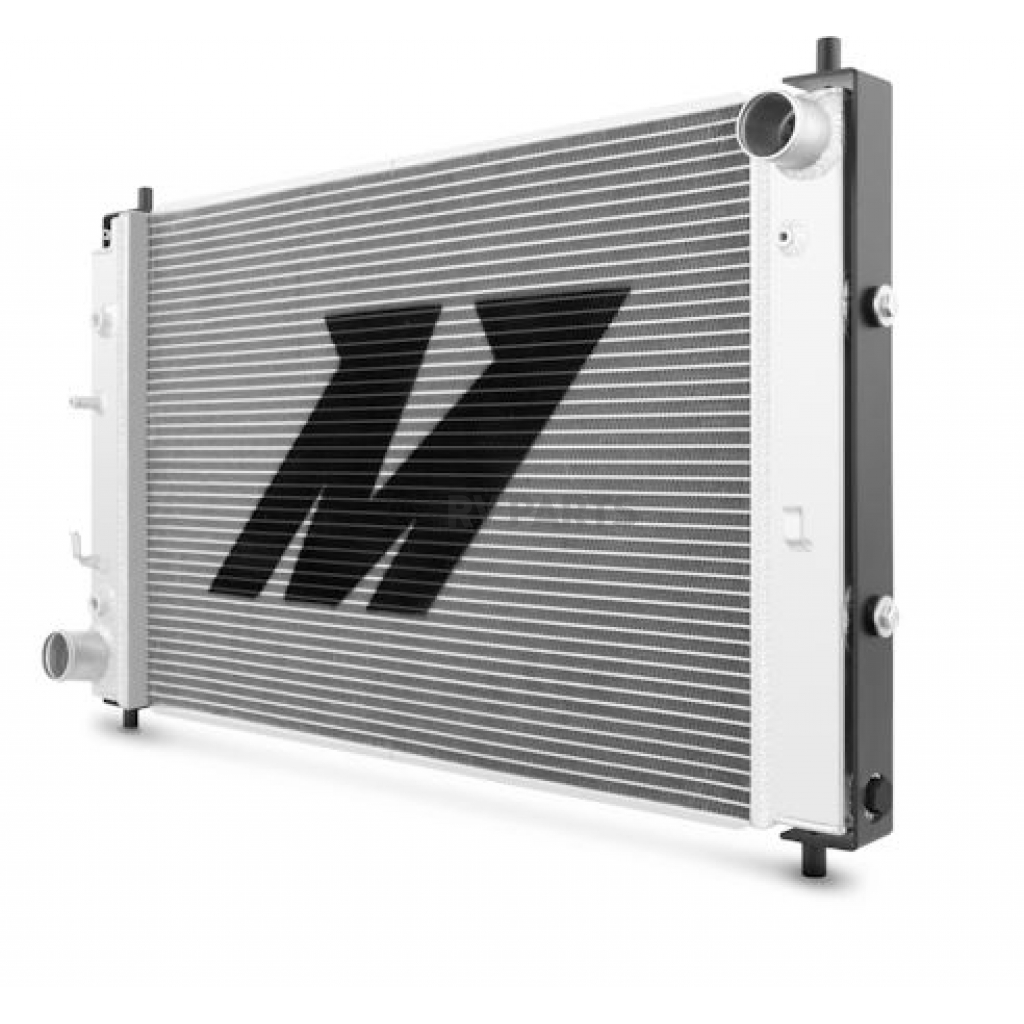

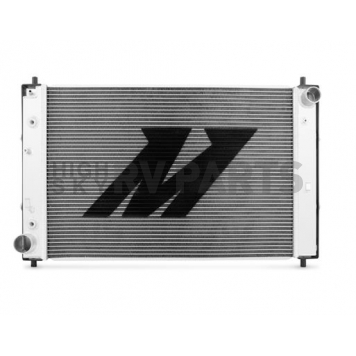

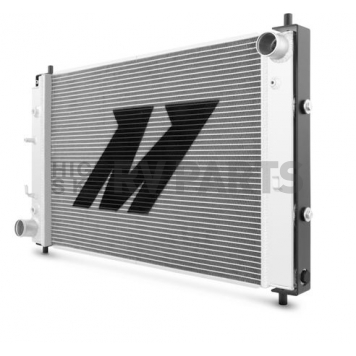

Mishimoto Radiator RADMUS97BA

Brand: Mishimoto

0 reviews

Have a product question? Ask us
Part Number: MMRAD-MUS-97BA
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by June 24

Retail: $528.14

Price: $502.99

You Save: $25.15

Color

Silver

Core Depth (IN)

1.57 Inch

Core Height (IN)

24.92 Inch

Core Length (IN)

17.24 Inch

Core Material

Aluminum

Core Rows

Two Tube

Finish

Flow Direction

Cross Flow

Includes Fittings

Includes Mounting Hardware

Inlet Hose Location

Top Right

Share this page

Mishimoto Radiator

Radiator; 19.76 Inch Length x 31.57 Inch Height x 4.68 Inch Depth Overall Dimension; 17.24 Inch Length x 24.92 Inch Height x 1.57 Inch Depth Core Dimension; Dual Core Rows; Crossflow; Aluminum Core; 1.57 Inch Inlet x 1.77 Inch Outlet; With Transmission Cooler; Single; With Magnetic Drain Plug/ Left And Right Brackets/ Four Rubber Bushings And Metal Collars/ Four Flange Head Bolts/ Four Washers

MPN: RADMUS97BA

Mishimoto has released a revolutionary new radiator for the automatic Ford Mustang. The high torque generated by the Mustangs revealed a fatal flaw in the OEM design, where the torquing chassis would cause the OEM radiators to separate the end tanks from the cores. Utilizing a patented floating bracket system, this Mustang radiator was engineered to eliminate the issues found in the OEM design while simultaneously adding cooling capacity and increasing efficiency. The new Mishimoto Mustang radiator is a direct fit and installs in about two Hours with no cutting or trimming required. As with all our aluminum radiators, this Mustang radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.

Flow Direction: Cross Flow

Overall Length (IN): 19.76 Inch

Overall Height (IN): 31.57 Inch

Overall Depth (IN): 4.68 Inch

Core Rows: Two Tube

Core Length (IN): 17.24 Inch

Core Height (IN): 24.92 Inch

Core Depth (IN): 1.57 Inch

Core Material: Aluminum

Inlet Hose Location: Top Right

Inlet Size (IN): 1.57 Inch

Outlet Hose Location: Bottom Left

Outlet Size (IN): 1.77 Inch

Finish: Raw

Color: Silver

Tank Material: Aluminum

With Radiator Cap: No

With Transmission Cooler: Yes

With Engine Oil Cooler: No

Includes Fittings: Yes

Includes Mounting Hardware: Yes

Please refer the Technical Bulletins attached to the Product Manual tab

Features

Full Aluminum Construction Including Durable, Tig-welded End Tanks
Features A Two-row, Efficient Brazed Aluminum Core
Increased Fluid Capacity And Optimal Heat Dissipation
Perfect For Use On The Street Or Strip
Efficient Temperature Regulation For Both Stock And Modified Vehicles
Utilizes Patent-pending Radiator Stabilizer System Which Isolates The Radiator From The Chassis, Eliminating The Potential Of Chassis Flex From Impacting The Integrity Of The Radiator
Direct Fit
Free Replacement For Accidental Damages
Limited Lifetime Warranty

Specifications of Mishimoto Radiator RADMUS97BA
Color	Silver
Core Depth (IN)	1.57 Inch
Core Height (IN)	24.92 Inch
Core Length (IN)	17.24 Inch
Core Material	Aluminum
Core Rows	Two Tube
Finish	Raw
Flow Direction	Cross Flow
Includes Fittings	Yes
Includes Mounting Hardware	Yes
Inlet Hose Location	Top Right
Inlet Size (IN)	1.57 Inch
Outlet Hose Location	Bottom Left
Outlet Size (IN)	1.77 Inch
Overall Depth (IN)	4.68 Inch
Overall Height (IN)	31.57 Inch
Overall Length (IN)	19.76 Inch
Tank Material	Aluminum
With Engine Oil Cooler	No
With Radiator Cap	No
With Transmission Cooler	Yes
