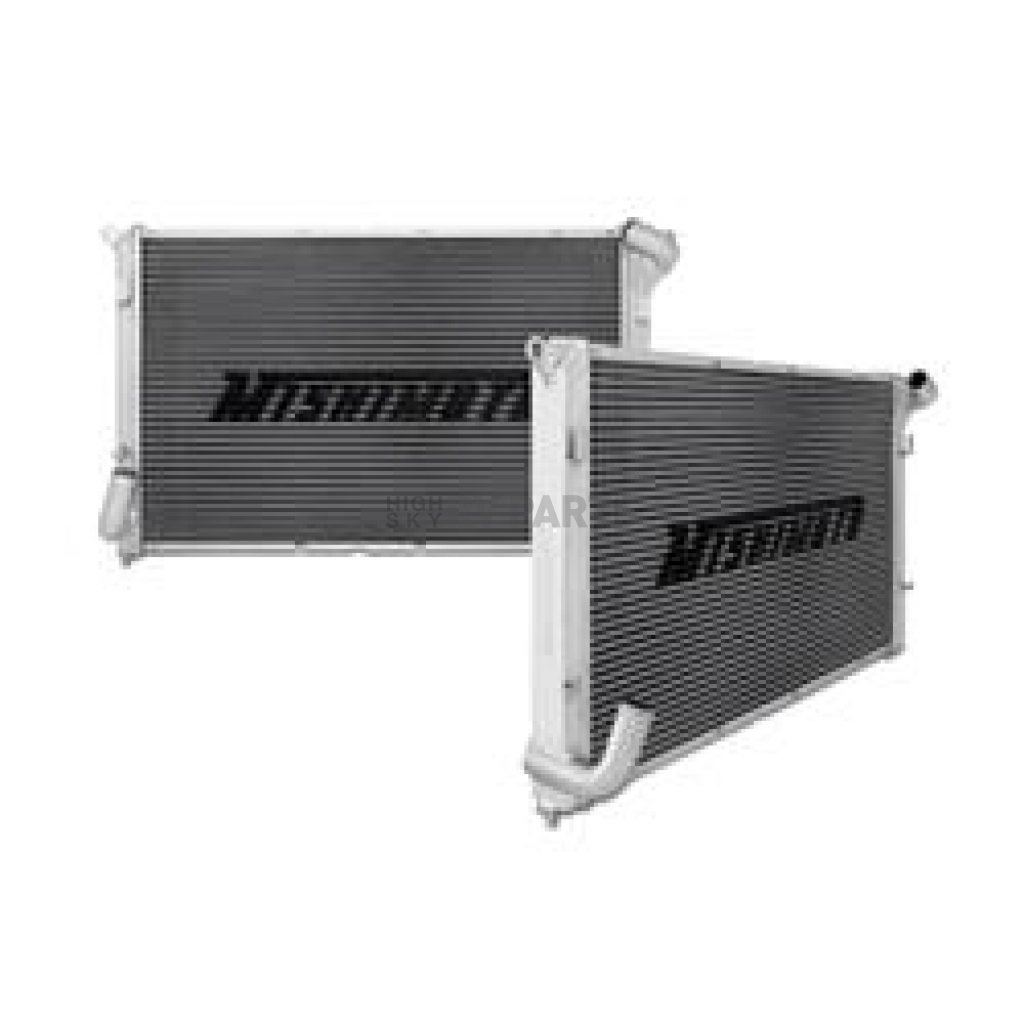

Mishimoto Radiator MRADTINY01

Brand: Mishimoto

0 reviews

Have a product question? Ask us
Part Number: MMRAD-TINY-01
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by June 24

Retail: $494.54

Price: $470.99

You Save: $23.55

Color

Silver

Core Depth (IN)

1.57 Inch

Core Height (IN)

15.28 Inch

Core Length (IN)

22.8 Inch

Core Material

Aluminum

Core Rows

Flow Direction

Cross Flow

Includes Fittings

Includes Mounting Hardware

Inlet Hose Location

Top Right

Inlet Size (IN)

1-1/4 Inch

Share this page

Mishimoto Radiator

Radiator; 28.2 Inch Length x 17.2 Inch Height x 2.07 Inch Depth Overall Dimension; 22.8 Inch Length x 15.28 Inch Height x 1.57 Inch Depth Core Dimension; Dual Core Rows; Crossflow; Aluminum Core With TIG Welded End Tanks; 1-1/4 Inch Inlet X 1-1/4 Inch Outlet; Single

MPN: MRADTINY01

Every Mishimoto race aluminum radiator is designed and engineered to maximize cooling efficiency, boost engine functions, and most importantly, protect your car from overheating on and off the track. Lightweight, made from 100 Percent brazed aluminum, and cast end tanks TIG-welded for increased durability, Mishimoto race radiators will enhance the overall performance of your engine.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.

Flow Direction: Cross Flow

Overall Length (IN): 28.2 Inch

Overall Height (IN): 17.2 Inch

Overall Depth (IN): 2.07 Inch

Core Rows: Dual

Core Length (IN): 22.8 Inch

Core Height (IN): 15.28 Inch

Core Depth (IN): 1.57 Inch

Core Material: Aluminum

Inlet Hose Location: Top Right

Inlet Size (IN): 1-1/4 Inch

Outlet Hose Location: Bottom Left

Outlet Size (IN): 1-1/4 Inch

Color: Silver

Tank Material: Aluminum

With Radiator Cap: No

With Transmission Cooler: No

With Engine Oil Cooler: No

Includes Fittings: Yes

Includes Mounting Hardware: Yes

Please refer the Technical Bulletins attached to the Product Manual tab

Features

Full Aluminum Construction Including Durable, Tig-welded End Tanks. Lightweight
Features A Two-row Efficient Brazed Aluminum Core
Increased Fluid Capacity And Optimal Heat Dissipation
Provides Efficient Temperature Reduction For Both Street And Track Use
Efficient Temperature Regulation For Both Stock And Modified Vehicles
Free Replacement For Accidental Damages
Limited Lifetime Warranty

Specifications of Mishimoto Radiator MRADTINY01
Color	Silver
Core Depth (IN)	1.57 Inch
Core Height (IN)	15.28 Inch
Core Length (IN)	22.8 Inch
Core Material	Aluminum
Core Rows	Dual
Flow Direction	Cross Flow
Includes Fittings	Yes
Includes Mounting Hardware	Yes
Inlet Hose Location	Top Right
Inlet Size (IN)	1-1/4 Inch
Outlet Hose Location	Bottom Left
Outlet Size (IN)	1-1/4 Inch
Overall Depth (IN)	2.07 Inch
Overall Height (IN)	17.2 Inch
Overall Length (IN)	28.2 Inch
Tank Material	Aluminum
With Engine Oil Cooler	No
With Radiator Cap	No
With Transmission Cooler	No
