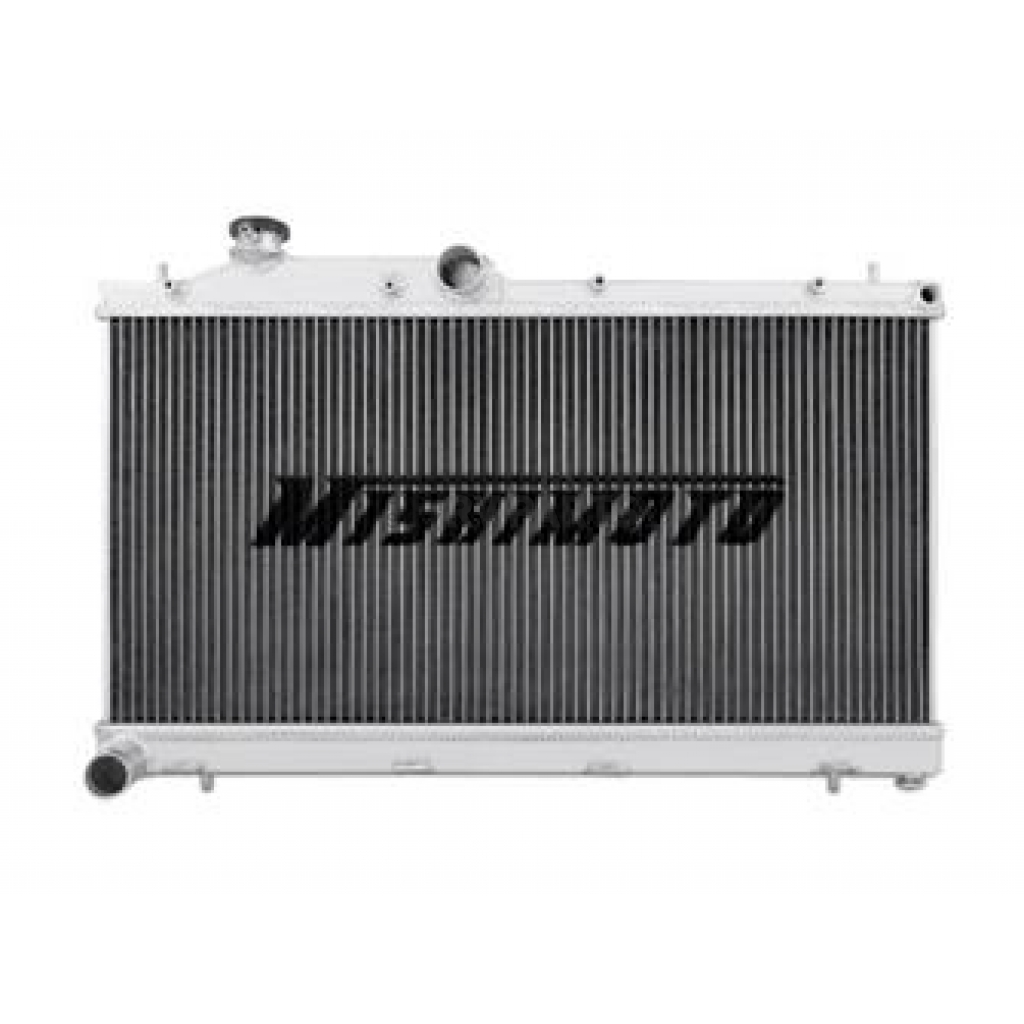

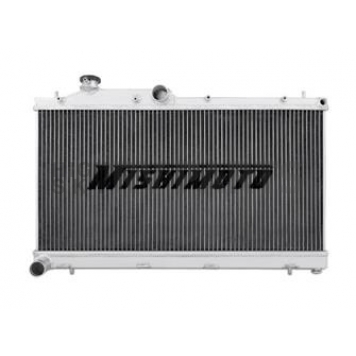

Mishimoto Radiator MRADSTI08X

Brand: Mishimoto

0 reviews

Have a product question? Ask us
Part Number: MMRAD-STI-08X
Part Location: U.S.
Availability: Special Order
Delivery: 2 - 3 Weeks

Retail: $533.39

Price: $507.99

You Save: $25.40

Color

Silver

Core Depth (IN)

2 Inch

Core Height (IN)

13.39 Inch

Core Length (IN)

27.09 Inch

Core Material

Aluminum

Core Rows

Three Tube

Flow Direction

Down Flow

Includes Fittings

Includes Mounting Hardware

Inlet Hose Location

Top Center

Inlet Size (IN)

1.54 Inch

Share this page

Mishimoto Radiator

Radiator; 28 Inch Length x 21.8 Inch Height x 2-1/2 Inch Depth Overall Dimension; 27.09 Inch Length x 13.39 Inch Height x 2 Inch Depth Core Dimension; Three Core Rows; Downflow; Aluminum Core; 1.54 Inch Inlet x 1.54 Inch Outlet; Single; With Magnetic Drain Plug/ Radiator Cap/ Filler Neck/ Two Overflow Nipples

MPN: MRADSTI08X

The Mishimoto X-Line performance aluminum radiator for the Subaru WRX and STI is designed with a larger 3-row core to maximize cooling efficiency, boost engine functions, and most importantly protect your car from overheating. It is the ideal upgrade to the stock Subaru radiator whether you drive your vehicle daily or take it for track runs. The Mishimoto aluminum WRX and STI radiator features a lightweight triple core, 100 Percent brazed aluminum, and polished end tanks, enhancing the overall performance of your engine. Every Mishimoto aluminum radiator is a direct stock fit making installation effortless with no cutting or modification required.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.

Flow Direction: Down Flow

Overall Length (IN): 28 Inch

Overall Height (IN): 21.8 Inch

Overall Depth (IN): 2-1/2 Inch

Core Rows: Three Tube

Core Length (IN): 27.09 Inch

Core Height (IN): 13.39 Inch

Core Depth (IN): 2 Inch

Core Material: Aluminum

Inlet Hose Location: Top Center

Inlet Size (IN): 1.54 Inch

Outlet Hose Location: Bottom Left

Outlet Size (IN): 1.54 Inch

Color: Silver

Tank Material: Aluminum

With Radiator Cap: Yes

With Transmission Cooler: No

With Engine Oil Cooler: No

Includes Fittings: Yes

Includes Mounting Hardware: No

Please refer the Technical Bulletins attached to the Product Manual tab

Features

Premium Radiator Has 3-row Core For Improved Strength And Reliability
16 Percent Thinner-than-stock Tubes Allow For More Surface Contact, Increasing Cooling Efficiency
Greater Density Of Rows For Higher Cooling Capacity
More Contact Points For Additional Heat Transfer
3-row Design Creates More Air Turbulence, Maximizing Cooling Efficiency
Free Replacement For Accidental Damages
Limited Lifetime Warranty

Specifications of Mishimoto Radiator MRADSTI08X
Color	Silver
Core Depth (IN)	2 Inch
Core Height (IN)	13.39 Inch
Core Length (IN)	27.09 Inch
Core Material	Aluminum
Core Rows	Three Tube
Flow Direction	Down Flow
Includes Fittings	Yes
Includes Mounting Hardware	No
Inlet Hose Location	Top Center
Inlet Size (IN)	1.54 Inch
Outlet Hose Location	Bottom Left
Outlet Size (IN)	1.54 Inch
Overall Depth (IN)	2-1/2 Inch
Overall Height (IN)	21.8 Inch
Overall Length (IN)	28 Inch
Tank Material	Aluminum
With Engine Oil Cooler	No
With Radiator Cap	Yes
With Transmission Cooler	No
