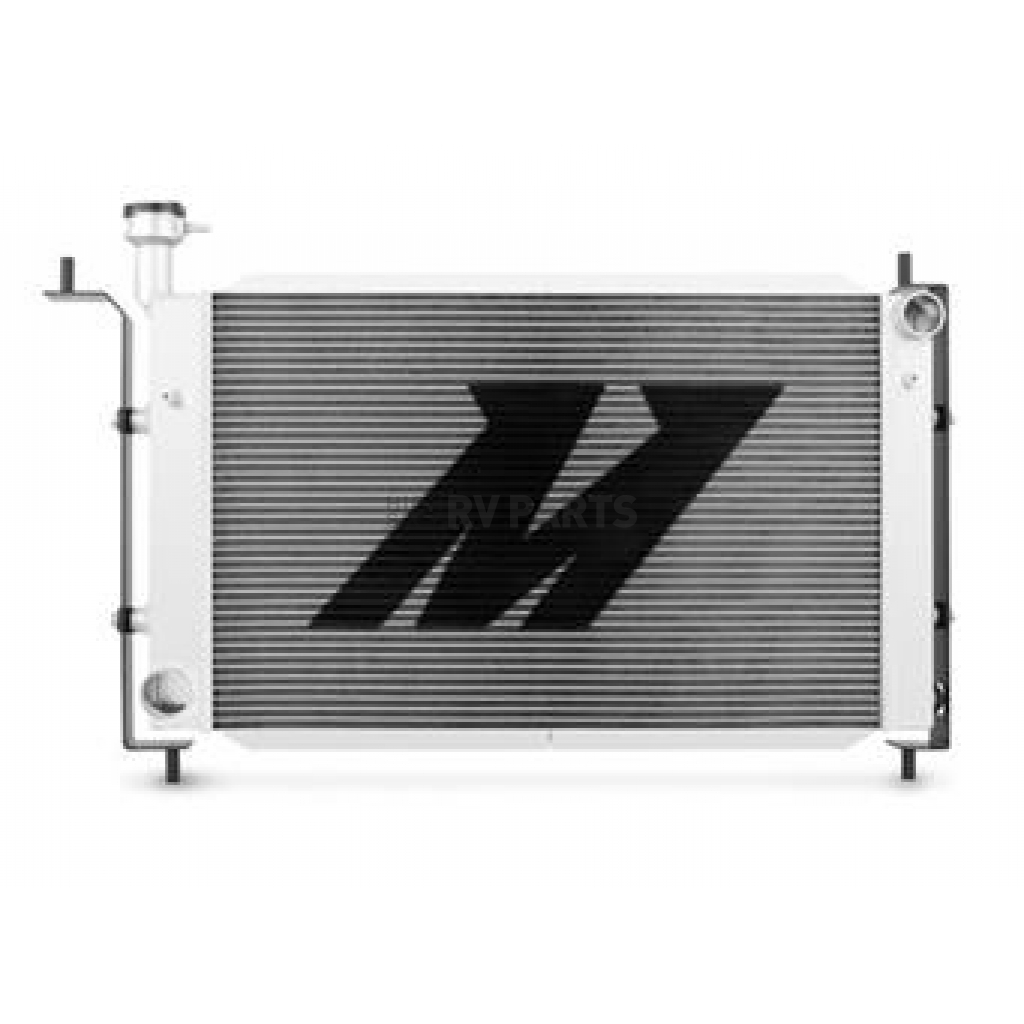

Mishimoto Radiator MRADMUS94B
Color
Silver
Core Depth (IN)
1.57 Inch
Core Height (IN)
24.02 Inch
Core Length (IN)
15.28 Inch
Core Material
Aluminum
Core Rows
Two Tube
Finish
Raw
Flow Direction
Cross Flow
Includes Fittings
Yes
Includes Mounting Hardware
Yes
Inlet Hose Location
Top Right
Share this page
Mishimoto Radiator
Radiator; 20-1/2 Inch Length x 34.8 Inch Height x 4.2 Inch Depth Overall Dimension; 15.28 Inch Length x 24.02 Inch Height x 1.57 Inch Depth Core Dimension; Dual Core Rows; Crossflow; Aluminum Core; 1-1/2 Inch Inlet x 1.77 Inch Outlet; Single; With Magnetic Drain Plug/ Radiator Cap/ Filler Neck/ Left And Right Brackets/ Four Rubber Bushings And Metal Collars/ Four Flange Head Bolts/ Four Washers
MPN: MRADMUS94B
Mishimoto has released a revolutionary new radiator for the Ford Mustang. The high torque generated by the Mustangs revealed a fatal flaw in the OEM design, where the torquing chassis would cause the OEM radiators to separate the end tanks from the cores. Utilizing a patent-pending floating bracket system, this Mustang radiator was engineered to eliminate the issues found in the OEM design while simultaneously adding cooling capacity and increasing efficiency. The new Mishimoto Mustang radiator is a direct fit and installs in about two Hours with no cutting or trimming required.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.
Flow Direction: Cross Flow
Overall Length (IN): 20-1/2 Inch
Overall Height (IN): 34.8 Inch
Overall Depth (IN): 4.2 Inch
Core Rows: Two Tube
Core Length (IN): 15.28 Inch
Core Height (IN): 24.02 Inch
Core Depth (IN): 1.57 Inch
Core Material: Aluminum
Inlet Hose Location: Top Right
Inlet Size (IN): 1-1/2 Inch
Outlet Hose Location: Bottom Left
Outlet Size (IN): 1.77 Inch
Finish: Raw
Color: Silver
Tank Material: Aluminum
With Radiator Cap: Yes
With Transmission Cooler: No
With Engine Oil Cooler: No
Includes Fittings: Yes
Includes Mounting Hardware: Yes
Please refer the Technical Bulletins attached to the Product Manual tab
Features
- Full Aluminum Construction Including Durable, Tig-welded End Tanks
- Features A Two-row, Efficient Brazed Aluminum Core
- Increased Fluid Capacity And Optimal Heat Dissipation
- Perfect For Use On The Street Or Strip
- Efficient Temperature Regulation For Both Stock And Modified Vehicles
- Utilizes Patent-pending Radiator Stabilizer System Which Isolates The Radiator From The Chassis, Eliminating The Potential Of Chassis Flex From Impacting The Integrity Of The Radiator
- Direct Fit
- Free Replacement For Accidental Damages
- Limited Lifetime Warranty
Specifications of Mishimoto Radiator MRADMUS94B | |
Color | Silver |
Core Depth (IN) | 1.57 Inch |
Core Height (IN) | 24.02 Inch |
Core Length (IN) | 15.28 Inch |
Core Material | Aluminum |
Core Rows | Two Tube |
Finish | Raw |
Flow Direction | Cross Flow |
Includes Fittings | Yes |
Includes Mounting Hardware | Yes |
Inlet Hose Location | Top Right |
Inlet Size (IN) | 1-1/2 Inch |
Outlet Hose Location | Bottom Left |
Outlet Size (IN) | 1.77 Inch |
Overall Depth (IN) | 4.2 Inch |
Overall Height (IN) | 34.8 Inch |
Overall Length (IN) | 20-1/2 Inch |
Tank Material | Aluminum |
With Engine Oil Cooler | No |
With Radiator Cap | Yes |
With Transmission Cooler | No |
1994 Ford Mustang
1995 Ford Mustang
1995 Ford Mustang
