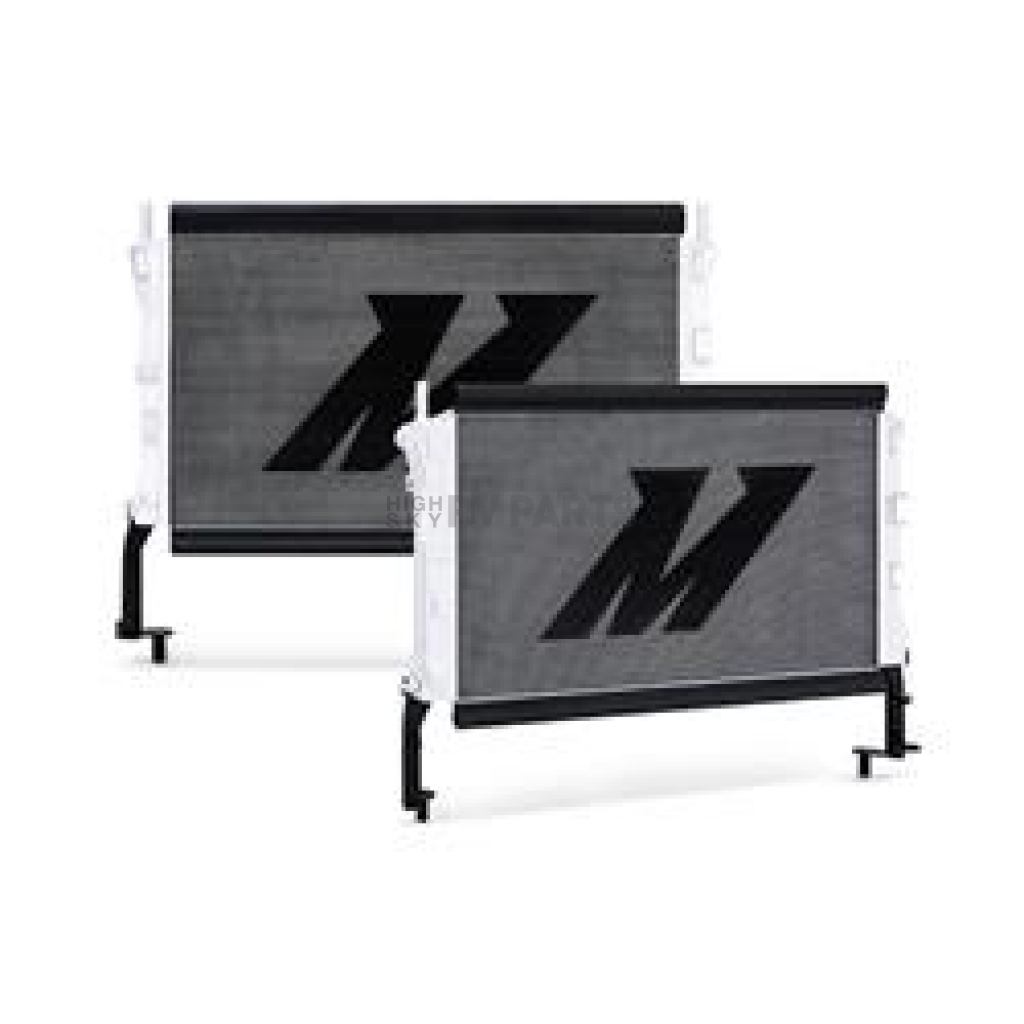

Mishimoto Radiator MRADMUS415

Brand: Mishimoto

0 reviews

Have a product question? Ask us
Part Number: MMRAD-MUS4-15
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by June 25

Retail: $729.74

Price: $694.99

You Save: $34.75

Color

Silver

Core Depth (IN)

2.05 Inch

Core Height (IN)

25.35 Inch

Core Length (IN)

14.7 Inch

Core Material

Aluminum

Core Rows

Three Tube

Finish

Polished

Flow Direction

Cross Flow

Includes Fittings

Includes Mounting Hardware

Inlet Hose Location

Top Right

Share this page

Mishimoto Radiator

Radiator; 15-1/4 Inch Length x 29-3/4 Inch Height x 4-3/4 Inch Depth Overall Dimension; 14.7 Inch Length x 25.35 Inch Height x 2.05 Inch Depth Core Dimension; Three Core Rows; Crossflow; Aluminum Core With TIG Welded End Tanks; 1.34 Inch Inlet x 1.34 Inch Outlet; Single; With Magnetic Drain Plug/ Two Mounting Brackets/ Mounting Hardware/ Two Pre-Cut Rubber Trim Seal

MPN: MRADMUS415

The Mishimoto Ford Mustang EcoBoost Performance Aluminum Radiator is designed and engineered to reduce coolant temperatures substantially, and to protect your Mustang from overheating during aggressive driving or hot lapping sessions. It is the ideal upgrade to the stock EcoBoost Mustang radiator, and will outperform even the upgraded Ford performance package radiator. The Mishimoto Mustang EcoBoost radiator features a large three-row core, 100 Percent brazed aluminum, and polished end tanks, enhancing the overall performance of your engine. The engineers at Mishimoto designed this Mustang EcoBoost radiator with a 72.5 Percent increase in coolant capacity over the base-model radiator, and 53.3 Percent increase in coolant capacity over the larger performance package radiator. This Mustang radiator also has a 22 Percent increase in coolant surface area, and 50 Percent increase in air surface area over the larger performance package radiator, making it an ideal upgrade to keep your Mustang EcoBoost running cool! This innovative Mustang radiator design features steel lower mounting brackets that are fully functional with the stock intercooler or the Mishimoto EcoBoost Performance Intercooler. Every Mishimoto aluminum radiator is a direct stock fit making installation effortless, with no cutting or modification required. Like all of our EcoBoost Mustang parts, this radiator comes with the Mishimoto Lifetime Warranty.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.

Flow Direction: Cross Flow

Overall Length (IN): 15-1/4 Inch

Overall Height (IN): 29-3/4 Inch

Overall Depth (IN): 4-3/4 Inch

Core Rows: Three Tube

Core Length (IN): 14.7 Inch

Core Height (IN): 25.35 Inch

Core Depth (IN): 2.05 Inch

Core Material: Aluminum

Inlet Hose Location: Top Right

Inlet Size (IN): 1.34 Inch

Outlet Hose Location: Bottom Left

Outlet Size (IN): 1.34 Inch

Finish: Polished

Color: Silver

Tank Material: Aluminum

With Radiator Cap: No

With Transmission Cooler: No

With Engine Oil Cooler: No

Includes Fittings: Yes

Includes Mounting Hardware: Yes

Please refer the Technical Bulletins attached to the Product Manual tab

Features

72.5 Percent Increase In Coolant Capacity Over The Base Model Radiator
53 Percent Increase In Coolant Capacity Over The Performance Package Radiator
22 Percent Increase In Coolant Surface Area (tubes) Over The Stock Performance Package Radiator
Features A Large Three-row Core, 100 Percent Brazed Aluminum, And Polished End Tanks, Enhancing The Overall Performance Of Your Engine
Free Replacement For Accidental Damages
Limited Lifetime Warranty

Specifications of Mishimoto Radiator MRADMUS415
Color	Silver
Core Depth (IN)	2.05 Inch
Core Height (IN)	25.35 Inch
Core Length (IN)	14.7 Inch
Core Material	Aluminum
Core Rows	Three Tube
Finish	Polished
Flow Direction	Cross Flow
Includes Fittings	Yes
Includes Mounting Hardware	Yes
Inlet Hose Location	Top Right
Inlet Size (IN)	1.34 Inch
Outlet Hose Location	Bottom Left
Outlet Size (IN)	1.34 Inch
Overall Depth (IN)	4-3/4 Inch
Overall Height (IN)	29-3/4 Inch
Overall Length (IN)	15-1/4 Inch
Tank Material	Aluminum
With Engine Oil Cooler	No
With Radiator Cap	No
With Transmission Cooler	No
