Mishimoto Radiator MRADLCR81X
Color
Silver
Core Depth (IN)
2 Inch
Core Height (IN)
15-3/4 Inch
Core Length (IN)
23.9 Inch
Core Material
Aluminum
Core Rows
Three Tube
Finish
Polished
Flow Direction
Down Flow
Includes Fittings
Yes
Includes Mounting Hardware
No
Inlet Hose Location
Top Left
Share this page
Mishimoto Radiator

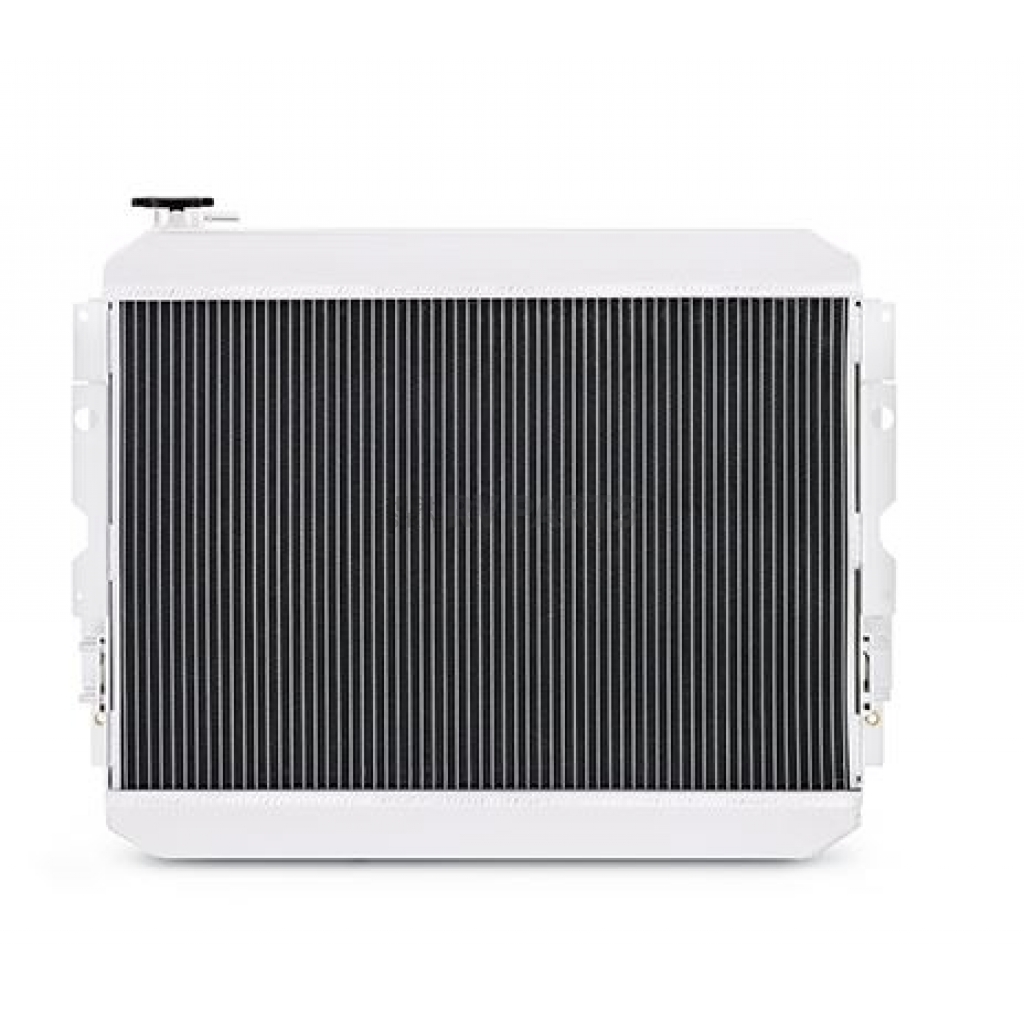

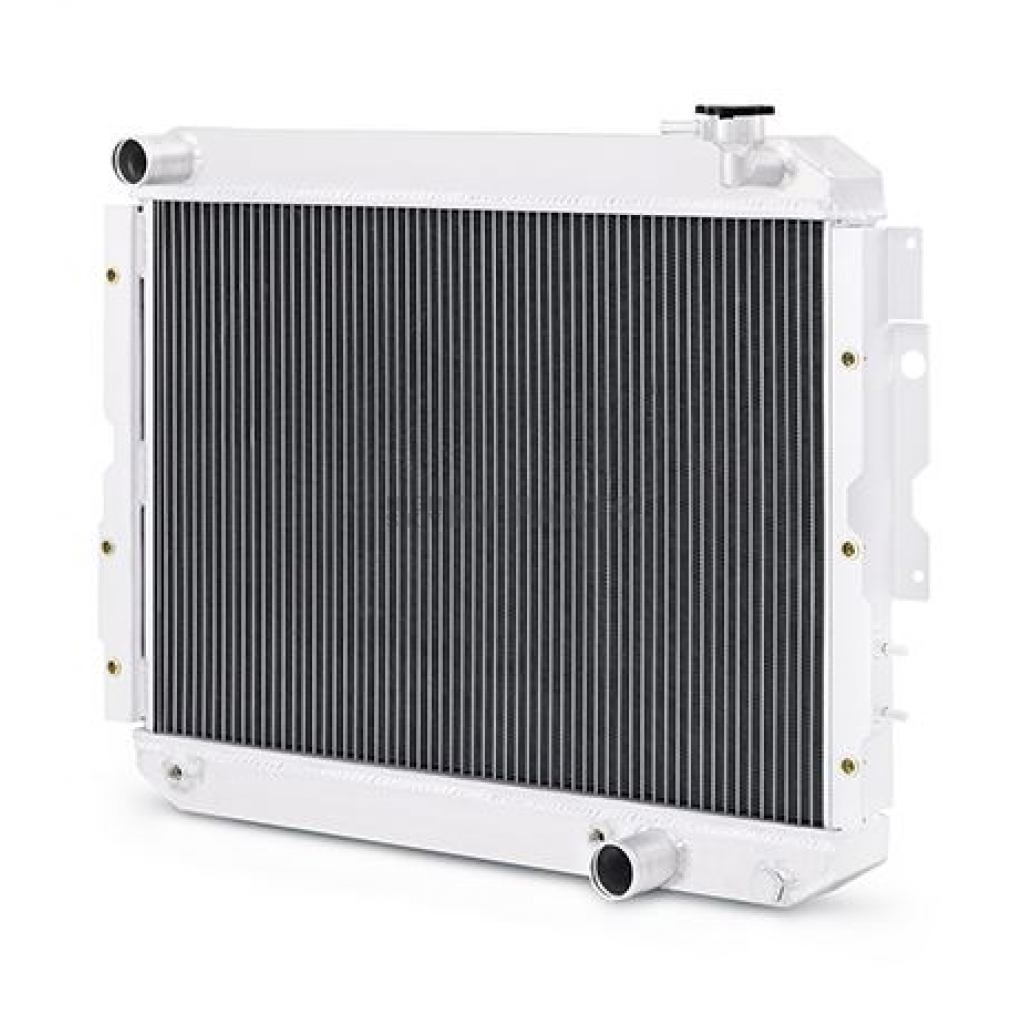

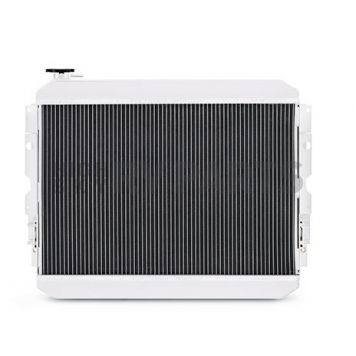

Radiator; 26.8 Inch Length x 20.9 Inch Height x 6.1 Inch Depth Overall Dimension; 23.9 Inch Length x 15-3/4 Inch Height x 2 Inch Depth Core Dimension; Three Core Rows; Downflow; Aluminum Core; 1-1/2 Inch Inlet x 1-1/2 Inch Outlet; With Transmission Cooler; Single; With Magnetic Drain Plug/ Radiator Cap/ Filler neck
MPN: MRADLCR81X
If you’re looking to upgrade your Toyota parts, look no further! The Mishimoto Toyota Land Cruiser radiator is an ideal upgrade for the brittle stock radiator, and provides your Cruiser with enhanced reliability and improved cooling efficiency. The Mishimoto radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. As with every Mishimoto aluminum radiator, this radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.
Flow Direction: Down Flow
Overall Length (IN): 26.8 Inch
Overall Height (IN): 20.9 Inch
Overall Depth (IN): 6.1 Inch
Core Rows: Three Tube
Core Length (IN): 23.9 Inch
Core Height (IN): 15-3/4 Inch
Core Depth (IN): 2 Inch
Core Material: Aluminum
Inlet Hose Location: Top Left
Inlet Size (IN): 1-1/2 Inch
Outlet Hose Location: Bottom Right
Outlet Size (IN): 1-1/2 Inch
Finish: Polished
Color: Silver
Tank Material: Aluminum
With Radiator Cap: Yes
With Transmission Cooler: Yes
With Engine Oil Cooler: No
Includes Fittings: Yes
Includes Mounting Hardware: No
Please refer the Technical Bulletins attached to the Product Manual tab
Features
- All-aluminum Construction With Durable, Tig-welded End Tanks
- Features An Internal Transmission Cooler To Provide Optimal Fluid Temperatures For Automatic Transmissions
- Increased Coolant Capacity And Superior Heat Dissipation
- Billet Aluminum Fill Neck
- Free Replacement For Accidental Damages
- Limited Lifetime Warranty
| Specifications of Mishimoto Radiator MRADLCR81X | |
| Color | Silver |
| Core Depth (IN) | 2 Inch |
| Core Height (IN) | 15-3/4 Inch |
| Core Length (IN) | 23.9 Inch |
| Core Material | Aluminum |
| Core Rows | Three Tube |
| Finish | Polished |
| Flow Direction | Down Flow |
| Includes Fittings | Yes |
| Includes Mounting Hardware | No |
| Inlet Hose Location | Top Left |
| Inlet Size (IN) | 1-1/2 Inch |
| Outlet Hose Location | Bottom Right |
| Outlet Size (IN) | 1-1/2 Inch |
| Overall Depth (IN) | 6.1 Inch |
| Overall Height (IN) | 20.9 Inch |
| Overall Length (IN) | 26.8 Inch |
| Tank Material | Aluminum |
| With Engine Oil Cooler | No |
| With Radiator Cap | Yes |
| With Transmission Cooler | Yes |
1981 Toyota Land Cruiser
1982 Toyota Land Cruiser
1983 Toyota Land Cruiser
1984 Toyota Land Cruiser
1985 Toyota Land Cruiser
1986 Toyota Land Cruiser
1987 Toyota Land Cruiser
1988 Toyota Land Cruiser
1989 Toyota Land Cruiser
1990 Toyota Land Cruiser
1982 Toyota Land Cruiser
1983 Toyota Land Cruiser
1984 Toyota Land Cruiser
1985 Toyota Land Cruiser
1986 Toyota Land Cruiser
1987 Toyota Land Cruiser
1988 Toyota Land Cruiser
1989 Toyota Land Cruiser
1990 Toyota Land Cruiser
