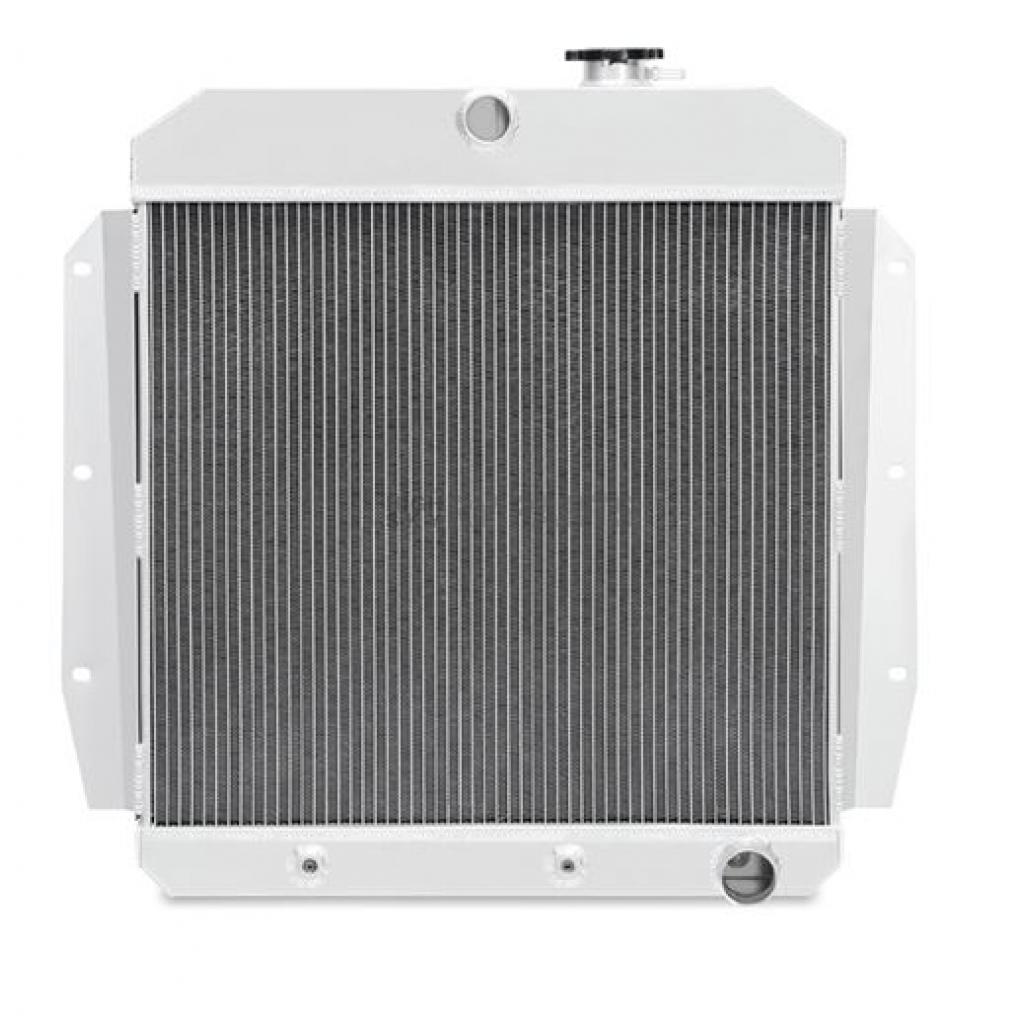

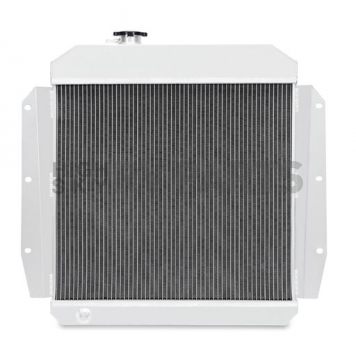

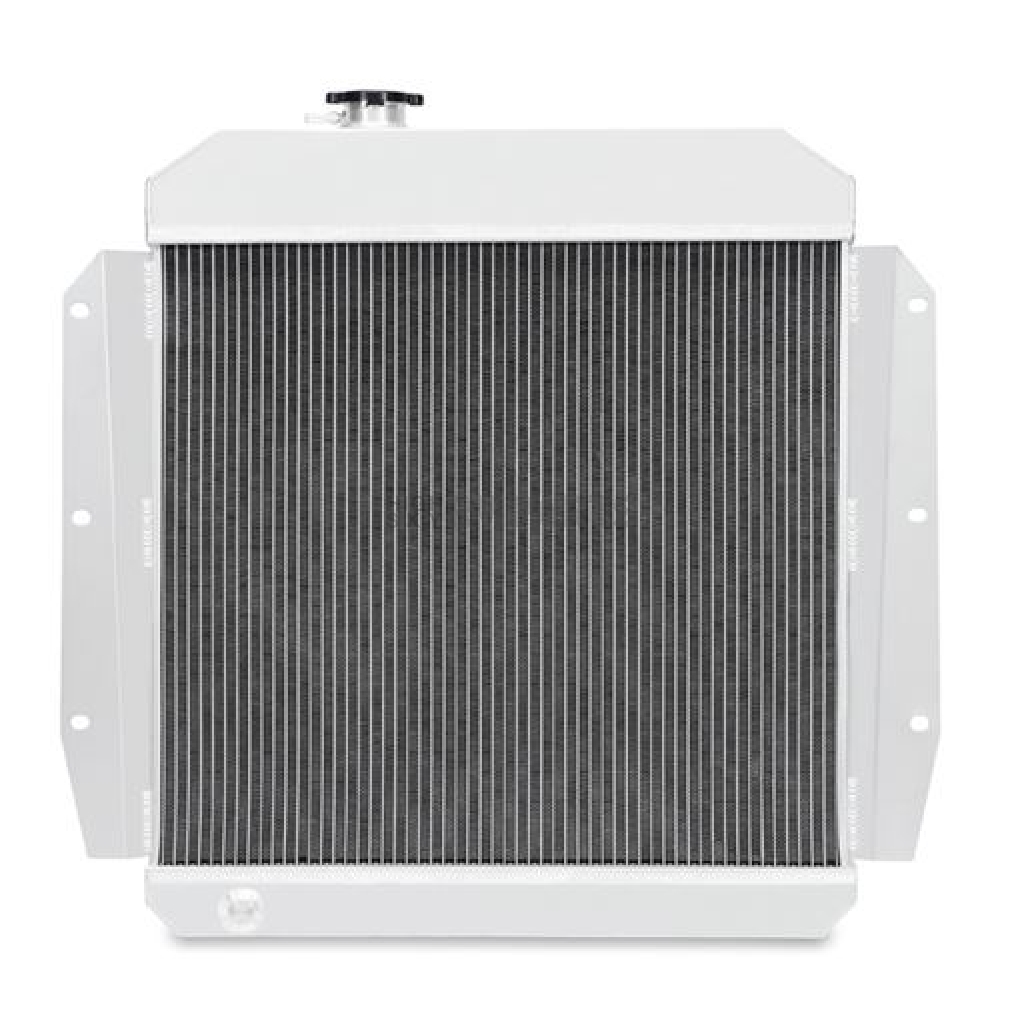

Mishimoto Radiator MRADGMT55X
Color
Silver
Core Depth (IN)
2 Inch
Core Height (IN)
21.7 Inch
Core Length (IN)
19.4 Inch
Core Material
Aluminum
Core Rows
Three Tube
Finish
Polished
Flow Direction
Down Flow
Includes Fittings
Yes
Includes Mounting Hardware
No
Inlet Hose Location
Top Center
Share this page
Mishimoto Radiator
Radiator; 26.2 Inch Length x 27 Inch Height x 5.6 Inch Depth Overall Dimension; 19.4 Inch Length x 21.7 Inch Height x 2 Inch Depth Core Dimension; Three Core Rows; Downflow; Aluminum Core With TIG Welded End Tanks; 1-1/2 Inch Inlet x 1-3/4 Inch Outlet; With Transmission Cooler; Single; With Magnetic Drain Plug/ Radiator Cap
MPN: MRADGMT55X
If you're looking to upgrade your GM 3100 Series parts, look no further! The Mishimoto GM 3100 Series Truck X-Line Performance Aluminum Radiator provides your truck with enhanced reliability, improved cooling efficiency, and is an ideal upgrade for the brittle stock radiator. Whether you use your classic for daily driving or take it to the track, many people overlook the importance of installing an upgraded radiator in their engine. A stock radiator cannot handle the heat that comes along with having a great deal of Horsepower. The Mishimoto GM 3100 Series Truck X-Line Aluminum Radiator is manufactured using durable aircraft-quality Aluminum end tanks, precision TIG-welded to an efficient brazed Aluminum core. The inlet and outlet provide precise leak-free connections. And Backed by Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.
Flow Direction: Down Flow
Overall Length (IN): 26.2 Inch
Overall Height (IN): 27 Inch
Overall Depth (IN): 5.6 Inch
Core Rows: Three Tube
Core Length (IN): 19.4 Inch
Core Height (IN): 21.7 Inch
Core Depth (IN): 2 Inch
Core Material: Aluminum
Inlet Hose Location: Top Center
Inlet Size (IN): 1-1/2 Inch
Outlet Hose Location: Bottom Right
Outlet Size (IN): 1-3/4 Inch
Finish: Polished
Color: Silver
Tank Material: Aluminum
With Radiator Cap: Yes
With Transmission Cooler: Yes
With Engine Oil Cooler: No
Includes Fittings: Yes
Includes Mounting Hardware: No
Please refer the Technical Bulletins attached to the Product Manual tab
Features
- 100 Percent Aluminum Construction Provides Greater Heat And Pressure Tolerance, Better Heat Dissipation, Increased Durability, Improved Cooling Efficiency, And Improved Structural Rigidity
- Billet Aluminum Fill Neck
- Features Internal Transmission Cooler To Provide Optimal Fluid Temperatures For Automatic Transmissions
- Inlet And Outlet Provide Precise Leak-free Connections
- Free Replacement For Accidental Damages
- Limited Lifetime Warranty
| Specifications of Mishimoto Radiator MRADGMT55X | |
| Color | Silver |
| Core Depth (IN) | 2 Inch |
| Core Height (IN) | 21.7 Inch |
| Core Length (IN) | 19.4 Inch |
| Core Material | Aluminum |
| Core Rows | Three Tube |
| Finish | Polished |
| Flow Direction | Down Flow |
| Includes Fittings | Yes |
| Includes Mounting Hardware | No |
| Inlet Hose Location | Top Center |
| Inlet Size (IN) | 1-1/2 Inch |
| Outlet Hose Location | Bottom Right |
| Outlet Size (IN) | 1-3/4 Inch |
| Overall Depth (IN) | 5.6 Inch |
| Overall Height (IN) | 27 Inch |
| Overall Length (IN) | 26.2 Inch |
| Tank Material | Aluminum |
| With Engine Oil Cooler | No |
| With Radiator Cap | Yes |
| With Transmission Cooler | Yes |
