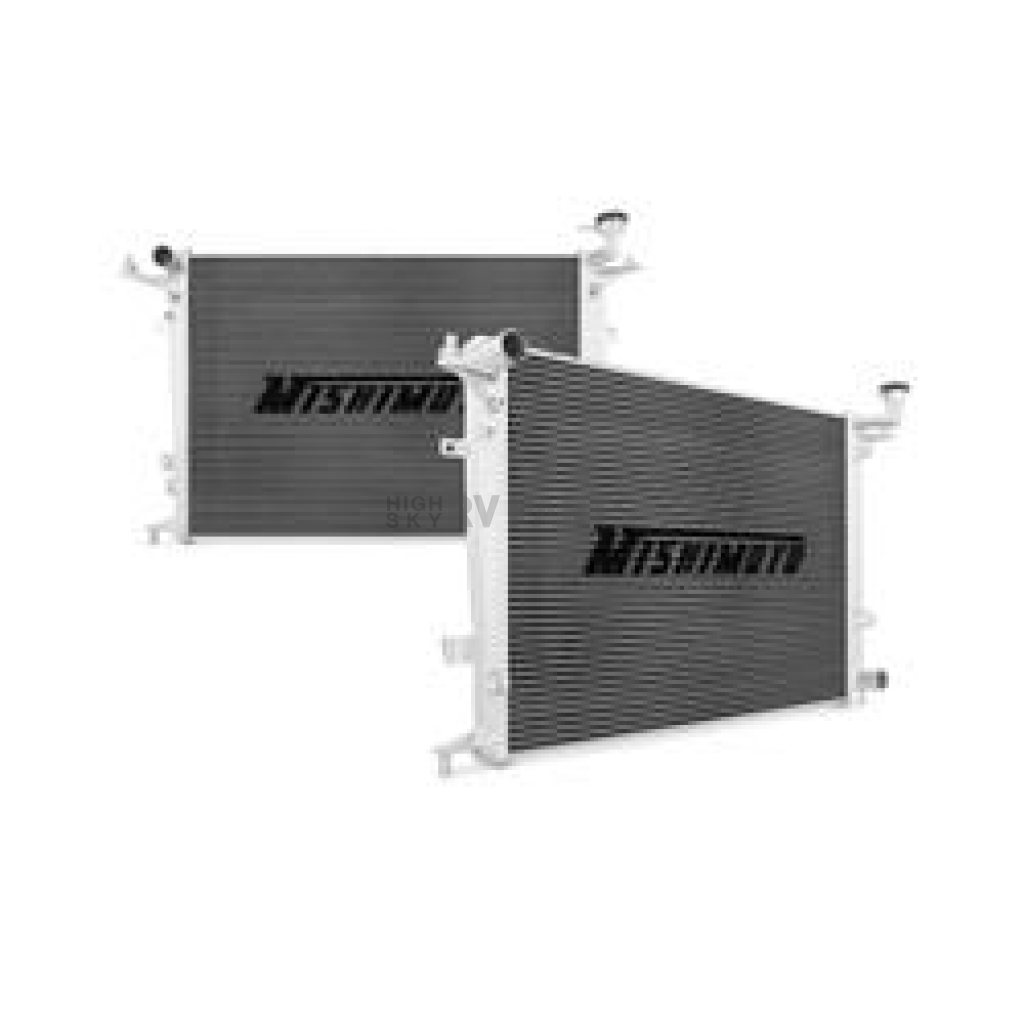

Mishimoto Radiator MRADGEN610

Brand: Mishimoto

0 reviews

Have a product question? Ask us
Part Number: MMRAD-GEN6-10
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by June 24

Retail: $506.09

Price: $481.99

You Save: $24.10

Color

Silver

Core Depth (IN)

1.34 Inch

Core Height (IN)

25.12 Inch

Core Length (IN)

19.21 Inch

Core Material

Aluminum

Core Rows

Two Tube

Flow Direction

Cross Flow

Includes Fittings

Includes Mounting Hardware

Inlet Hose Location

Top Left

Inlet Size (IN)

1.46 Inch

Share this page

Mishimoto Radiator

Radiator; 20.9 Inch Length x 33.1 Inch Height x 5.4 Inch Depth Overall Dimension; 19.21 Inch Length x 25.12 Inch Height x 1.34 Inch Depth Core Dimension; Dual Core Rows; Crossflow; Aluminum Core; 1.46 Inch Inlet x 1.46 Inch Outlet; Single; With Magnetic Drain Plug/ Radiator Cap/ Bleeder Plug/ Filler neck

MPN: MRADGEN610

Mishimoto has developed a performance aluminum radiator available for the Hyundai Genesis Coupe. This is the ideal upgrade to your stock Genesis Coupe radiator. Having a high-strung V6 set up produces a great amount of heat; by replacing your current Hyundai Genesis radiator with a top of the line Mishimoto performance aluminum radiator you will undoubtedly notice a cooler, more efficient running engine. The new application is specifically designed and engineered as a direct OEM fit with no modification required for easy installation. As with all of our products this aluminum radiator is protected by the Mishimoto Lifetime Warranty.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.

Flow Direction: Cross Flow

Overall Length (IN): 20.9 Inch

Overall Height (IN): 33.1 Inch

Overall Depth (IN): 5.4 Inch

Core Rows: Two Tube

Core Length (IN): 19.21 Inch

Core Height (IN): 25.12 Inch

Core Depth (IN): 1.34 Inch

Core Material: Aluminum

Inlet Hose Location: Top Left

Inlet Size (IN): 1.46 Inch

Outlet Hose Location: Bottom Right

Outlet Size (IN): 1.46 Inch

Color: Silver

Tank Material: Aluminum

With Radiator Cap: Yes

With Transmission Cooler: No

With Engine Oil Cooler: No

Includes Fittings: Yes

Includes Mounting Hardware: No

Please refer the Technical Bulletins attached to the Product Manual tab

Features

Full Aluminum Construction With Durable, Tig-welded End Tanks
Features A Two-row, Efficient Brazed Aluminum Core
Increased Fluid Capacity And Superior Heat Dissipation
Proven 50 Percent Increase In Radiator Efficiency Compared To The Stock Unit
Provides Optimal Heat Exchange For Both Stock And Forced Induction Vehicles
Direct Fit
Free Replacement For Accidental Damages
Limited Lifetime Warranty

Specifications of Mishimoto Radiator MRADGEN610
Color	Silver
Core Depth (IN)	1.34 Inch
Core Height (IN)	25.12 Inch
Core Length (IN)	19.21 Inch
Core Material	Aluminum
Core Rows	Two Tube
Flow Direction	Cross Flow
Includes Fittings	Yes
Includes Mounting Hardware	No
Inlet Hose Location	Top Left
Inlet Size (IN)	1.46 Inch
Outlet Hose Location	Bottom Right
Outlet Size (IN)	1.46 Inch
Overall Depth (IN)	5.4 Inch
Overall Height (IN)	33.1 Inch
Overall Length (IN)	20.9 Inch
Tank Material	Aluminum
With Engine Oil Cooler	No
With Radiator Cap	Yes
With Transmission Cooler	No
