Mishimoto Radiator MRADF2D11S

Brand: Mishimoto
0 reviews
  • Have a product question? Ask us
  • Part Number: MMRAD-F2D-11S
  • Part Location: U.S.
  • Availability: Special Order
  • Delivery: 2 - 3 Weeks
Retail: $1,863.74
Price: $1,774.99
You Save: $88.75
Color
Silver
Core Depth (IN)
1.96 Inch
Core Height (IN)
39.4 Inch
Core Length (IN)
21 Inch
Core Material
Aluminum
Core Rows
Dual
Finish
Polished
Flow Direction
Cross Flow
Includes Fittings
Yes
Includes Mounting Hardware
Yes
Overall Height (IN)
48 Inch
Share this page

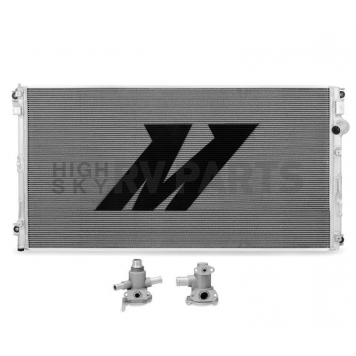

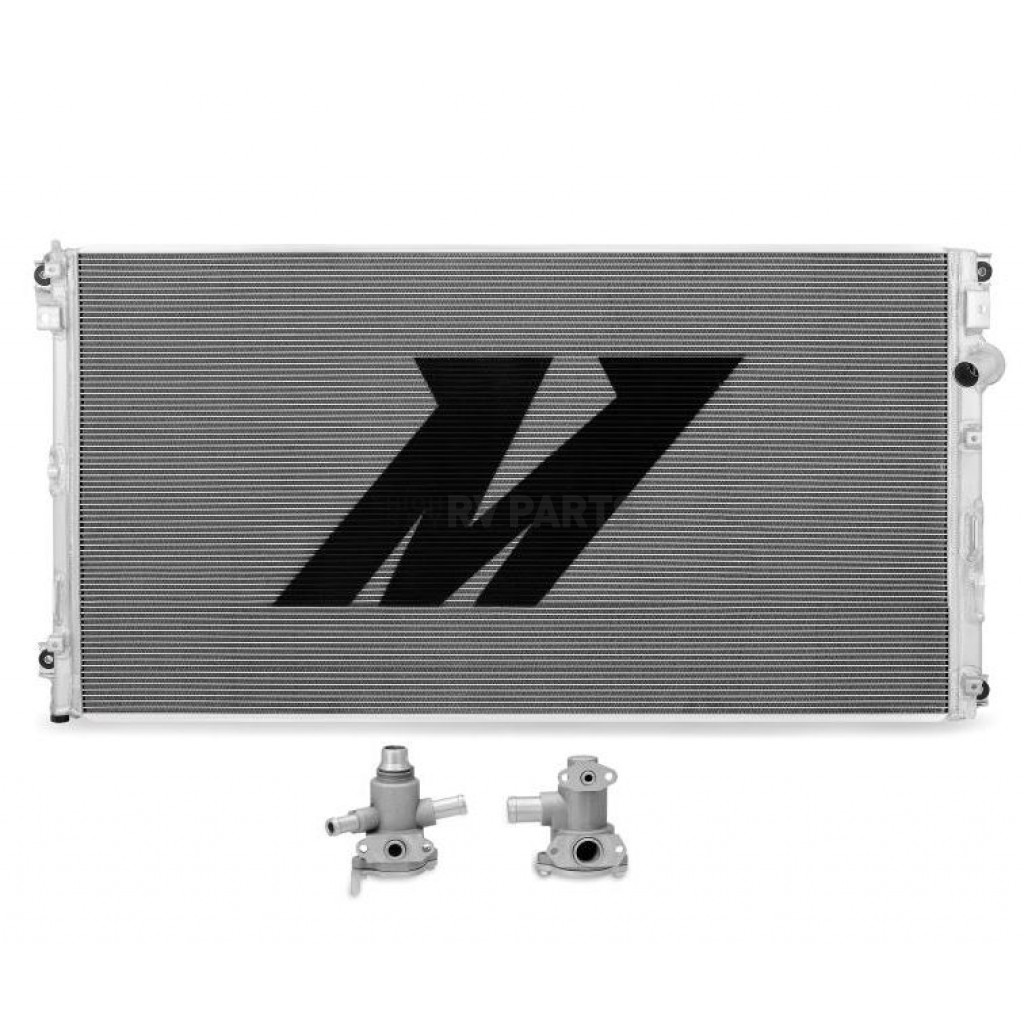

Mishimoto Radiator

Radiator; 22 Inch Length x 48 Inch Height Overall Dimension; 21 Inch Length x 39.4 Inch Height x 1.96 Inch Depth Core Dimension; Dual Core Rows; Crossflow; Aluminum Core; Single; With Magnetic Drain Plug/ Four Bolts/ Two Tree Clips

MPN: MRADF2D11S

Upgrade your truck with the Mishimoto 6.7 Powerstroke Aluminum Secondary Radiator to keep your truck on the road and running cool. The 6.7L Powerstroke has two separate cooling systems, with this radiator cooling the secondary system which maintains ideal Temperatures for the transmission cooler, EGR cooler, fuel cooler, and most importantly, the liquid-to-air charge air cooler. This 6.7 Powerstroke Secondary Radiator is constructed from high-quality aircraft-grade aluminum with a 100 Percent brazed aluminum core 19 Percent thicker than factory. During testing, we saw at coolant Temperature reduction of at least 7 Degree Fahrenheit and a 7 Degree reduction in charge air Temperatures. Our 6.7 Powerstroke aluminum secondary radiator features strong TIG-welded aluminum end tanks for superior durability and longevity that will keep your 6.7 Powerstroke on the road and out of the shop. The Mishimoto Ford 6.7 Powerstroke aluminum radiator retains factory fitment, fitting both the factory and Mishimoto Primary 6.7L Radiator, for an easy installation process.
Flow Direction: Cross Flow
Overall Length (IN): 22 Inch
Overall Height (IN): 48 Inch
Core Rows: Dual
Core Length (IN): 21 Inch
Core Height (IN): 39.4 Inch
Core Depth (IN): 1.96 Inch
Core Material: Aluminum
Finish: Polished
Color: Silver
Tank Material: Aluminum
With Radiator Cap: No
Includes Fittings: Yes
Includes Mounting Hardware: Yes

Features

  • Reduces Coolant Temperatures By Up To 7 Degree Fahrenheit
  • Reduces Charge Air Cooler Temperatures By Up To 6 Degree Fahrenheit
  • Reduces Transmission, Fuel And EGR Temperatures

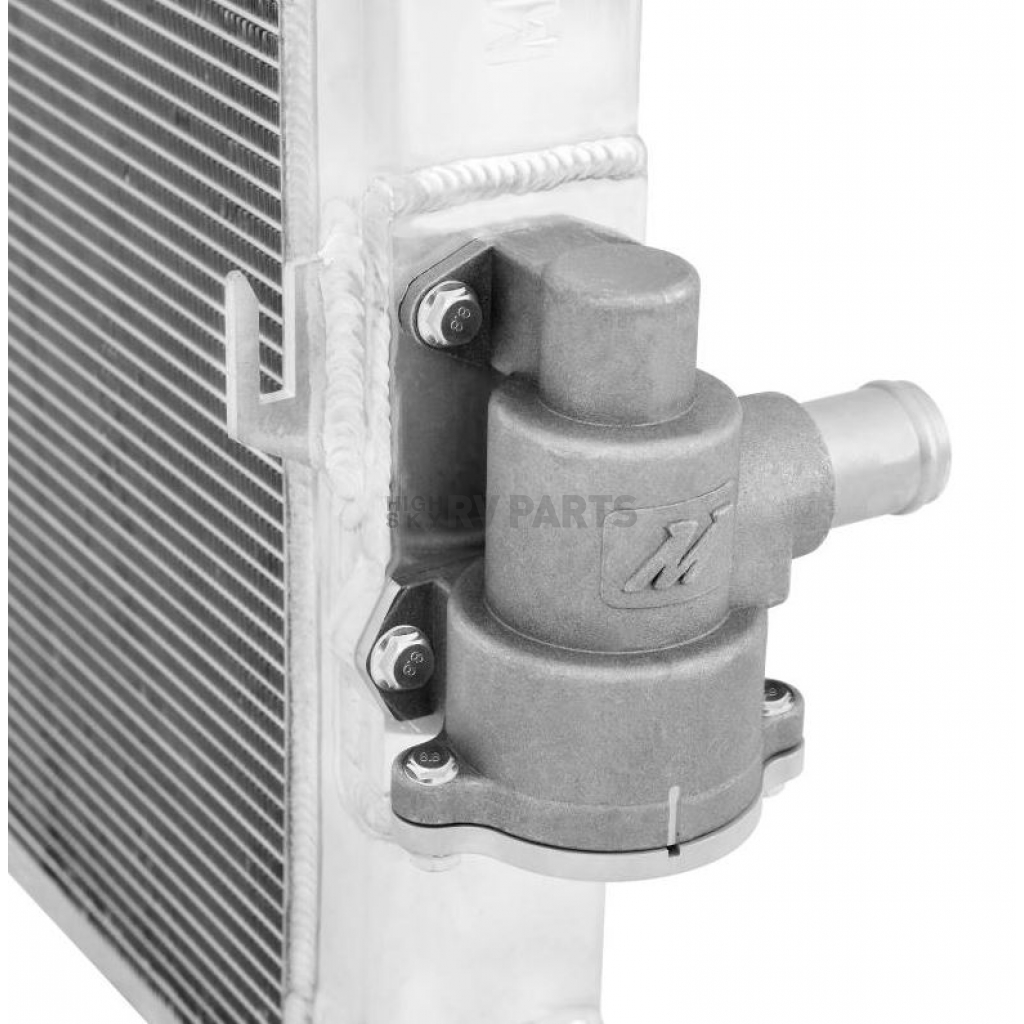

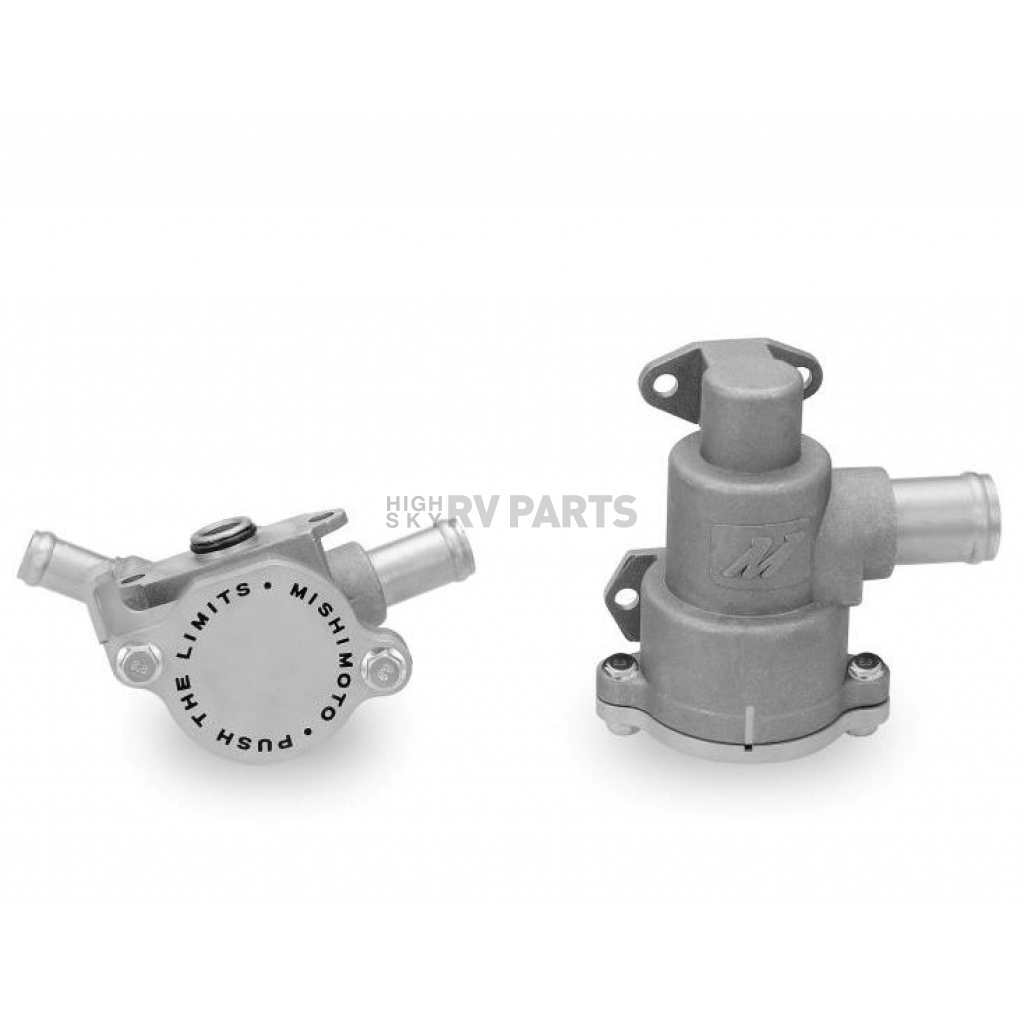

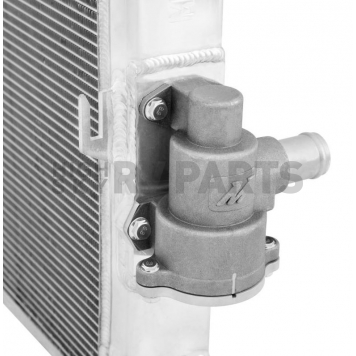

  • Removable Thermostat Housings
  • 27 Percent Increase In Fin Area
  • 19 Percent Thicker Core Than Factory
  • 16 Percent Increase In Cooling Tube Surface Area
  • 100 Percent Brazed Aluminum Core
  • TIG-Welded To Perfection
  • Limited Lifetime Warranty
Specifications of Mishimoto Radiator MRADF2D11S
Color Silver
Core Depth (IN) 1.96 Inch
Core Height (IN) 39.4 Inch
Core Length (IN) 21 Inch
Core Material Aluminum
Core Rows Dual
Finish Polished
Flow Direction Cross Flow
Includes Fittings Yes
Includes Mounting Hardware Yes
Overall Height (IN) 48 Inch
Overall Length (IN) 22 Inch
Tank Material Aluminum
With Radiator Cap No

2011 Ford F-250 Super Duty
2012 Ford F-250 Super Duty
2013 Ford F-250 Super Duty
2014 Ford F-250 Super Duty
2015 Ford F-250 Super Duty
2016 Ford F-250 Super Duty

2011 Ford F-350 Super Duty
2012 Ford F-350 Super Duty
2013 Ford F-350 Super Duty
2014 Ford F-350 Super Duty
2015 Ford F-350 Super Duty
2016 Ford F-350 Super Duty

2011 Ford F-450 Super Duty
2012 Ford F-450 Super Duty
2013 Ford F-450 Super Duty
2014 Ford F-450 Super Duty
2015 Ford F-450 Super Duty
2016 Ford F-450 Super Duty

2011 Ford F-550 Super Duty
2012 Ford F-550 Super Duty
2013 Ford F-550 Super Duty
2014 Ford F-550 Super Duty
2015 Ford F-550 Super Duty
2016 Ford F-550 Super Duty
