Mishimoto Radiator MRAD350Z03
Color
Silver
Core Depth (IN)
1.42 Inch
Core Height (IN)
15-3/4 Inch
Core Length (IN)
28.15 Inch
Core Material
Aluminum
Core Rows
Two Tube
Finish
Brushed
Flow Direction
Down Flow
Includes Fittings
Yes
Includes Mounting Hardware
No
Inlet Hose Location
Top Right
Share this page

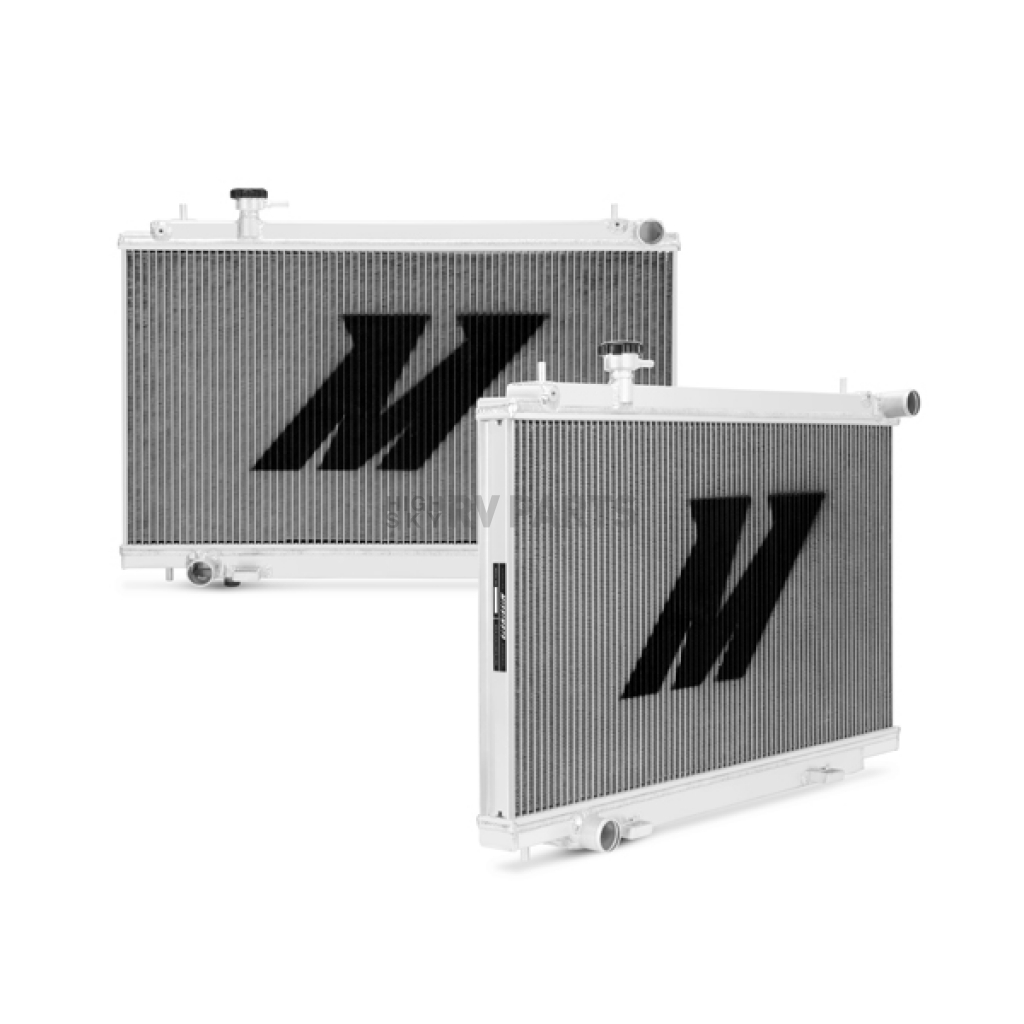

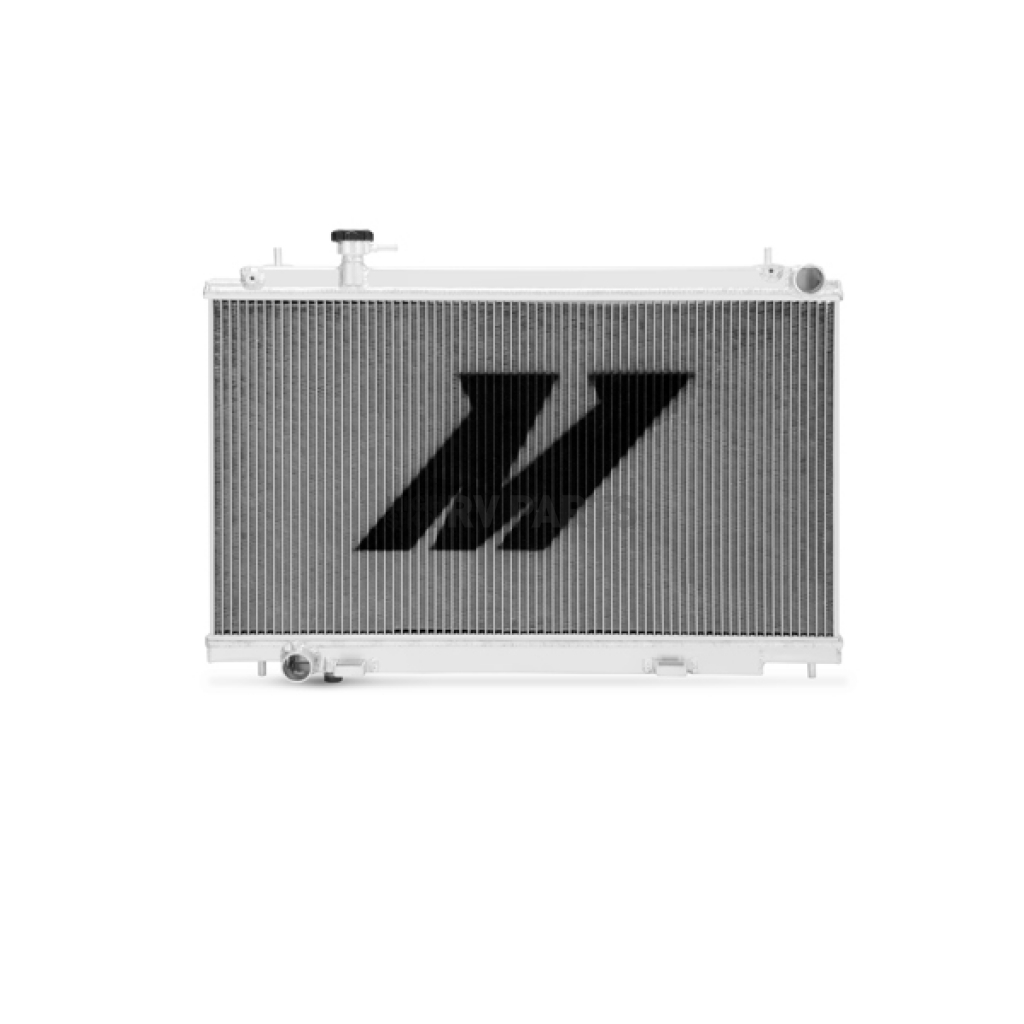

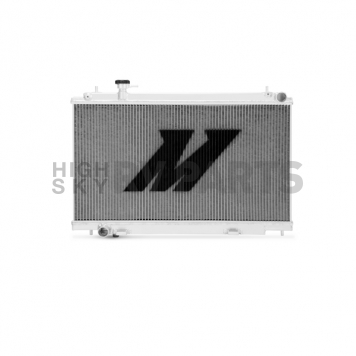

Mishimoto Radiator
Radiator; 29.7 Inch Length x 21 Inch Height x 1.92 Inch Depth Overall Dimension; 28.15 Inch Length x 15.75 Inch Height x 1.42 Inch Depth Core Dimension; Dual Core Rows; Downflow; Aluminum Core With Aluminum End Tanks; 1.4 Inch Inlet X 1.4 Inch Outlet; Single; With Filler Neck/ Radiator Cap/ Magnetic Drain Plug
MPN: MRAD350Z03
Whether you're a daily driver searching for a dependable quality upgrade from your current OEM radiator, or you're a devoted racer who needs a lightweight, high-performance racing radiator, Mishimoto has just what you're looking for. A high-quality aluminum radiator is one of the most important components in your vehicle's engine, and you can trust Mishimoto products, which come with a lifetime warranty! A Mishimoto performance aluminum radiator is the perfect addition to any street, show, or track vehicle. Every Mishimoto aluminum radiator is fully TIG welded for enhanced durability and polished to a mirror finish. An all aluminum radiator provides a significant increase in cooling efficiency, so you can feel confident in increasing the power levels of your vehicle. A Mishimoto racing radiator is so stout that numerous professional drift, time attack, and rally drivers trust their success with our aluminum radiator. Our aluminum radiators are engineered with the performance enthusiast in mind and can withstand rigorous testing. Mishimoto is a brand you can count on to provide the best-quality aluminum radiator.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.
Flow Direction: Down Flow
Overall Length (IN): 29.7 Inch
Overall Height (IN): 21 Inch
Overall Depth (IN): 1.92 Inch
Core Rows: Two Tube
Core Length (IN): 28.15 Inch
Core Height (IN): 15-3/4 Inch
Core Depth (IN): 1.42 Inch
Core Material: Aluminum
Inlet Hose Location: Top Right
Inlet Size (IN): 1.4 Inch
Outlet Hose Location: Bottom Left
Outlet Size (IN): 1.4 Inch
Finish: Brushed
Color: Silver
Tank Material: Aluminum
With Radiator Cap: Yes
With Transmission Cooler: No
With Engine Oil Cooler: No
Includes Fittings: Yes
Includes Mounting Hardware: No
Please refer the Technical Bulletins attached to the Product Manual tab
Features
- Features All-aluminum Construction And Precision Robotic Tig-welding For Consistency And Durability
- Brazed Aluminum Core Capable Of Reducing Coolant Temperatures Significantly
- Features A Subtle Brushed Finish That Complements Any Engine Bay Perfectly
- Direct Fit
- Free Replacement For Accidental Damages
- Limited Lifetime Warranty
| Specifications of Mishimoto Radiator MRAD350Z03 | |
| Color | Silver |
| Core Depth (IN) | 1.42 Inch |
| Core Height (IN) | 15-3/4 Inch |
| Core Length (IN) | 28.15 Inch |
| Core Material | Aluminum |
| Core Rows | Two Tube |
| Finish | Brushed |
| Flow Direction | Down Flow |
| Includes Fittings | Yes |
| Includes Mounting Hardware | No |
| Inlet Hose Location | Top Right |
| Inlet Size (IN) | 1.4 Inch |
| Outlet Hose Location | Bottom Left |
| Outlet Size (IN) | 1.4 Inch |
| Overall Depth (IN) | 1.92 Inch |
| Overall Height (IN) | 21 Inch |
| Overall Length (IN) | 29.7 Inch |
| Tank Material | Aluminum |
| With Engine Oil Cooler | No |
| With Radiator Cap | Yes |
| With Transmission Cooler | No |
2003 Nissan 350Z
2004 Nissan 350Z
2005 Nissan 350Z
2006 Nissan 350Z
2004 Nissan 350Z
2005 Nissan 350Z
2006 Nissan 350Z
