Mishimoto Radiator MMRADTIB01

Brand: Mishimoto

0 reviews

Have a product question? Ask us
Part Number: MMRAD-TIB-01
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by June 25

Retail: $382.19

Price: $363.99

You Save: $18.20

Color

Silver

Core Depth (IN)

1-1/4 Inch

Core Height (IN)

14.76 Inch

Core Length (IN)

25.11 Inch

Core Material

Aluminum

Core Rows

Two Tube

Flow Direction

Down Flow

Includes Fittings

Includes Mounting Hardware

Inlet Hose Location

Top Center

Inlet Size (IN)

1.26 Inch

Share this page

Mishimoto Radiator

Radiator; 27.79 Inch Length x 20.23 Inch Height x 3.6 Inch Depth Overall Dimension; 25.11 Inch Length x 14.76 Inch Height x 1-1/4 Inch Depth Core Dimension; Dual Core Rows; Downflow; Aluminum Core; 1.26 Inch Inlet x 1.26 Inch Outlet; Single; With Magnetic Drain Plug/ Radiator Cap/ Filler Neck

MPN: MMRADTIB01

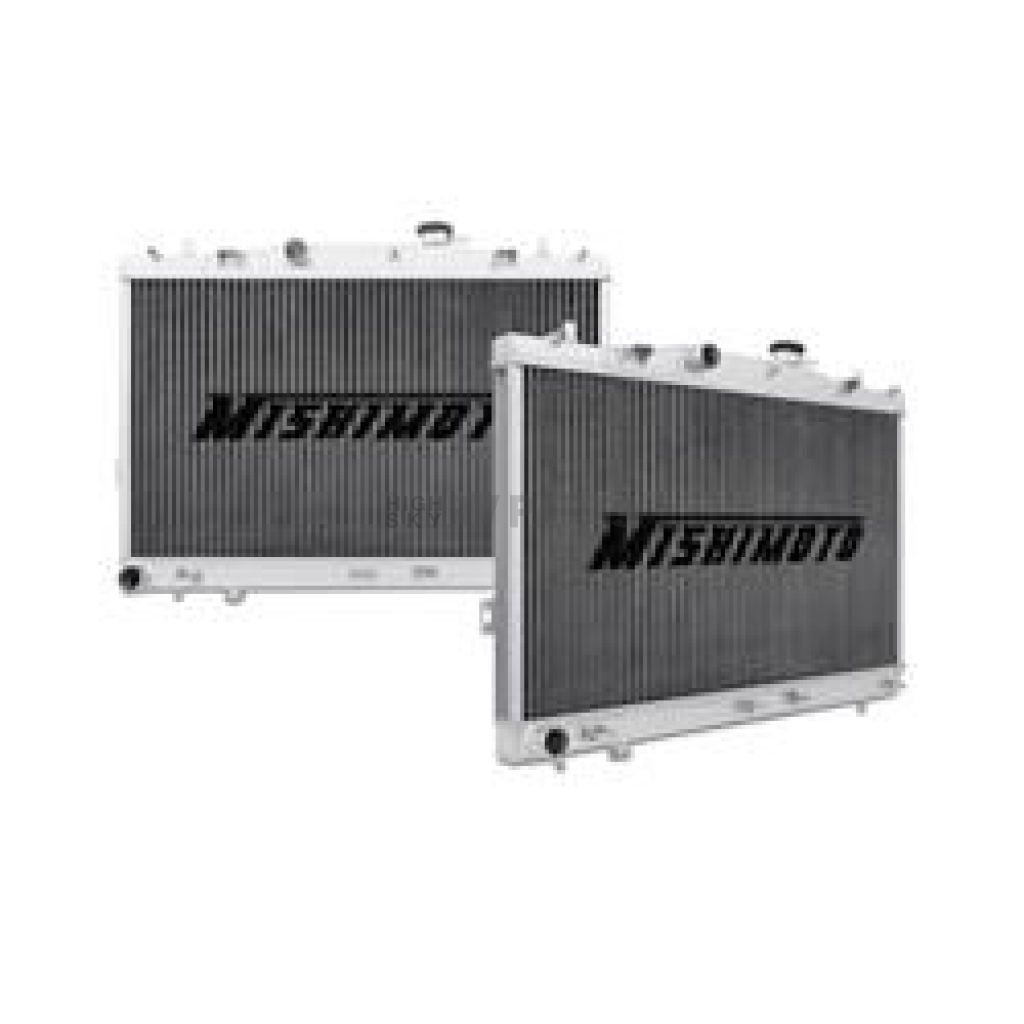

The Mishimoto performance aluminum radiator for the Hyundai Tiburon is the ideal upgrade to the stock Tiburon radiator. Designed and engineered to maximize cooling efficiency by up to 30 Percent, boost engine functions and most importantly protect your car from overheating. The Mishimoto Hyundai Tiburon radiator features a lightweight dual core, 100 Percent brazed aluminum, and polished end tanks. Every Mishimoto Performance Radiator is a direct OEM fit making installation effortless, no cutting or modification is required. As with all of our products this aluminum radiator is protected by the Mishimoto Lifetime Warranty.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.

Flow Direction: Down Flow

Overall Length (IN): 27.79 Inch

Overall Height (IN): 20.23 Inch

Overall Depth (IN): 3.6 Inch

Core Rows: Two Tube

Core Length (IN): 25.11 Inch

Core Height (IN): 14.76 Inch

Core Depth (IN): 1-1/4 Inch

Core Material: Aluminum

Inlet Hose Location: Top Center

Inlet Size (IN): 1.26 Inch

Outlet Hose Location: Bottom Left

Outlet Size (IN): 1.26 Inch

Color: Silver

Tank Material: Aluminum

With Radiator Cap: Yes

With Transmission Cooler: No

With Engine Oil Cooler: No

Includes Fittings: Yes

Includes Mounting Hardware: No

Please refer the Technical Bulletins attached to the Product Manual tab

Features

Full Aluminum Construction Including Durable, Tig-welded End Tanks
Features A Two-row, Efficient Brazed Aluminum Core
Provides Efficient Temperature Reduction For Use On The Street Or Track
Engineered For Use With Both Stock And Highly Modified Vehicles
Increased Fluid Capacity And Optimal Heat Dissipation
Free Replacement For Accidental Damages
Limited Lifetime Warranty

Specifications of Mishimoto Radiator MMRADTIB01
Color	Silver
Core Depth (IN)	1-1/4 Inch
Core Height (IN)	14.76 Inch
Core Length (IN)	25.11 Inch
Core Material	Aluminum
Core Rows	Two Tube
Flow Direction	Down Flow
Includes Fittings	Yes
Includes Mounting Hardware	No
Inlet Hose Location	Top Center
Inlet Size (IN)	1.26 Inch
Outlet Hose Location	Bottom Left
Outlet Size (IN)	1.26 Inch
Overall Depth (IN)	3.6 Inch
Overall Height (IN)	20.23 Inch
Overall Length (IN)	27.79 Inch
Tank Material	Aluminum
With Engine Oil Cooler	No
With Radiator Cap	Yes
With Transmission Cooler	No
