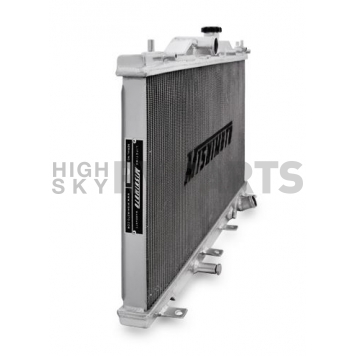

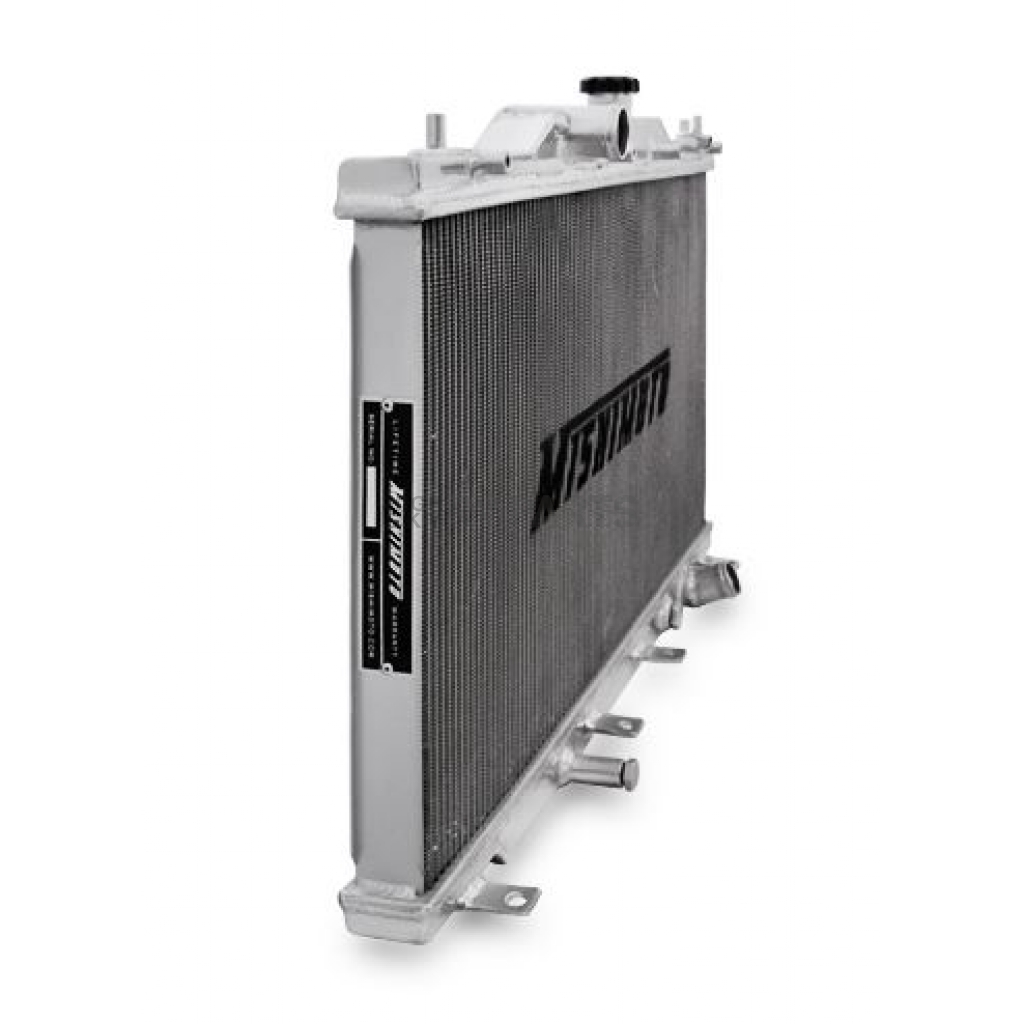

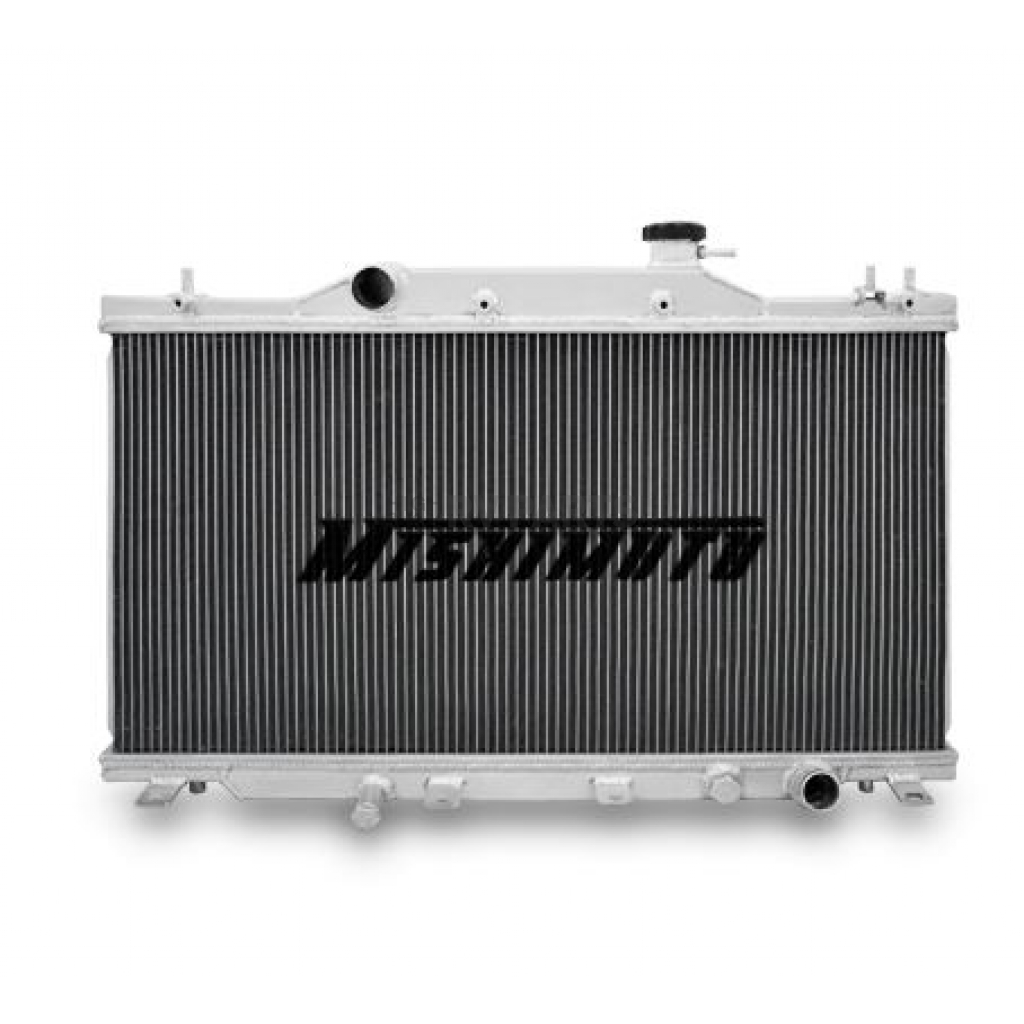

Mishimoto Radiator MMRADRSX02

Brand: Mishimoto

0 reviews

Have a product question? Ask us
Part Number: MMRAD-RSX-02
Part Location: U.S.
Availability: 4 In Stock
Delivery: Ships Out in 1 - 2 Business Days
If purchased before 12:00 EDT - estimated delivery by June 15

Retail: $342.29

Price: $325.99

You Save: $16.30

Color

Silver

Core Depth (IN)

1.4 Inch

Core Height (IN)

13-3/4 Inch

Core Length (IN)

27.52 Inch

Core Material

Aluminum

Core Rows

Two Tube

Finish

Flow Direction

Down Flow

Includes Fittings

Includes Mounting Hardware

Inlet Hose Location

Top Left

Share this page

Mishimoto Radiator

Radiator; 27.6 Inch Length x 18.8 Inch Height x 1.9 Inch Depth Overall Dimension; 27.52 Inch Length x 13-3/4 Inch Height x 1.4 Inch Depth Core Dimension; Dual Core Rows; Downflow; Aluminum Core; 1-1/4 Inch Inlet x 1-1/4 Inch Outlet; Single; With Magnetic Drain Plug/ Radiator Cap/ Filler Neck

MPN: MMRADRSX02

By replacing your current stock RSX radiator with a top of the line Mishimoto performance aluminum radiator, you will immediately notice a cooler more efficient running engine. All Mishimoto Acura RSX radiators are designed and engineered to maximize cooling efficiency, boost engine functions, and most importantly protect your car from overheating. All Mishimoto performance radiators feature a lightweight dual core, 100 Percent brazed aluminum and polished end tanks. The direct OEM fit makes installation effortless and no cutting or modification is required. It is the ideal upgrade to the stock radiator.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.

Flow Direction: Down Flow

Overall Length (IN): 27.6 Inch

Overall Height (IN): 18.8 Inch

Overall Depth (IN): 1.9 Inch

Core Rows: Two Tube

Core Length (IN): 27.52 Inch

Core Height (IN): 13-3/4 Inch

Core Depth (IN): 1.4 Inch

Core Material: Aluminum

Inlet Hose Location: Top Left

Inlet Size (IN): 1-1/4 Inch

Outlet Hose Location: Bottom Right

Outlet Size (IN): 1-1/4 Inch

Finish: Raw

Color: Silver

Tank Material: Aluminum

With Radiator Cap: Yes

With Transmission Cooler: No

With Engine Oil Cooler: No

Includes Fittings: Yes

Includes Mounting Hardware: No

Please refer the Technical Bulletins attached to the Product Manual tab

Features

Full Aluminum Construction Including Durable, Tig-welded End Tanks
Features A Two-row, Efficient Brazed Aluminum Core
Increased Fluid Capacity And Optimal Heat Dissipation
Efficient Temperature Regulation For Both Stock And Modified Vehicles
Provides Efficient Temperature Reduction For Both Street And Track Use
Direct Fit
Free Replacement For Accidental Damages
Limited Lifetime Warranty

Specifications of Mishimoto Radiator MMRADRSX02
Color	Silver
Core Depth (IN)	1.4 Inch
Core Height (IN)	13-3/4 Inch
Core Length (IN)	27.52 Inch
Core Material	Aluminum
Core Rows	Two Tube
Finish	Raw
Flow Direction	Down Flow
Includes Fittings	Yes
Includes Mounting Hardware	No
Inlet Hose Location	Top Left
Inlet Size (IN)	1-1/4 Inch
Outlet Hose Location	Bottom Right
Outlet Size (IN)	1-1/4 Inch
Overall Depth (IN)	1.9 Inch
Overall Height (IN)	18.8 Inch
Overall Length (IN)	27.6 Inch
Tank Material	Aluminum
With Engine Oil Cooler	No
With Radiator Cap	Yes
With Transmission Cooler	No
